GKS G5 Ton, Forklift Jack

by GKS
SKU GK1-10189

G5, Forklift Jack

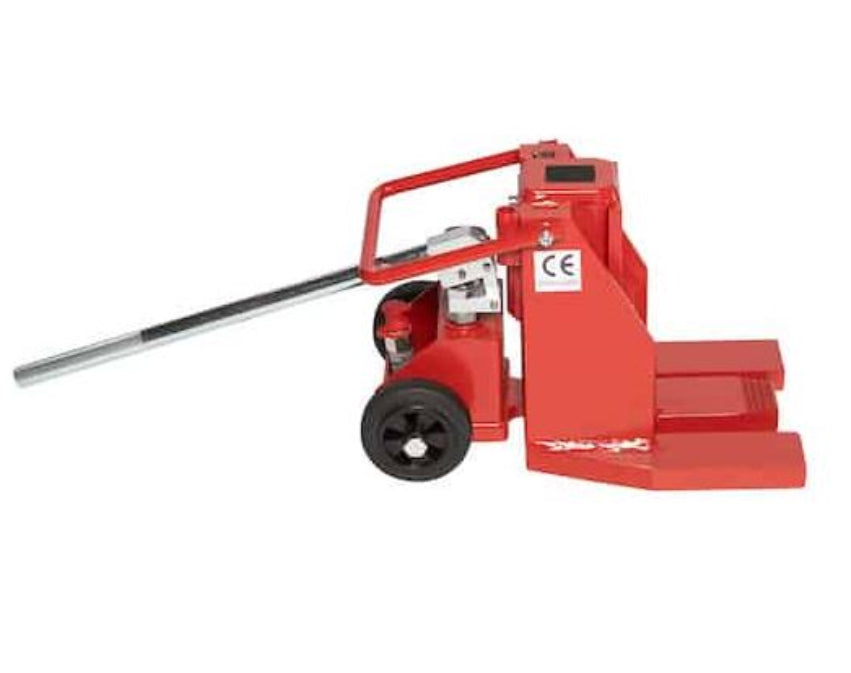

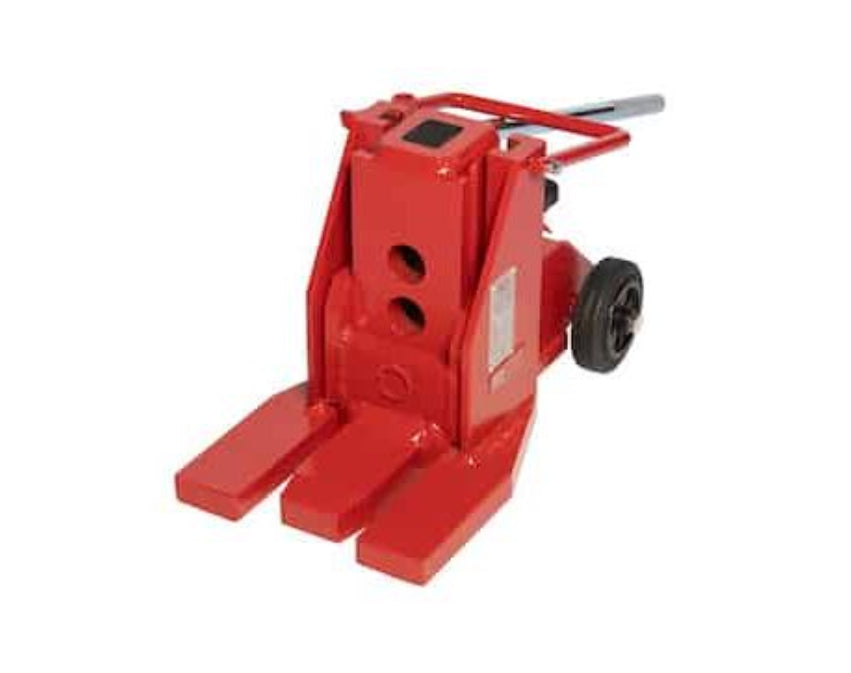

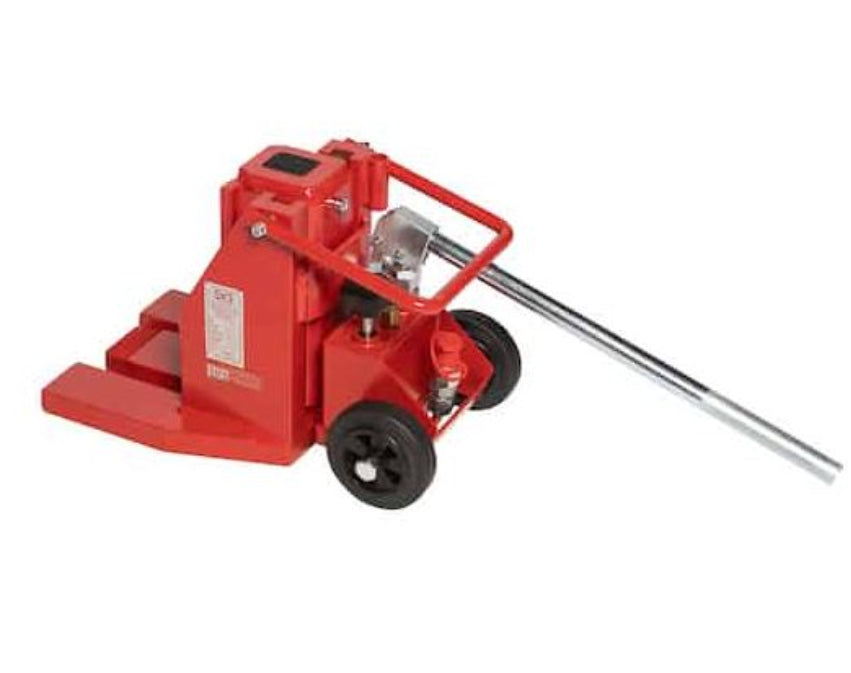

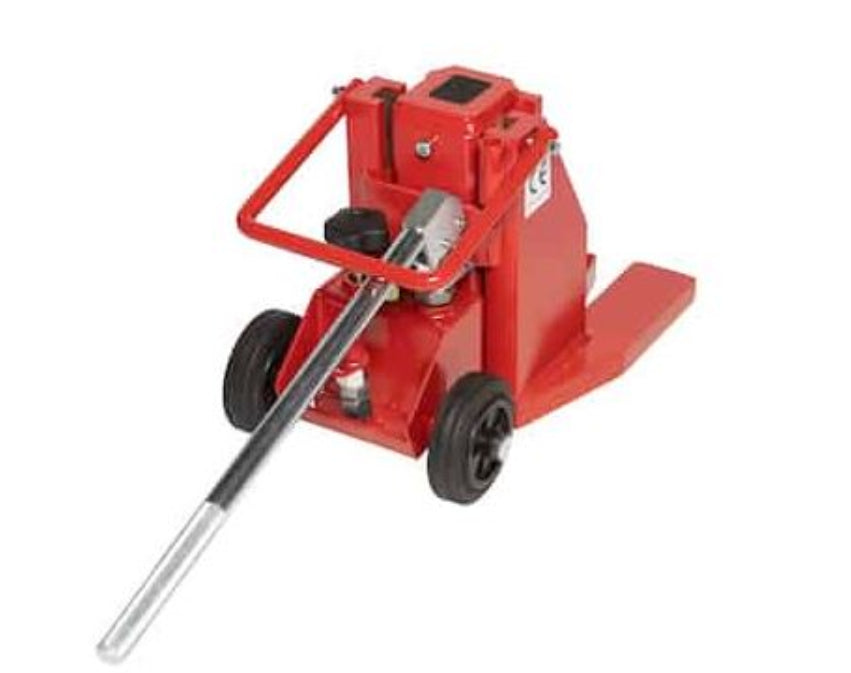

The GKS G5 Forklift Jack is a rugged and reliable lifting solution designed to tackle heavy-duty tasks under 11,000 lbs. (5 tons) with ease. Crafted with forged steel, this hydraulic jack offers exceptional strength and versatility for various industrial applications. Designed with outstanding support and stability, the self-contained hydraulic G5 toe jack features three lift-toe positions. The toe and top plate support the full load capacity, while the release valve facilitates precise and gradual lowering.

The G5 was engineered to operate safely in a variety of different manufacturing facilities, workshops and other sites. Whether the operator is working indoors or outdoors, the safety valve protects against overloading, while the extended reinforced safety toe with grooved surface prevents loads from slipping during loading, transport or unloading.

Product Info Sheet


  • Specially designed for maintenance purposes on forklifts and other industrial vehicles
  • Outstanding stability due to solid feet and an extended grooved safety toe
  • 3 starting positions


  • Weight: 66 lbs.
  • Load Capacity: 11,000 lbs (5 t) 50 kN
  • Working Pressure: 7,542 psi (520 bar)
  • Loading Height: Toe min 1.2" (30 mm)
  • Lifting Height: 5.5" (140 mm)
  • Lift Toe Positions: 3
  • Loading Height: Top plate 10.4" (265 mm)
  • Top Plate (L x W): 2.7 x 2.4" (68 x 60 mm)
  • Dimensions (L x W x H): 15.6 x 10 x 10.4" (397 x 255 x 265 mm)
  • Weight with oil: 66 lbs. (30 kg)
