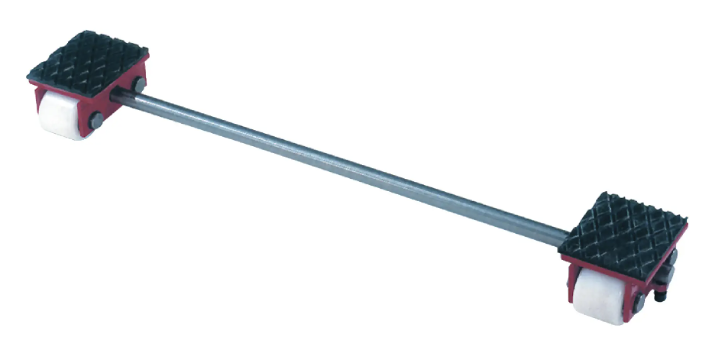

F2 Following Machine Skates
The F2 and L2 Transport Skates are a 3-point dolly pairing designed to facilitate safe, stable, and easy moves in a wide range of settings – manufacturing, rigging, construction, military, and government. The F2 skate is a straight-line skate set in the rear of the load with an adjustable connecting bar.
The L2 offers a turning plate and handlebar for pulling and steering. This lower capacity dolly pairing can transport loads up to 8,800lbs (4 metric tons, 2 metric tons for each F2 and L2). The three-point skate system glides on polyamide rollers providing substantial protection from slipping, even with pulling and tugging, without scuffing or marking floors. Its rollers are replaceable and able to counteract uneven floors, and offer a low loading height of 4in (100mm). The F or L transport skates can also be paired with GKS RL Skates or GKS Tandem TL Skates. A nickel-plated version is available for use in clean rooms in industries like food processing, pharmaceutical, and chemical settings.
F Dollies:
- Straight-line dollies that serve as the rear axle of load-moving systems.
- Features a connection bar that can be adjusted to distribute weight and fit under heavy loads of a wide range of widths.
Features:
- Feature rollers that do not mark floors.
- They range in load capacity from 4,400 lbs. to 132,000 lbs.
- All dollies are available in a nickel-plated version for clean room use in industry sectors such as chip manufacturing, food processing, pharmaceuticals and chemical processing.
Specifications:
- Weight: 27 lbs
- Load Capacity: 4,400 lbs. (2 t) 20kN
- Contact Surface / Cassette: 5.5 x 4.7" (140 x 120mm)
- Loading Height: 4.0" (100mm)
- Roller Amount: 4
- Roller Size: 3 x 2.6" (75 x 66mm)
- Roller Type: 4-10014
- Connecting Bar, Adjustable: 9.5 - 39.3" (240 - 1000mm)
- Dimensions: 7.0 x 39.3" (180 x 240-1000mm)
- Paired with: L2 (3-10205)
Dimension Chart:
