F9 Following Machine Skates

The F9 and L9 Transport Machine Skates is a 3-point dolly pairing designed to facilitate safe, stable, and easy moves in a wide range of settings – manufacturing, rigging, construction, military, and government. The F9 dolly is a straight-line skate set in the rear of the load with an adjustable connecting bar. The L9 offers a turning plate and handlebar for pulling and steering. This mid-size dolly pairing can transport loads up to 39,600lbs (18 metric tons combined, 9 metric tons for each F9 and L9).

The three-point skate system glides on polyamide rollers providing substantial protection from slipping, even with pulling and tugging, without scuffing or marking floors. Its rollers are replaceable, seated in actuating cassettes to counteract uneven floors, and offers a low loading height of 4.3in (110mm). The F or L transport dollies can also be paired with GKS RL Dollies or GKS Tandem TL Dollies. A nickel-plated version is available for use in clean rooms in industries like food processing, pharmaceutical, and chemical settings.

F Dollies:

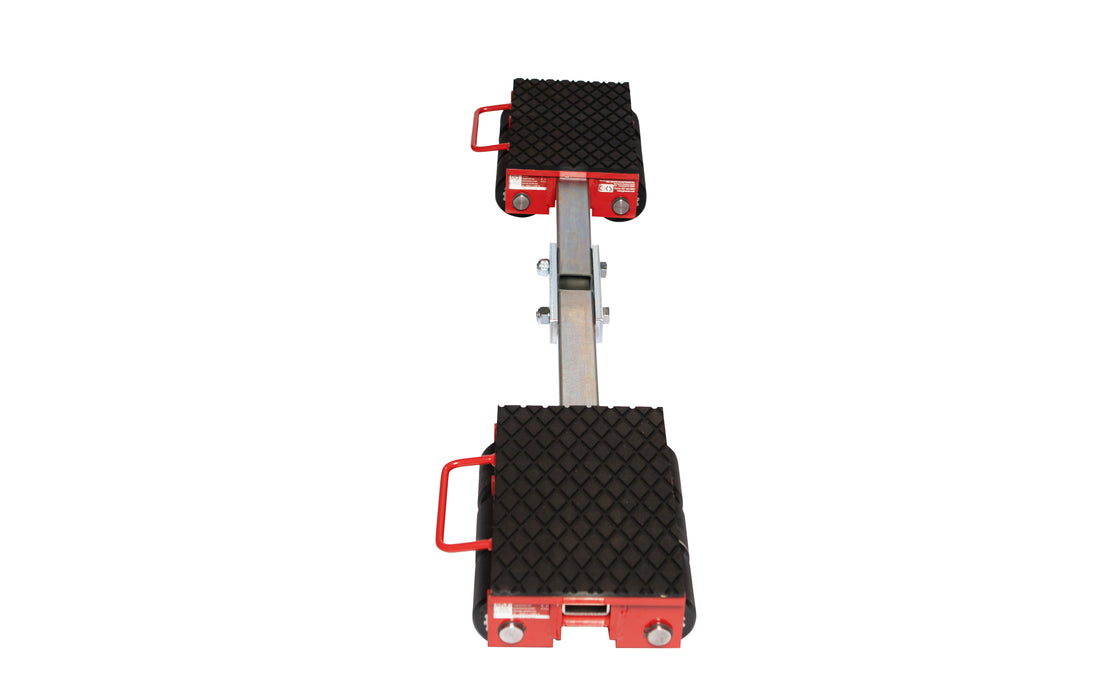

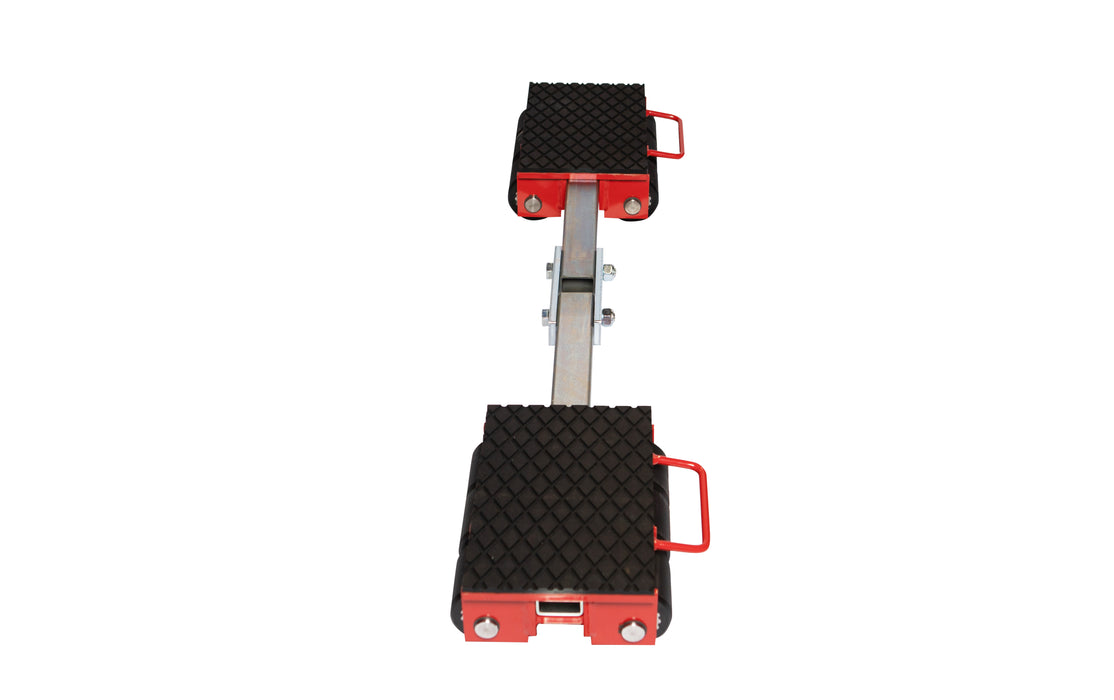

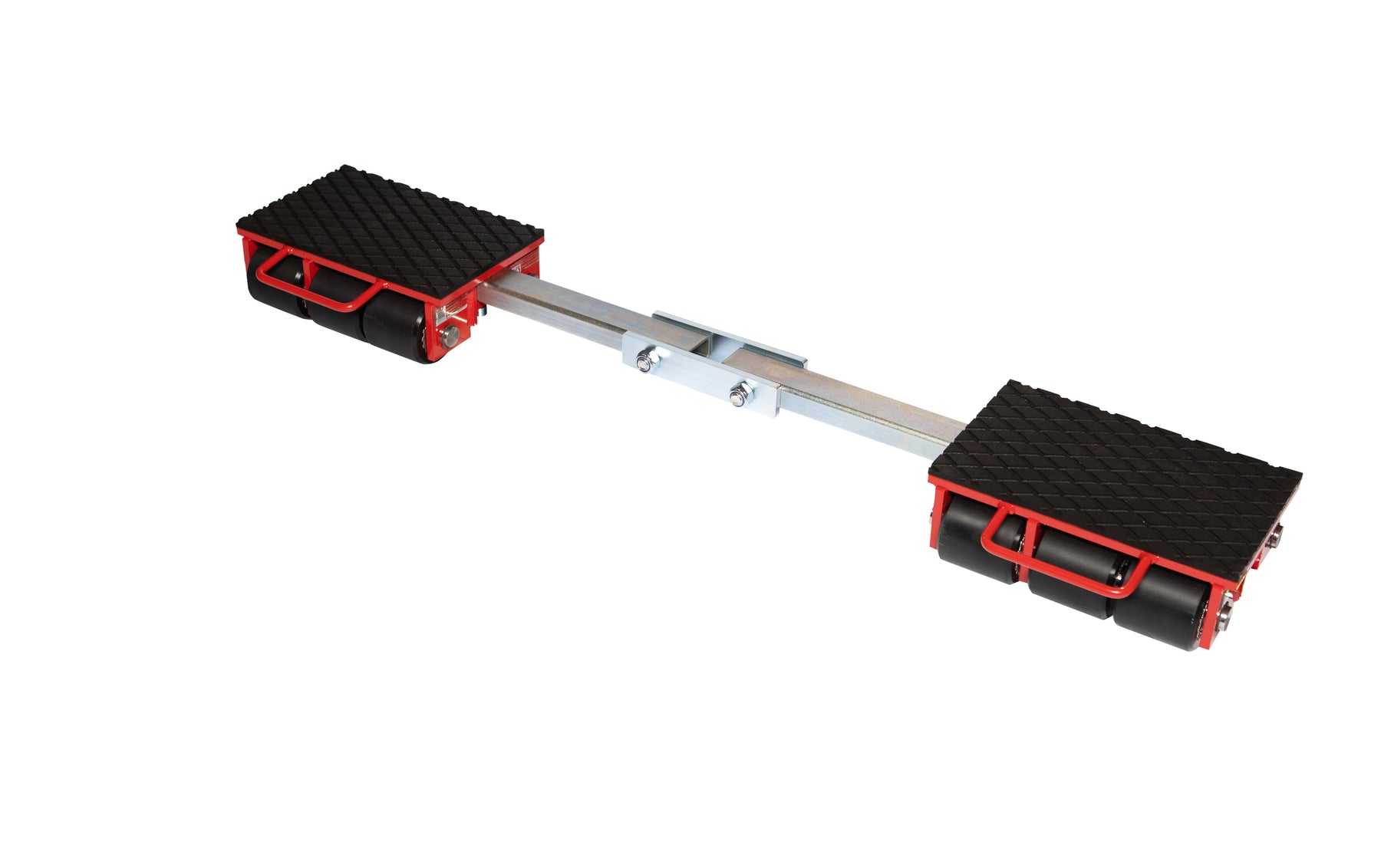

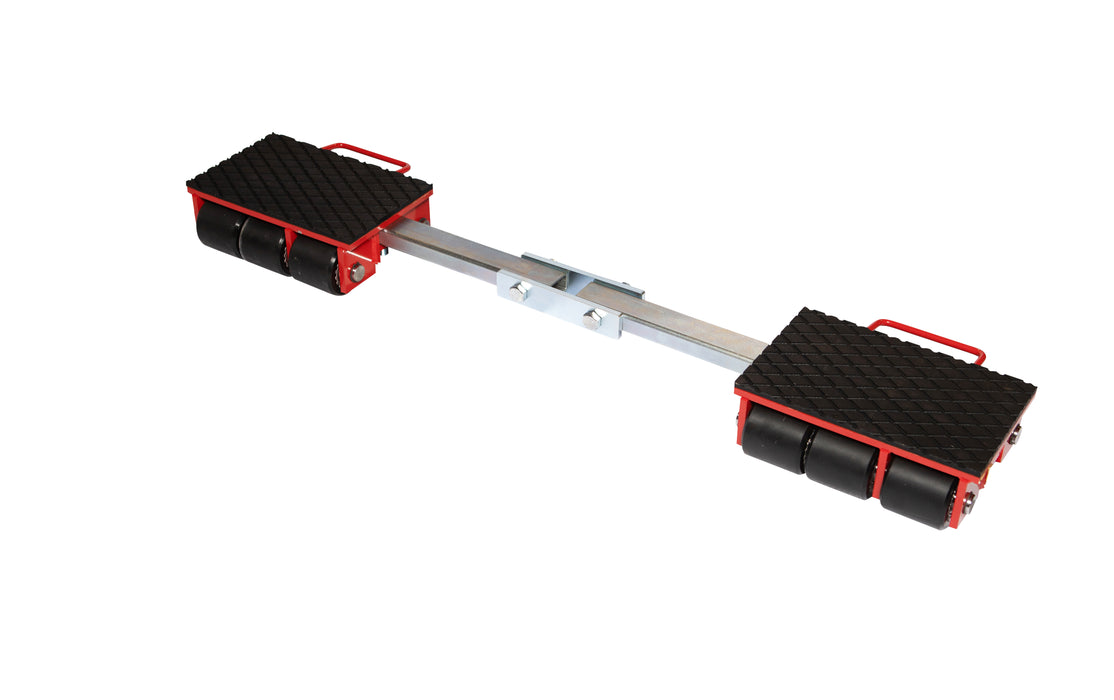

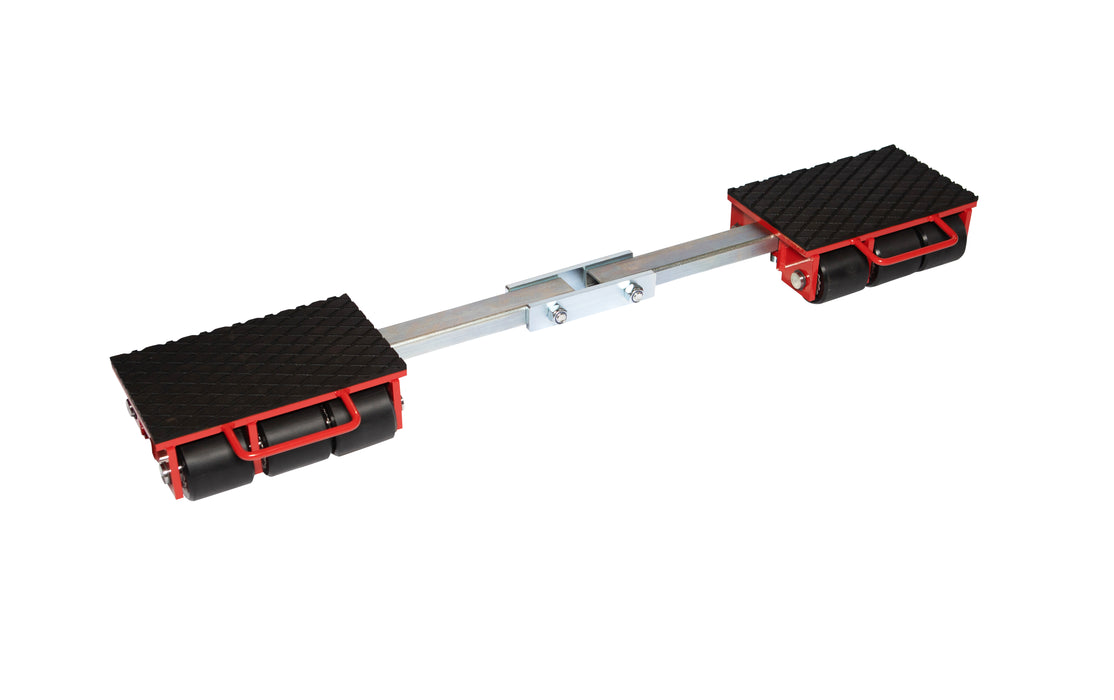

• Straight-line dollies that serve as the rear axle of load-moving systems.
• Features a connection bar that can be adjusted to distribute weight and fit under heavy loads of a wide range of widths.

Features:

• Feature rollers that do not mark floors.
• They range in load capacity from 4,400 lbs. to 132,000 lbs.
• All dollies are available in a nickel-plated version for clean room use in industry sectors such as chip manufacturing, food processing, pharmaceuticals and chemical processing.

Specifications:

• Weight: 95 lbs
• Load Capacity: 19,800 lbs. (9 t) 90kN
• Contact Surface / Cassette: 12.6 x 7.9" (320 x 200mm)
• Loading Height: 4.3" (110mm)
• Roller Amount: 12
• Roller Size: 3.3 x 3.3" (85 x 85mm)
• Roller Type: 4-10015
• Connecting Bar, Adjustable: 33 - 48.4" (840 - 1230mm)
• Dimensions: 7.9 x 48.4" (200 x 1230mm)
• Paired with: L9 (3-11071)
