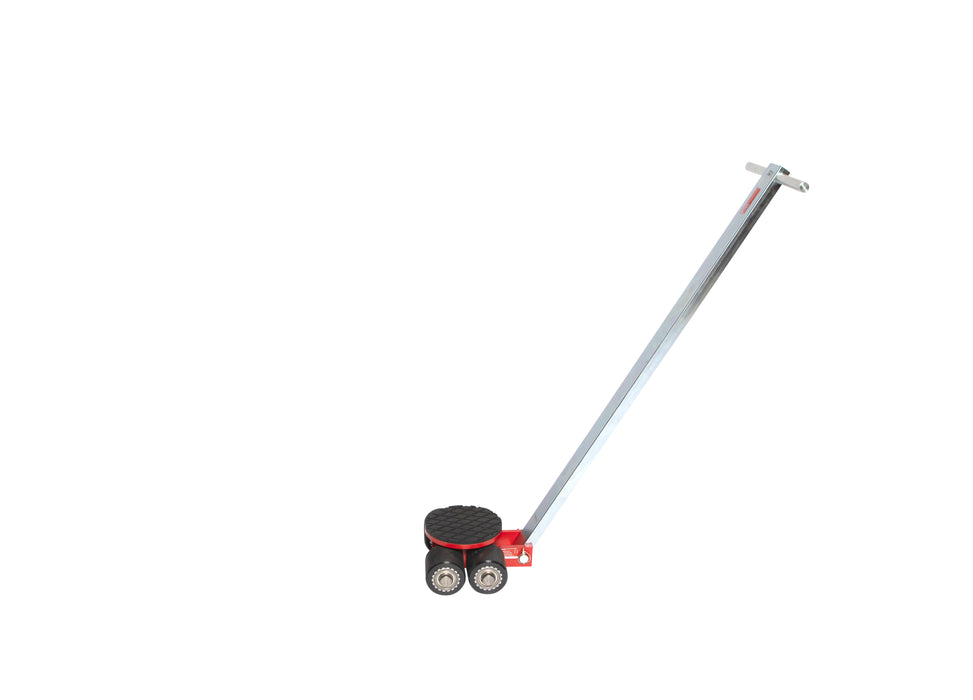

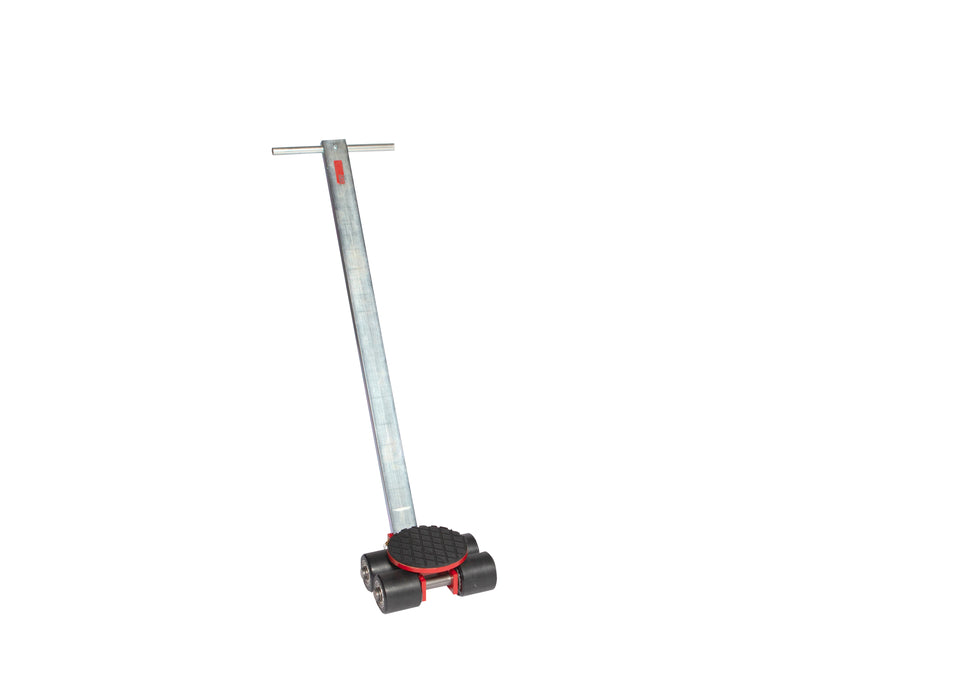

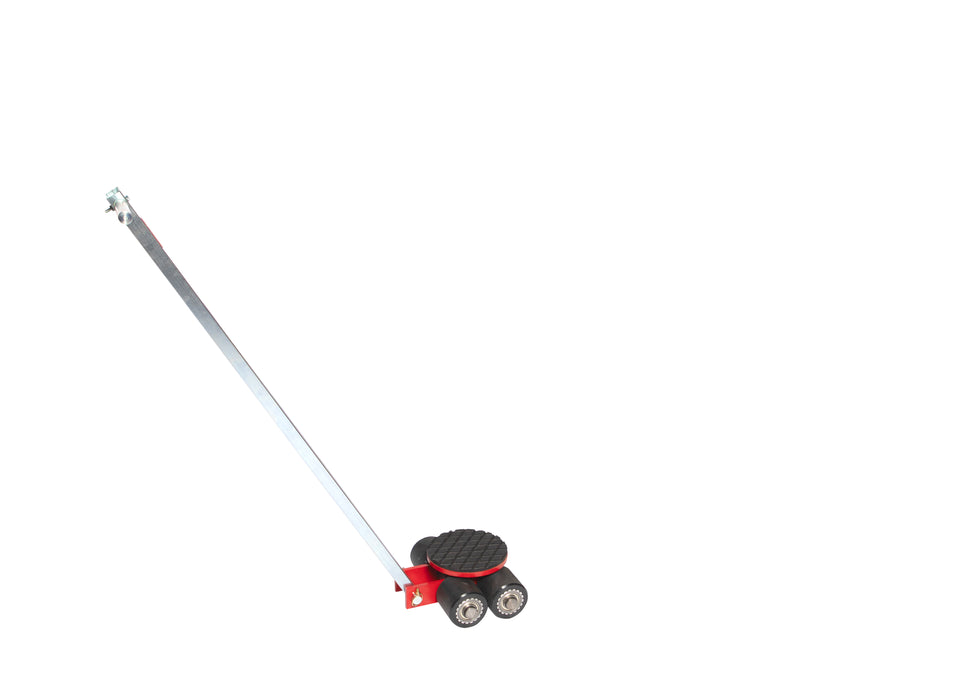

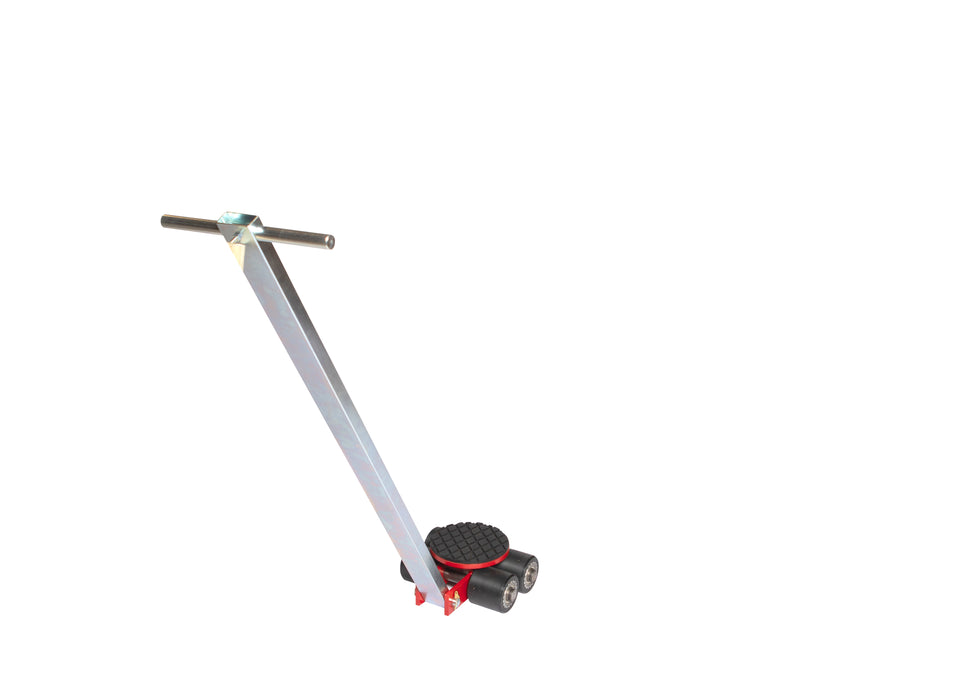

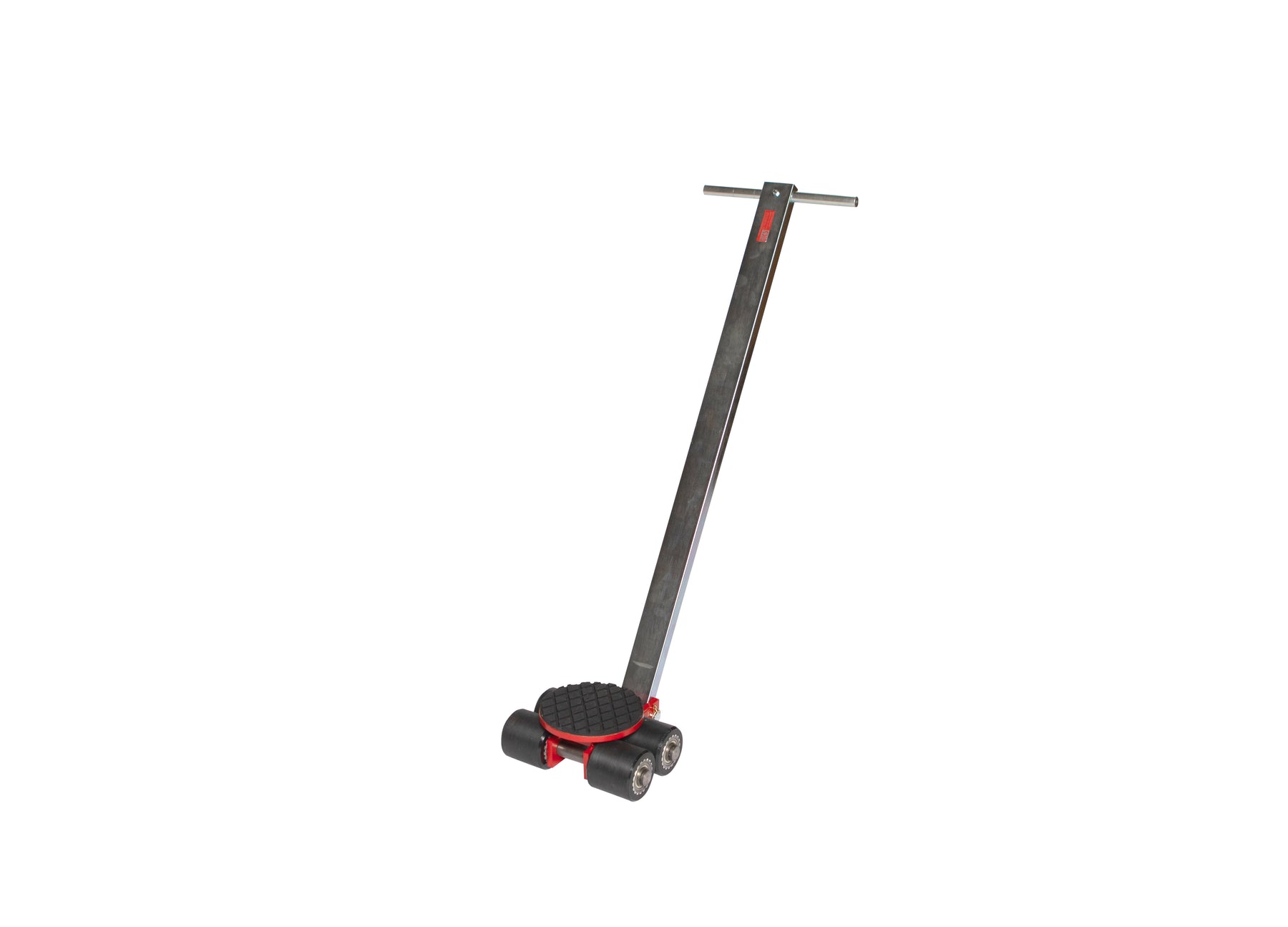

L3 Lead Machine Skate

The F3 and L3 Transport Skates are a 3-point dolly pairing designed to facility safe, stable, and easy moves in a wide range of settings: manufacturing, rigging, construction, military, and government. The F3 dolly is a straight-line skate set in the rear of the load with an adjustable connecting bar. The L3 offers a turning plate and handlebar for pulling and steering. This lower capacity skate pairing can transport loads up to 13,200lbs (6 metric tons combined, 3 metric tons for each F3 and L3).

The three-point skate system glides on polyamide rollers providing substantial protection from slipping, even with pulling and tugging, without scuffing or marking floors. Its rollers are replaceable and able to counteract uneven floors, and offers a low loading height of 4.3in (110mm). The F or L transport skates can also be paired with GKS RL Skates or GKS Tandem TL skates. A nickel-plated version is available for use in clean rooms in industries like food processing, pharmaceutical, and chemical settings.

L Dollies:

• Feature a swivel top and tow eye for safe front steering support of load-moving systems.
• The low profile keeps loads close to the ground for a safe, low center of gravity and low head clearance.
• Three-point dolly system is made not to slip out, even under pulling and tugging forces.
• ASME Certified.

Features:

• Feature rollers that do not mark floors.
• They range in load capacity from 4,400 lbs. to 132,000 lbs.
• All dollies are available in a nickel-plated version for clean room use in industry sectors such as chip manufacturing, food processing, pharmaceuticals and chemical processing.

Specifications:

• Weight: 27 lbs
• Load Capacity: 6,600 lbs. (3 t) 30kN
• Swivel Plate/Steering Angle: ∅ 6.7" (170mm) ± 90°
• Loading Height: 4.3" (110mm)
• Roller Amount: 4
• Roller Size: 3.3 x 3.3" (85 x 85mm)
• Roller Type: 4-10015
• Dimensions: 9.4 x 10.6" (238 x 270mm)
• Paired with: F3 (3-10206)
