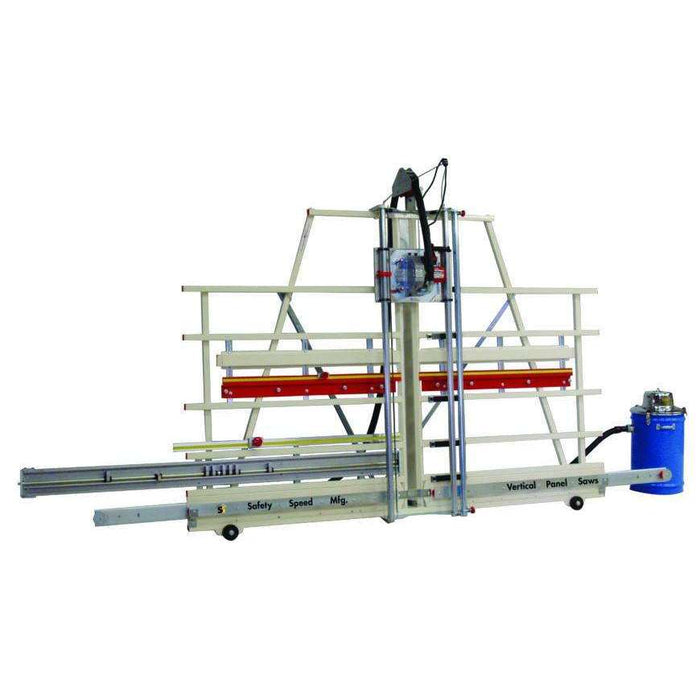

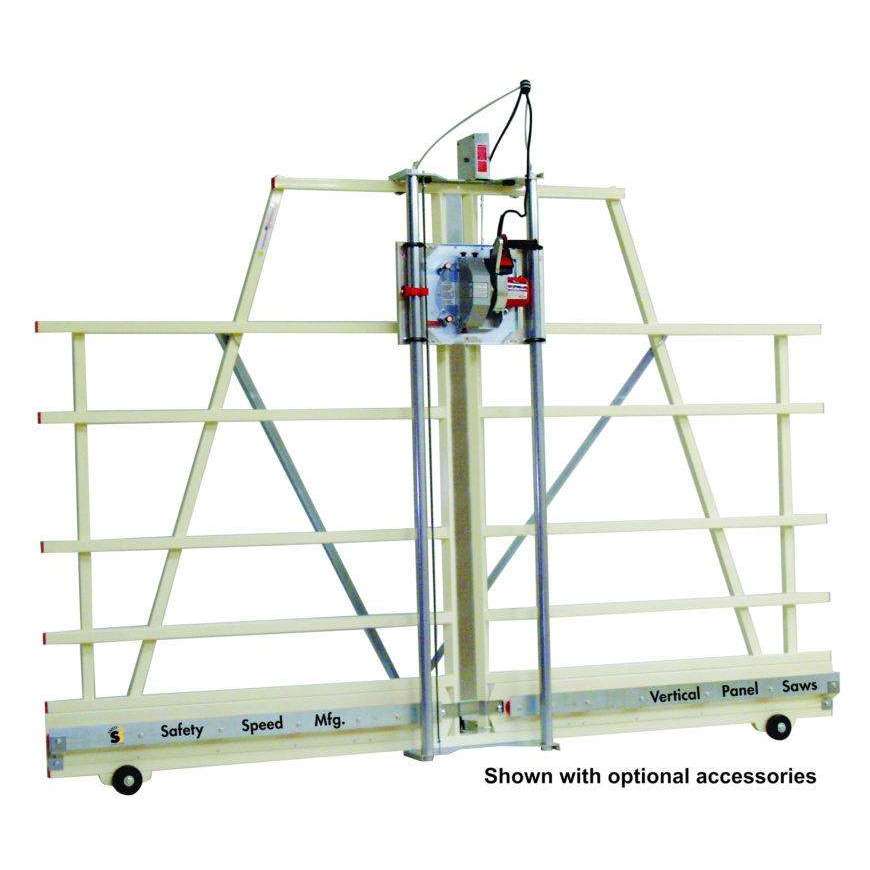

H5 Vertical Panel Saw

$2,697.00

The popular H5 panel saws are ideally suited for customers looking for a full sized vertical panel saw at a very affordable price. This saw has a crosscutting height of 64″ while delivering an accuracy of 1/32″ straight and square. With 3-1/4HP industrial motors, these versatile saws are used in a variety of panel cutting operations.

Standard Equipment

  • 3-1/4HP, 15 amp industrial duty saw motor.
  • Zinc plated 1 ¾”steel guide tubes.
  • 4 Nylatron roller bearing systems.
  • Adjustable vertical and horizontal rulers.
  • Quick change from vertical to horizontal cutting.
  • Thin material pressure guard.
  • Injection-molded plastic material rollers.
  • Spring loaded counter balance system.
  • Integrated dust collection bonnet.
  • Extended warranty.
  • TUV certified to UL/CSA standards

Technical Data

Max. Crosscut 64"/1625mm
Max. Rip Cut Unlimited
Max. Cut Thickness 1 3/4"/45mm
Cut Accuracy, Straight and Square 1/32"/.8mm
Saw Blade Diameter 8"/210mm
Motor 15 amp, 120V, 220V
Frame Length 120"/3050mm
Product shipping information
Weight 298 lbs
Dimensions 120 × 11 × 83 in

Video
