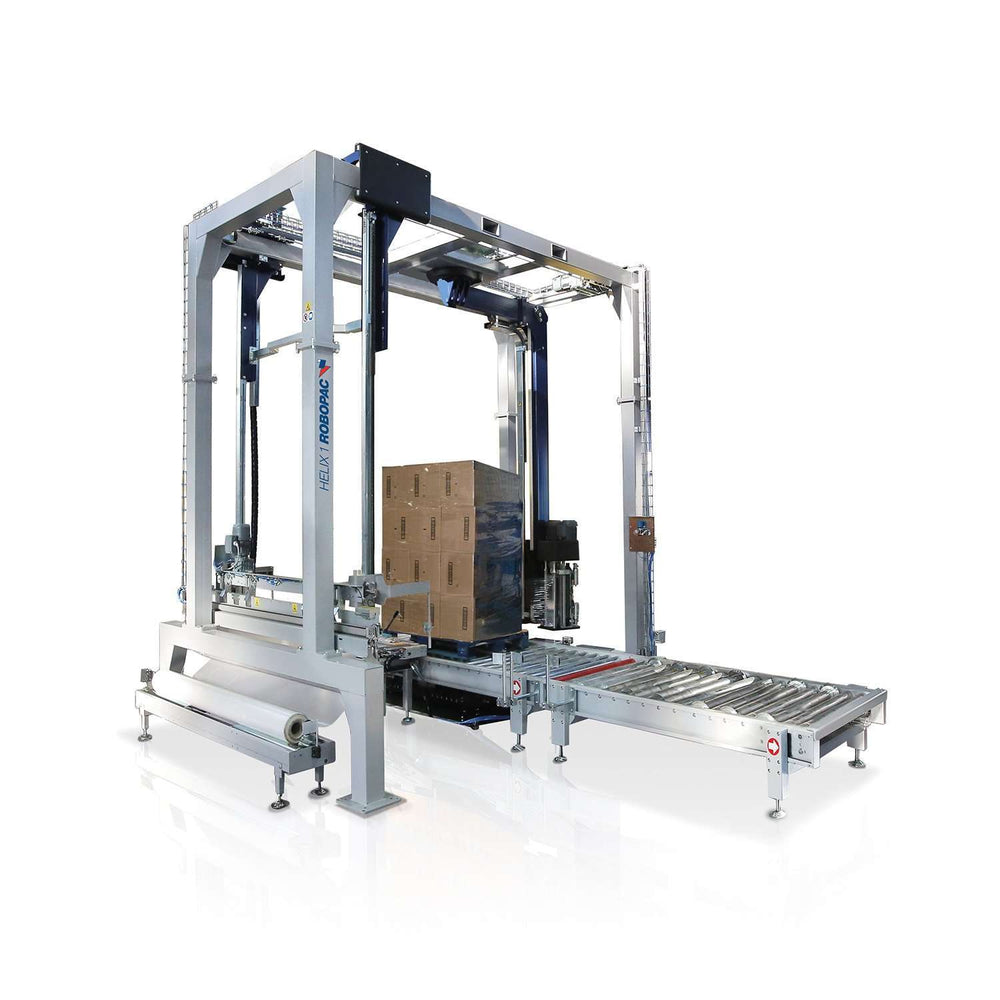

Helix 1 EVO Automatic Stretch Wrapper

by RoboPac
$0.00

The Helix 1 EVO is an automatic rotary arm style stretch wrapper designed to provide a rugged, flexible and high capacity automatic stretch wrapping solution.

Robopac’s commitment to provide “Innovation Driven by Value” ensures the Helix 1 EVO offers the highest level of technology in this range of equipment.

The Helix 1 EVO is a 20 RPM machine that is capable of reaching up to 65 pallet loads per hour. This machine is available with many useful options like: 30” Film Carriage, Roping, Top Cover Placement, Top Pressure Hold Down, Pallet Lifter, Auto Corner Board Placement and R-Connect®.

If you are looking to increase productivity and lower TCO, the Helix 1 EVO is the right stretch wrapping machine for you!

With CUBE® Technology!

Our innovative CUBE® Technology offered on this machine combines the following four (4) key factors to successfully wrap loads & ensure that they reach your customer in “as-made” condition by maintaining proper wrapping standards.

  1. Multi-Level Variable Pre-Stretch ensures the best film economy & delivers 30-55% film savings.
  2. Multi-Level Variable Containment Force delivers optimal containment force at each level of the load.
  3. Pro-Active Corner Compensation enables you to wrap any load securely without corner damage or repetitive film breaks.
  4. Strategic Film Placement allows you to place film exactly where it has the most impact on load stability and containment.

R-Connect® Ready!

R-Connect®, available for this machine is our latest innovation was developed to provide usage and performance data via the cloud, enabling you to meet Industry 4.0 demands by putting performance monitoring & optimization at your fingertips. Utilization drastically reduces downtime by giving you informational transparency, allowing you to connect with your machines remotely to investigate alarms, adjust parameters, & respond promptly. This Industry 4.0 innovation empowers you with actionable insight to continuously improve performance, cost savings, & automation.

Technical Data

Performance
Loads/HR 60
RPM 20
Load Capacity
Max Load Dimensions (W X L X H) 48 x 48
Machine Structure
Frame Construction Painted Metal
Film Delivery System
Operator Interface
Wrapping Menus 16
Utility Requirements
Electrical RITTAL CABINET
Pneumatics FESTO
Safety Features
CE Safety-Cat 3 YES
UL 508A Compliant YES

Features

16 Standard Wrapping Programs
16 standard wrapping menus allow you to easily select the best wrapping pattern for your loads and consistently repeat in less time.

Warranty
Written guarantee to repair or replace the machine if necessary within 1, 3, or 5 years.

Category 3 Safety
System is designed so that a single fault in any of its parts does not lead to the loss of a safety function. Sick M-4000 Light Curtains. Electric Dump Valve. Category 3 Safety Circuits. Robopac Rapid Support. External Panel Access.

Color Graphic Display
The new color graphic display makes it easy to set up the correct parameters for wrapping each of your loads. You control pre-stretch, containment force, rotation speed, roping and banding at 9 levels on each load.

Conveyor Infeed & Outfeed
Conveyors extend the length of the machine, making it easier to handle your loads. Wrap zone in addition to infeed and outfeed conveyor available, for a complete system.

Cube® "SMART Stretch Wrapping" Technology
Innovative technology that combines multi-level variable pre-stretch, multi-level variable containment force, pro-active corner compensation, and strategic film placement to successfully wrap loads & ensure that they reach your customer in as-made condition by maintaining proper wrapping standards.

Auto Film Clamp
Highly reliable, dual rod cutting system fully automates the wrapping process.

Auto Film Break Alarm
Detects and alerts upon film break.
AVAILABLE OPTIONS
30" Film Carriage
Air Conditioning
Automatic Corner Board Placement

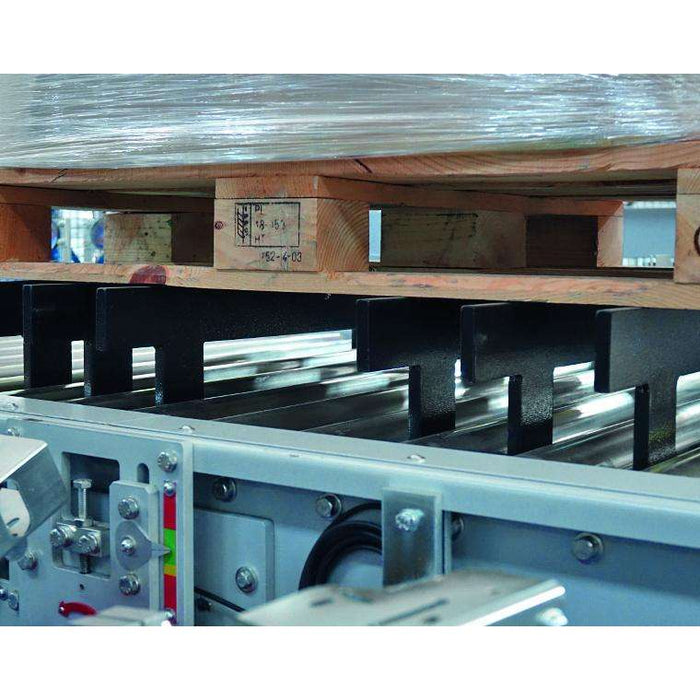

Pallet Lifting Device
Roping Device
Scale Package
Self Centering Devices

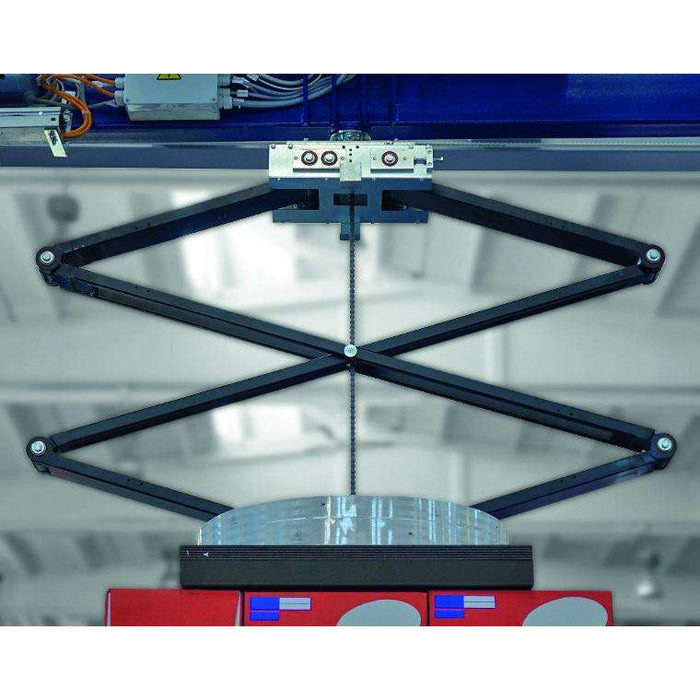

Top Platen Hold Down

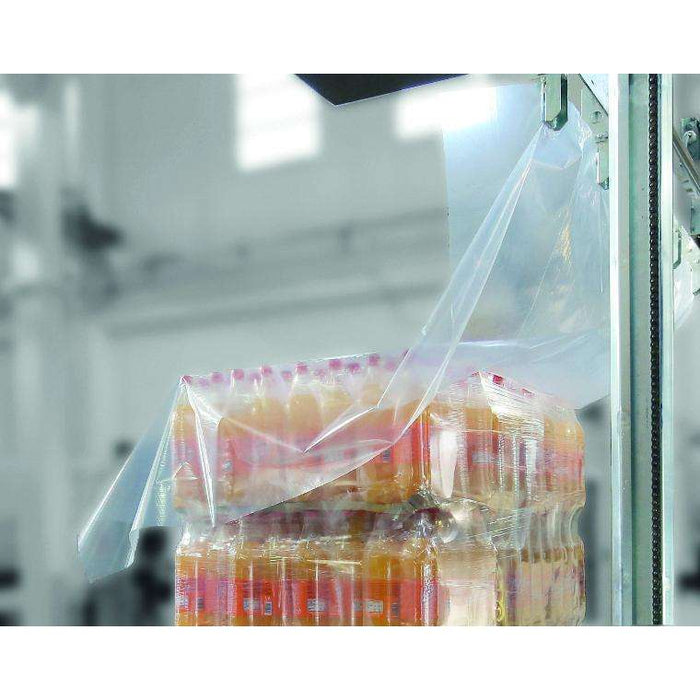

Top Sheet Inserter

Advantages

Better Load Containment
Field Proven Technology
Reduced Film Consumption
Reduced Product Damage
Reliable Load Height Sensing
Ideal for Any Industry
