Clamping Capacity 100″L x 50″H x 24″D

  • Clamping (3) Top Dual Pod Pressure Bars and (2) Side Dual Pod Pressure Bars
  • 30 Second Set-up / Changeover Time
  • Heavy Duty Quality Construction
  • Manufactured in the U.S.A.

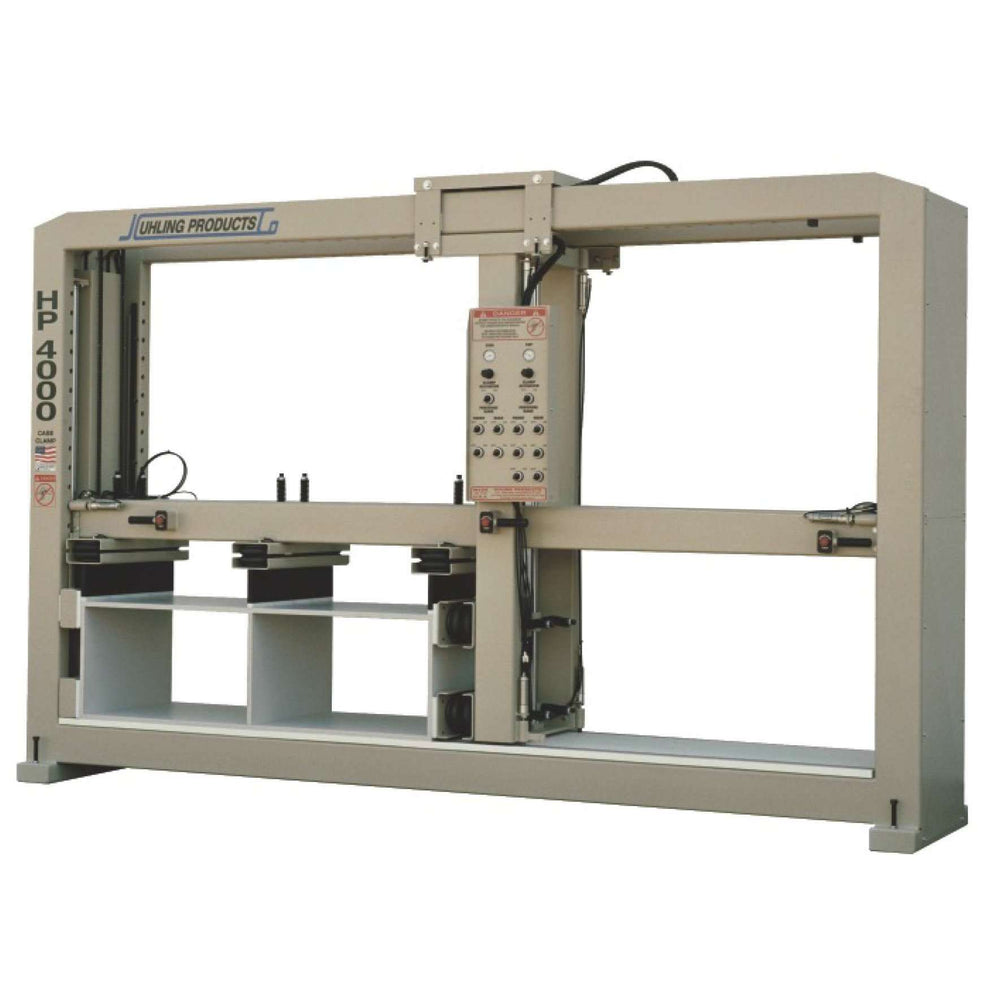

The HP 4000 is our most versatile quick and easy to use Case Clamp. It’s unprecedented counterweight balanced horizontal carriage and roller bearing mounted vertical carriage design make it the fastest operating two (2) axis clamp on the market. The speed and ease of its manual positioning are what make it faster to operate than any motorized or automatic clamp. Its clamping capacity is 100″ long x 50″ tall x 24″ deep that when coupled with its two axis design make it versatile for most any clamping requirement.

Feature Benefit
100″ Long x 50″ High x 24″ Deep clamping capacity. Versatile wide range clamping envelope. Can allow for multiple unit clamping. Clamps cabinets in horizontal plane.
Three (3) counterweight balanced and two (2)side dual pod pressure bars. Additional pressure bars optional. Allows you to apply pressure directly over the joint thus resulting in a better joint. Clamps cabinets standing up or laying down depending on height.
Roller bearing mounted carriage with pneumatic locks and counterweight balanced horizontal carriage with pneumatic locks. Manually positioned. Allows for the fastest set-up and changeover of any two (2) axis clamp on the market including any and all automated clamps. Very simple and easy.
Fixed cornered pressure bars. The four (4) corner pressure bars are fixed reducing set-up and changeover time and increasing productivity. Only the middle pressure bar on the top carriage needs to be manually positioned.
Two (2) axis clamping. Allows you to clamp cabinets laying down, first by justifying them into the corner, then by applying pressure down on the joints.
Heavy duty steel and quality construction. Allows for years of continuous trouble free use.
Solid floor and back support for all pressure bar settings. Allows for a quick and easy set-up and changeover.
Carriage mounted operators panel. Allows for quick access to controls.
Simplicity and user friendliness. Reduces training, operator error and fatigue thus increasing productivity and improving employee moral.
25 second set-up/30 second changeover. Faster than any other two (2) axis clamp on the market resulting in less operator fatigue and more productivity.
No electrical requirements. Simpler to operate and more trouble free.
Shipped fully assembled. Less set up required.
Custom manufacturing available. Allows you to purchase a clamp that will meet your specific requirements.
