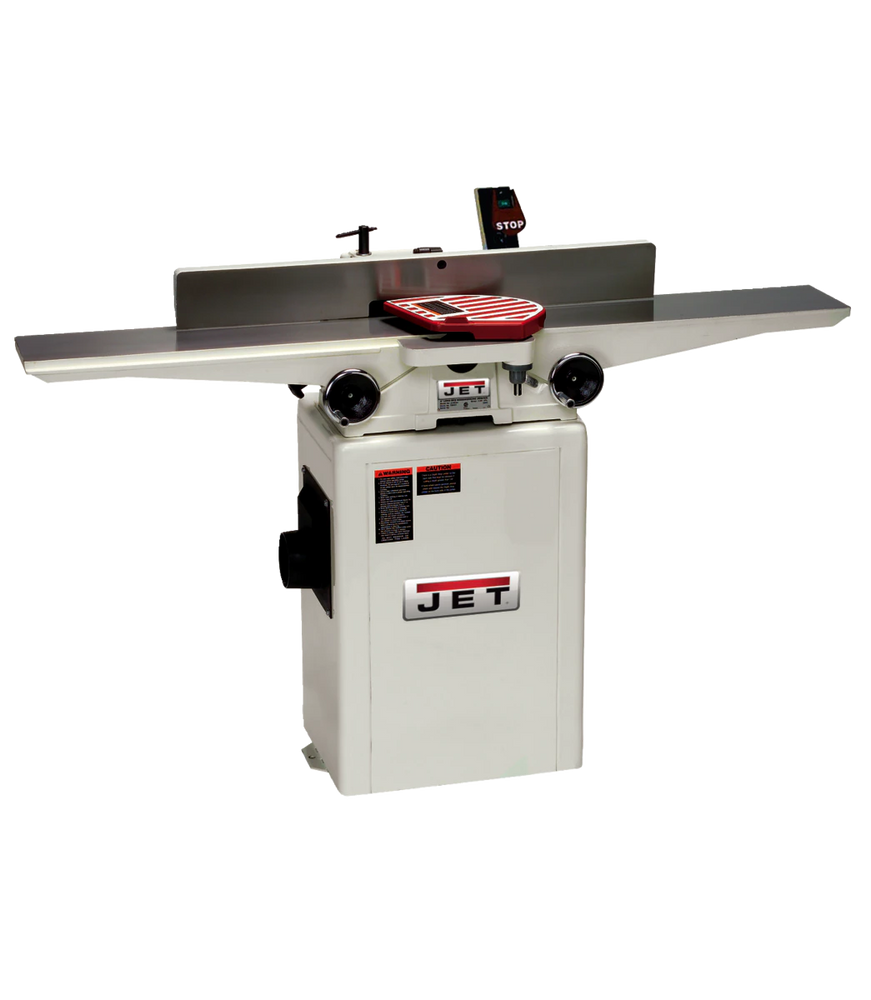

- Three high-speed steel quick change knives provide rapid cutting, a superior finish and eliminates the need for a knife setting gauge
- Extra-long heavy-duty cast iron infeed and outfeed tables with precision machined finish
- Built-in rabbeting ledge adds versatility
- Two-way tilting fence with positive stops at 45 and 90 to handle bevel operations
- Exclusive front-mounted table adjustment handwheels make quick, easy and accurate corrections
- Industrial push-button controls are conveniently placed for easy access
- Built-in dust chute with 4 port connects to your collection system for efficient dust/chip disposal
- Center fence controls are conveniently mounted to allow quick adjustments
- Powerful 1HP motor easily handles the toughest jointing tasks
- Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
| Height | 0.000 |
| Length | 0.000 |
| Gross Weight | 256.000 |
| Net Weight | 237.000 |
| Volume | 0.000 |
| Width | 0.000 |
| Ready For Web (US) | Yes |
| Prop 65 | Cancer and Reproductive Harm |
| Infeed Table Length (In.) | #N/A |
| Fence Positive Stops (Deg.) | 45, 90 L, 90 R |
| Motor Power (HP) | 1 |
| Fence Tilt (Deg.) | 45 L, 45 R |
| Table Height from Floor (In.) | 31-1/4 |
| Motor Phase (PH) | 1 |
| Cutterhead Speed (RPM) | 6000 |
| Fence Size (L x H) (In.) | 32-3/4 x 3-7/8 |
| ` | #N/A |
| Cutting Capacity (W x D) (In.) | 6-1/16 x 1/2 |
| Recommended Circuit Size (Amps.) | #N/A |
| Outfeed Table Length (In.) | #N/A |
| Number of Knives | 3 |
| Table Size (L x W) (In.) | 56 x 7-3/8 |
| Size (In.) | #N/A |
| Rabbeting Ledge (In.) | 3-1/8 x 8-3/4 |
| Wiring Remarks | #N/A |
| Helical Knife Size (L x W x T) (In.) | 6-1/16 x 3/4 x 5/64 |
| Type of Cutterhead | #N/A |
| Rabbeting Capacity (In.) | 1/2 |
| Motor Amps | 13/6.5 |
| Dust Port Outside Diameter (In.) | 4 |
| Cuts Per Minute | #N/A |
| Cutterhead Diameter (In.) | #N/A |
| Standard Knife Size (L x W x T) (In.) | 6-1/6 x 3/4 x 5/64 |
| Motor Voltage (V) | 115/230 |
| Prewired Voltage (V) | 115 |
