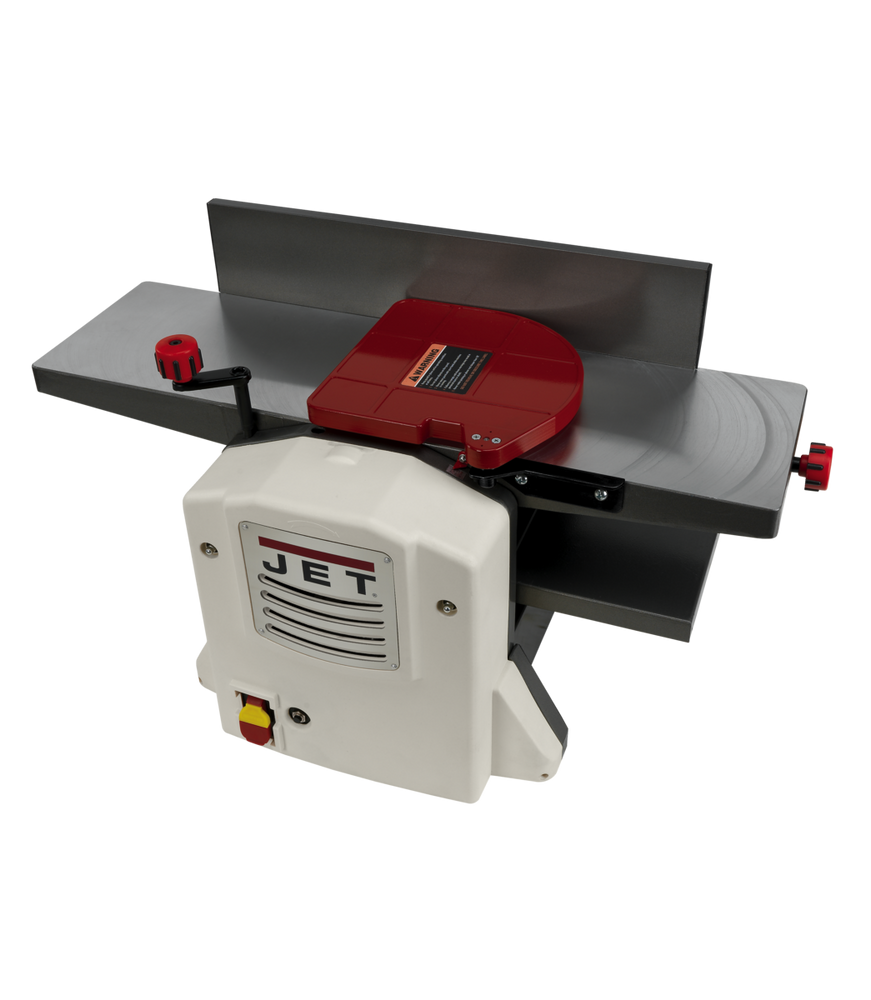

- Combination bench top jointer & planer provides a 2 in 1 machine to maximize work space
- Integrated cord wrap makes transporting easy and ensures workshop safety
- Compact bench top design fits conveniently in small shop environments
- Heavy Duty 13 Amp motor for various cutting applications
- Two high speed steel knives for smooth cuts
- Oversized, ergonomic knobs provide ease of use and maximum control
- Large aluminum extruded fence
- Sheet metal out feed table with height adjustment supports long work pieces and helps reduce snipe
- Planing and joining tables lock
- Precision machined table top ensures a smooth, straight cut
| Height | 16.800 |
| Length | 33.500 |
| Gross Weight | 68.300 |
| Net Weight | 58.400 |
| Volume | 5.895 |
| Width | 18.100 |
| Ready For Web (US) | Yes |
| Prop 65 | Cancer and Reproductive Harm |
| Standard Knife Size (L x W x T) (In.) | 8-1/4 x 13/20 x 3/50 |
| Jointer Cutting Capacity (W x D) (In.) | |
| Jointer Table Size (L x W) (In.) | |
| Cutterhead Diameter (In.) | |
| Prewired Voltage (V.) | 115 |
| Outfeed Table Length (In.) | 2 |
| Fence Positive Stops (Deg.) | |
| Helical Knife Size (L x W x T) (In.) | |
| Feed Rate - Planing (FPM) | |
| Feed Rate - Planing (FPM) | |
| Style (Type) | Planer/Jointer |
| Planer Cutting Capacity (W x D) (In.) | 1/5 - 4-18/25 |
| Recommended Circuit Size (Amps.) | |
| Wiring Remarks | |
| Fence Size (L x H) (In.) | 21 x 4-1/8 |
| Planer Table Size (L x W) (In.) | |
| Minimum Planing Length (In.) | |
| Maximum Planing Width (In.) | |
| Size (In.) | |
| Motor Power (HP) | |
| Cutterhead Speed (RPM) | 900 |
| Dust Port Outside Diameter (In.) | |
| Maximum Planing Thickness (In.) | |
| Cuts Per Minute | |
| Type of Cutterhead | |
| Motor Voltage (V.) | 115 |
| Maximum Depth of Cut - Planing (In.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Fence Tilt (Deg.) | 0 - 45 |
| Motor Amps | 13 |
