#717C-CHBB

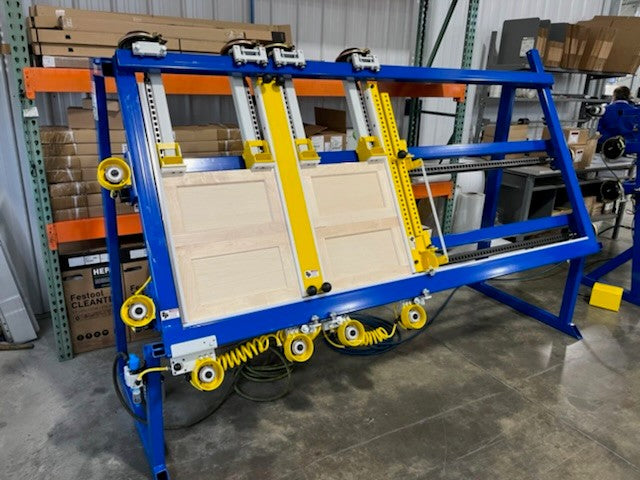

JLT Clamps Model #717C-M1-CHBB
Custom Door Shop solution for clamping & squaring Miter as well as Stile and Rail Cabinet Doors
Features
Custom Door Shop solution for clamping & squaring Miter as well as Stile and Rail Cabinet Doors
Solid wood 5 piece Miter / MDF or Melamine 5 piece Miter / 5 piece Shaker style Cope & Stick cabinet doors / Skinny Shaker
Precise , Accurate 2 Second Pneumatic Clamping & Squaring
Versatile for clamping (1) large door 38” x 96” or Multiple 38” x 45” doors side by side at the same time
- 100% Steel Constructed machine Frame - Heavy Duty design for long-lasting durability -Low cost maintenance
- Single Lever Valve Air Activation
- Includes the JLT Pneumatic Dial Control System for precise, accurate pressure in each corner of the door
- Includes (4) Vertical and (2) Horizontal Pneumatic Clamp Arms with a 20 Square inch Diaphram Cylinder , Quick Exhaust and Flow/Speed Control Valve on each arm
- Includes RFL - Pressure Regulator , requires (1) 1/4” Airline 70 PSI 3CFM
- Upright 60 degree Vertical working angle
- Ships Pre-Assembled for a quick , simple installation
- Upgrade to a Taylor Rotary for increased production with NO pinning - Retrofit this single unit onto a JLT/Taylor Rotary 5 or 8 Section Rotary System
- Ergonomic , user friendly design - Single Operator system for increased production
- Superior quality glue joints with the JLT pressure point accuracy in each corner of a cabinet door
- New Equalizer Trident Cross Pressure Pin System eliminated moving the Horizontal clamps - Creates more precise clamping pressure in each corner of the door
- New updated Rear Jaw design puts clamping pressure specifically where the stile & rail meet in each corner
- Quick adjusting Dial Controls on each clamp arm - switch from Miter to Stile & Rail doors
