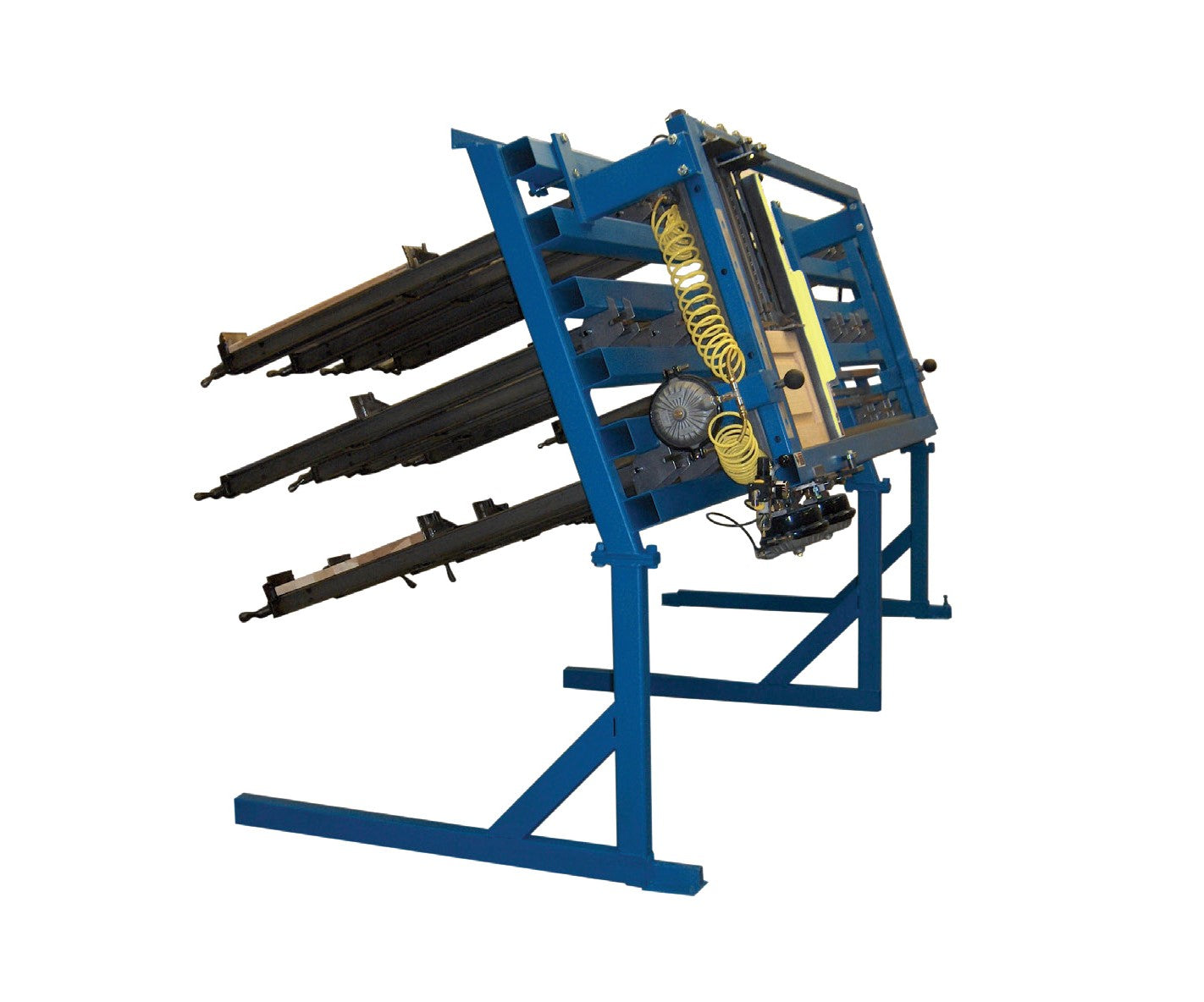

JLT #718A-12-DDC – 12′ Big Buddy System

by JLT
$10,575.00

12′ Wide Large Combo Clamp

PRODUCE up to 200+ Cabinet Doors & 72 Edge Glued Panels per day



Models

#718A-12

12' #717A Buddy System Includes:
(30) 40" Clamps & 26" x 62" Capacity Pneumatic Single Station
Door Clamp Replaces #79R-12

#718A-12-M

12' #718A Miter Buddy System Includes:
(30) 40" Clamps on 5 Levels 12 Wide Panel Clamp and 26"
x 62" Maximum Capacity Pneumatic Single Miter Door Clamp with
Dial Control System - Replaces #79R-12-M

#718A-12-DDC

12' #718A Big Buddy System Includes:
(30) 40" Clamps & 38" x 97" Capacity Pneumatic Double Door
Clamp

#718A-12-LM

12' #718A Large Miter Buddy System Includes: (30) 40" Clamps
and a 38" x 97" Large Miter Door Clamp

#717A-8-DDC Double Door Clamp Side:

  • 38″ x 97″ Overall Capacity
  • (2) Total Squaring Sections for Clamping and Squaring of Multiple Cabinet Doors
  • Single Lever Valve Air Activation
  • Faster Changeover with the Cross Clamps Adjusting in a Single Motion
  • Clamp & Square Multiple Cabinet Doors with Vertical Center Rail – (2) 38″ x 46″ Doors Side by Side Double Door Clamping.
  • 100% Heavy Duty Steel Construction.

#79F-12-PC Panel Clamp Side:

  • (5) total gluing levels
  • Includes (30) 3 1/2″ High Jaw 40″ opening clamps (52″ Clamps Available on Request)
  • Innovative, Space Saving Feature that allows the Clamps to be hung Vertically when not in use
  • Taylor’s Patented and Successful Clamp Arm Design
  • Versatility to Edge Glue Hundreds of Woodworking Components
  • 100% steel tubular construction that Creates a Flat and Even Work Area for Clamping Panels



Machine Footprint: 145″L x 70″H x 64″W
