JLT #718A-8-M – 8′ Miter Buddy System

by JLT
$12,475.00
SKU WSI-JLT718A-8-M

Includes (2) of our Most Popular Clamping Systems for the Custom Cabinetmaker!!

Produce up to 100+ Miter Cabinet Doors and up to 50 Panels per day

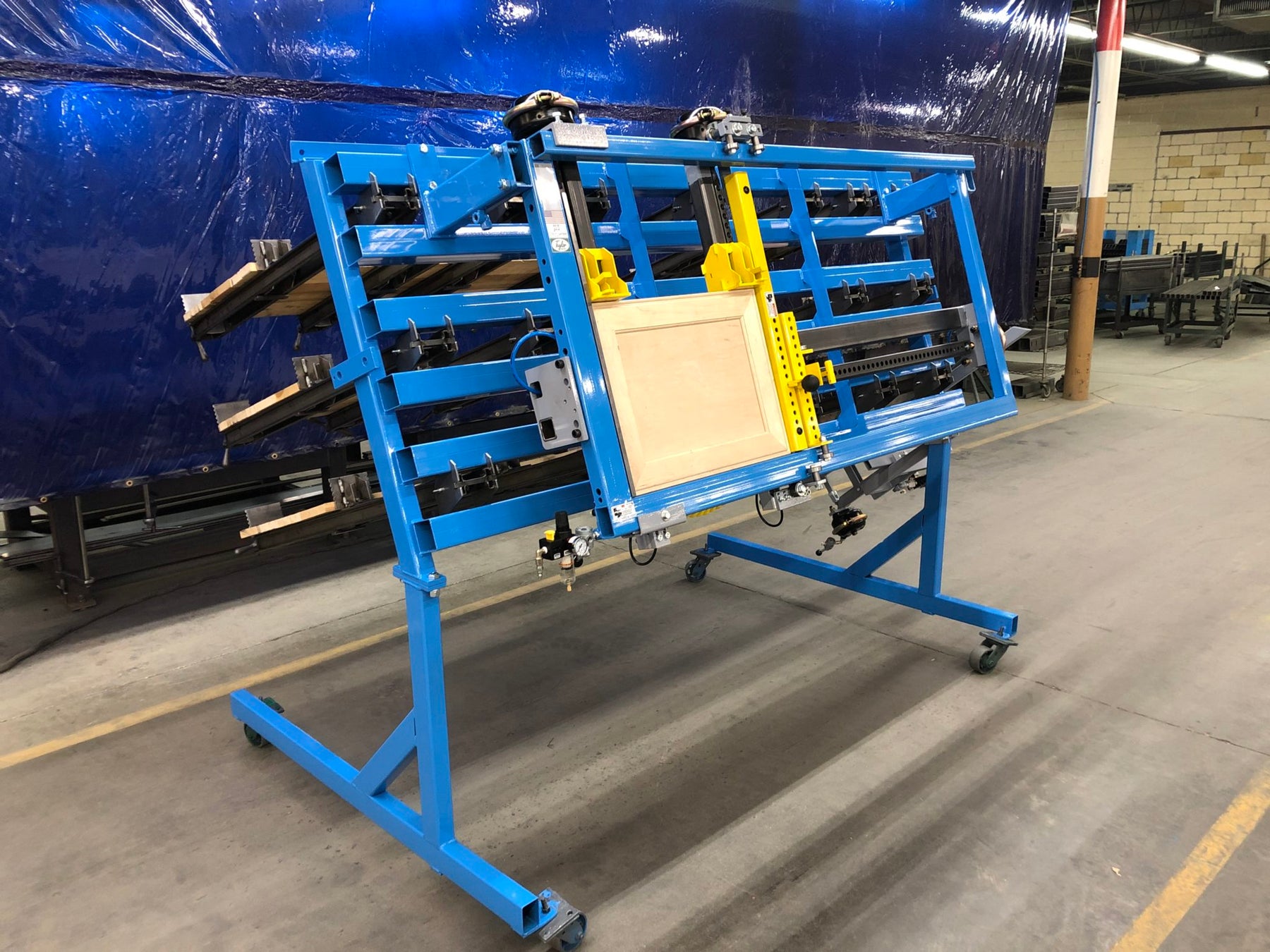

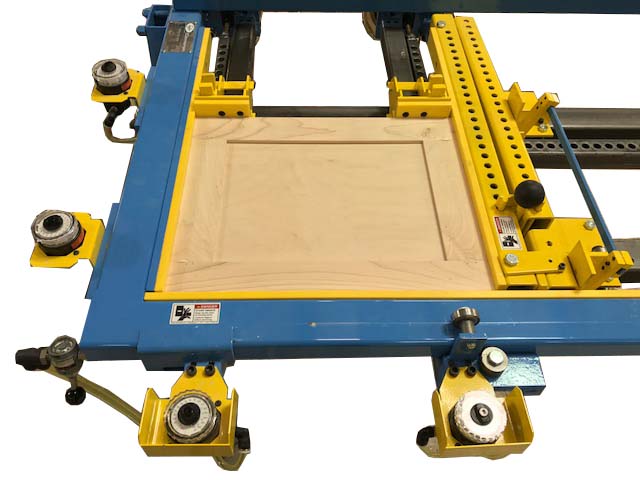

#717A-6-M: 6′ Miter Door Clamp Side:

  • 26″ x 62″ Maximum capacity.
  • Includes (2) Vertical Clamps & (2) Horizontal Clamps.
  • Each clamp includes the JLT Dial Control System for fine adjustments, which is simple and easy to use.
  • This innovative Dial Control System allows for adjustments in BOTH directions while the door is under clamping pressure
  • Precise and Accurate Squaring for both Miter and Stile & Rail Cabinet Doors
  • Precisely Clamp and Square MDF or HDF Doors too!!

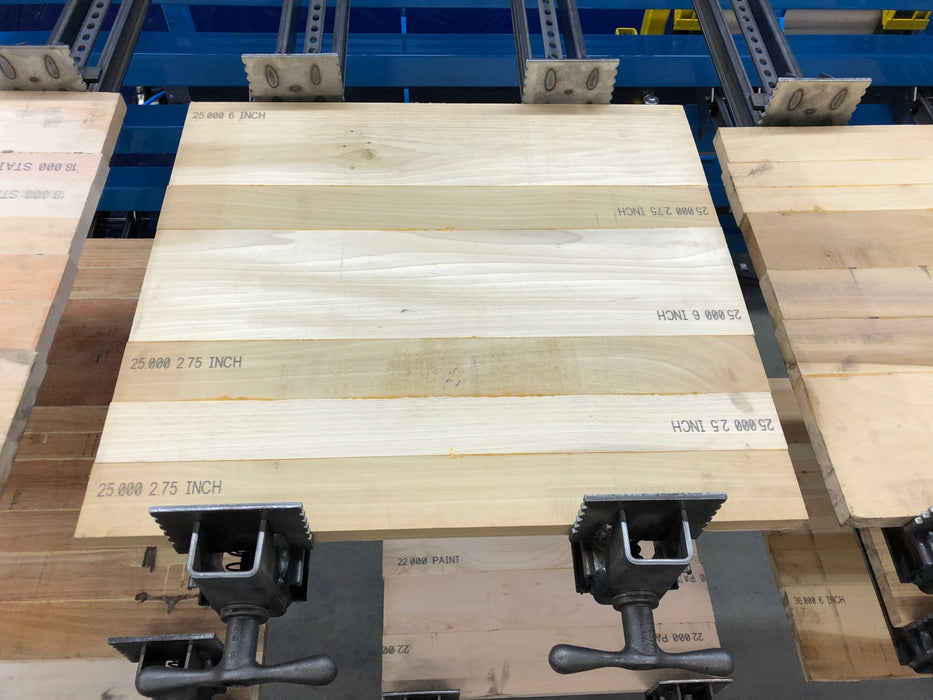

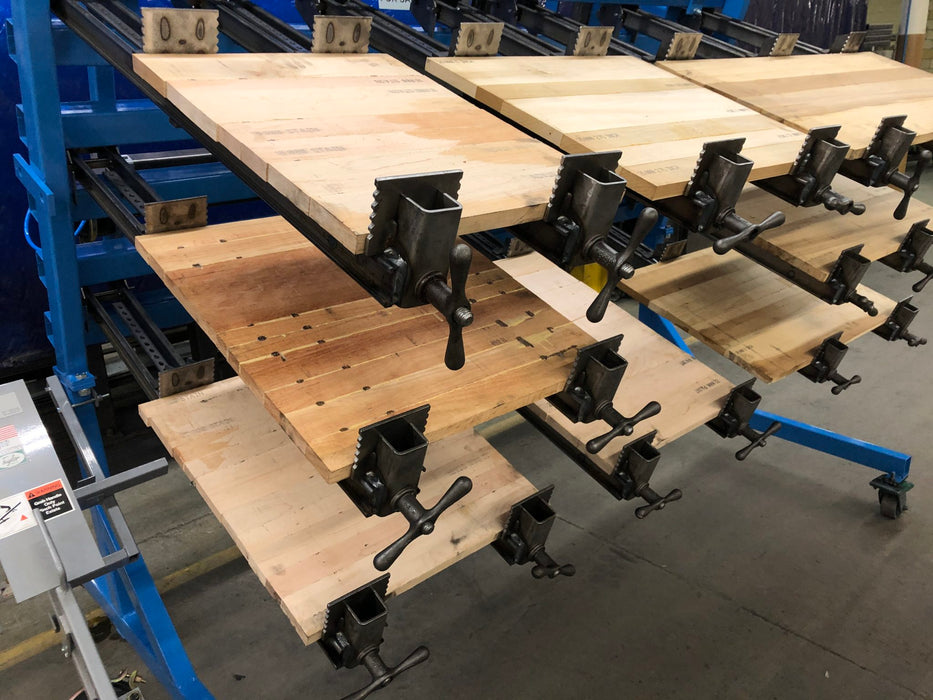

#79F-8-PC: 8′ Wide Panel Clamp Side:

  • (5) total gluing levels
  • Includes (18) 3 1/2″ High Jaw 40″ opening clamps (52″ Clamps Available upon Request)
  • Innovative, Space Saving Feature that allows the Clamps to be hung Vertically when not in use
  • Edge Glue and Face Glue a variety of solid wood components
  • 100% steel tubular construction that Creates a Flat and Even Work Area for Clamping Panels



Machine Footprint: 97″L x 70″H x 64″W
