JLT #79F-12-PC – 12′ Five Row Panel Clamp

by JLT
Sale
$8,575.00
$8,146.25
SKU JT79F12PC

JLT' Best Value, Most Versatile and Productive Panel Clamp Model.

Produce up to 72+ Edge Glued Panels per a Day.

Features

  • (5) total gluing levels
  • Includes (30) 3 1/2″ High Jaw 40″ opening clamps (52″ Clamps Available upon Request)

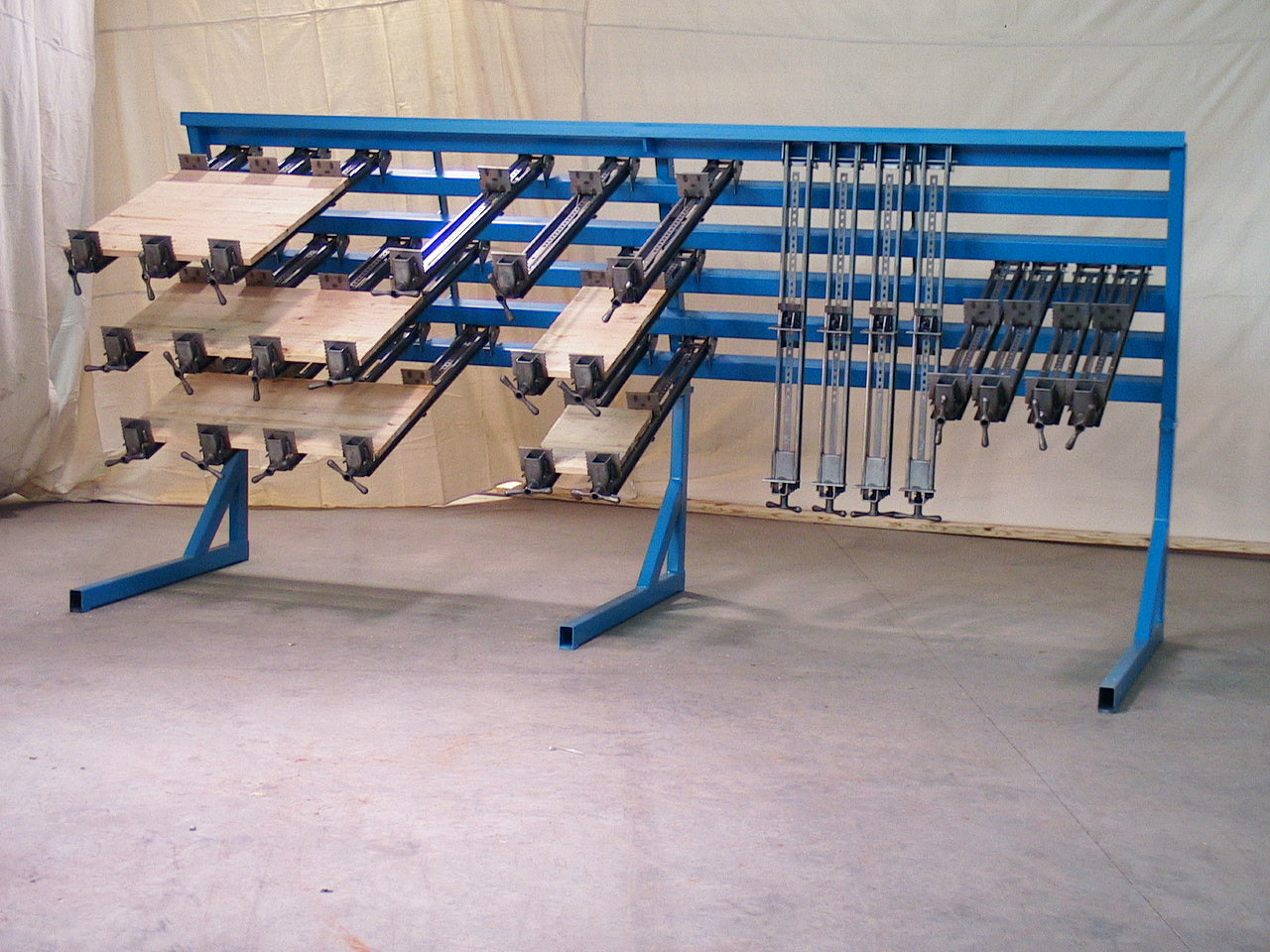

  • Innovative, Space Saving Feature that allows the Clamps to be hung Vertically when not in use

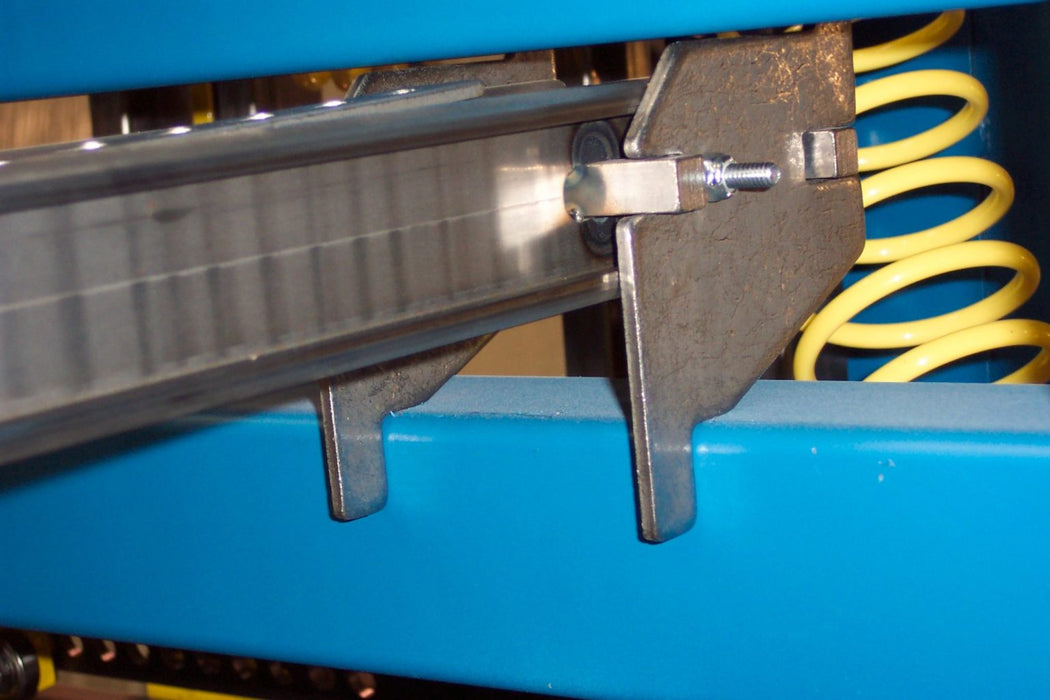

  • Taylor’s Patented and Successful Clamp Arm Design
  • Put (2) 12′ Panel Clamps side by side for edge gluing up to 24′ long Products
  • Free Standing Unit with 3000 lbs. Weight Capacity
  • Complete 3 Year Warranty
  • Lifetime Warranty on all Welded Components
  • Guaranteed never to Twist, Bow or Bend under normal working conditions
  • Patented Equalizer Design Provides Equal Clamping Force from the Front and Rear Jaws
  • Higher Quality Panels result from this Design with more even Glue Line Pressure.

Edge Glue and Face Glue a variety of solid wood components

  • 100% steel tubular construction that Creates a Flat and Even Work Area for Clamping Panels
  • Face Glue, Utilizing our Rocker Plates, a Wide Variety of Railing Stock, Posts, Beams, Flooring Blanks, and more



Machine Footprint: 148″L x 70″H x 48″W

JLT #302 Clamp Details

  • Standard Stock Size of 40″ Maximum Opening
    • Additional Stock Size is 52″ Maximum Opening
    • Additional non-stock and Custom Sizes from 32″ – 120″ Opening
    • Minimum Clamp Opening of 9″
  • Robotically Welded / 100% Steel Construction
    • Lifetime Warranty on all Welded Components
    • Guaranteed never to Twist, Bow or Bend under normal working conditions
  • Each Clamp can Produce up to 3000 lbs. of Clamping Force
  • Patented Equalizer Design Provides Equal Clamping Force from the Front and Rear Jaws
    • Higher Quality Panels result from this Design with more even Glue Line Pressure

Optional Accessories

  • #302-40-H-R Clamps
  • 138B 8″ x 48″ Taylor Plate Spreader
  • 150B Glue Spreader
  • 180A Pneumatic Panel Flattener
  • 79-16 Holddowns

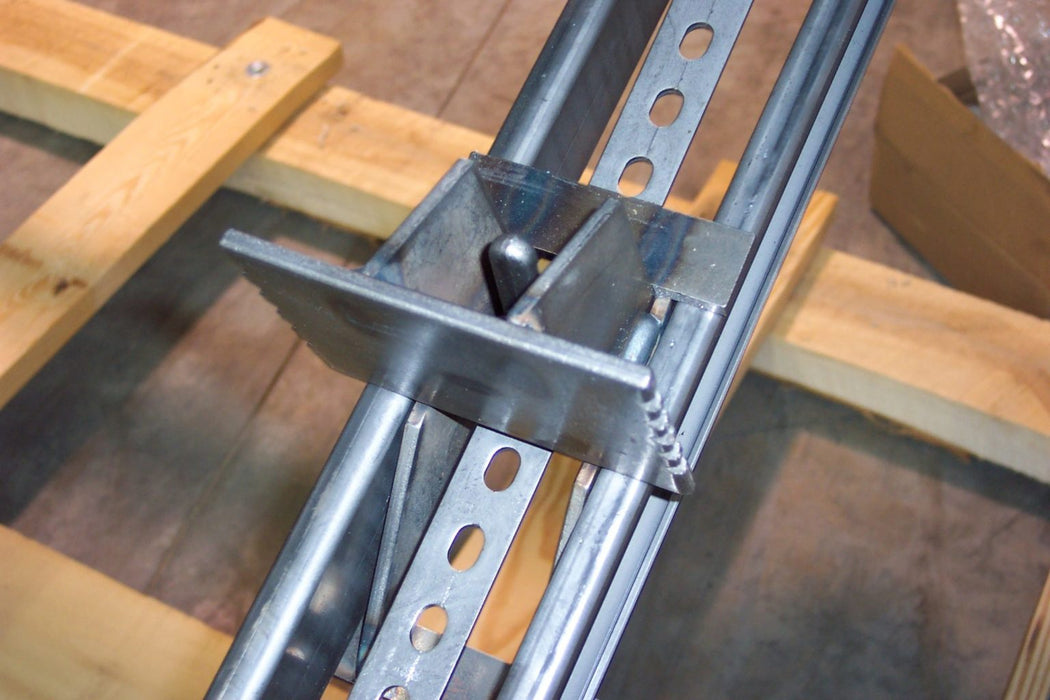

  • 80-1706 Rocker Plates
