JLT #190B-M3 JLT Heavy Duty Drawer Clamp

by JLT
Sale
$5,975.00
$5,676.25
SKU JT190BM3

Designed for High Production and Custom Shops who Build their own Drawer Boxes

Successfully Clamp and Square both Dovetail & Doweled Drawer Boxes



#190B

Heavy Duty Drawer and Box Clamp 10"H x 24"L x 37"W
Maximum Capacity Includes:
(3) Sets of Pressure Shoes,
(1) Set of Aluminum Side Plates
(1) Lever Valve Pressure Hold Kit,
(2) Pneumatic Cross Clamps with Fast Acting Diaphragm Cylinders



#190B-48

Heavy Duty Drawer and Box Clamp 12"H x 24"L x 48"W
Maximum Capacity Includes:
(3) Sets of Pressure Shoes,
(1) Set of Aluminum Side Plates
(1) Lever Valve Pressure Hold Kit,
(2) Pneumatic Cross Clamps with Fast Acting Diaphragm Cylinders



  • (2) Standard Machine Frames
    • 10″ x 24″ x 36″ Maximum Capacity
    • 12″ x 24″ x 48″ Maximum Capacity
  • Easy to Use and Intuitive Air System

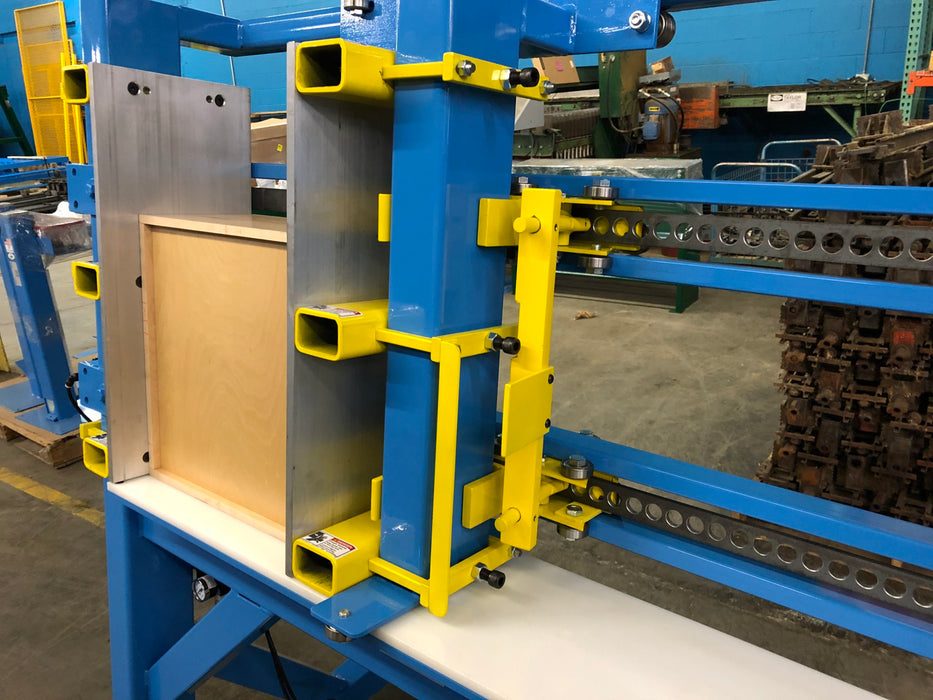

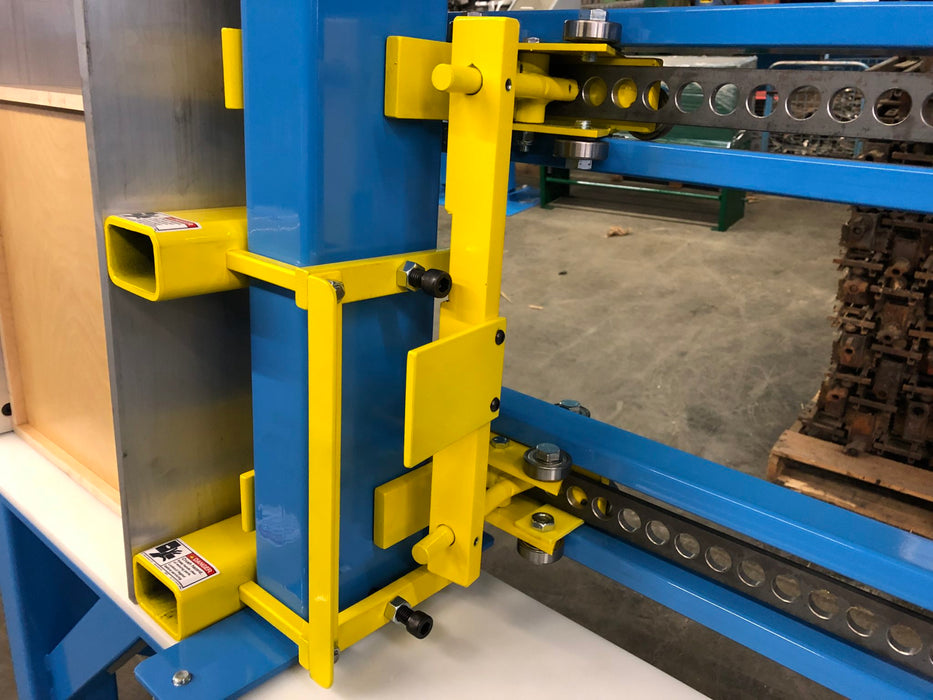

  • Quick Adjusting Roller Carriage Eliminates Set-up for Faster Changeovers

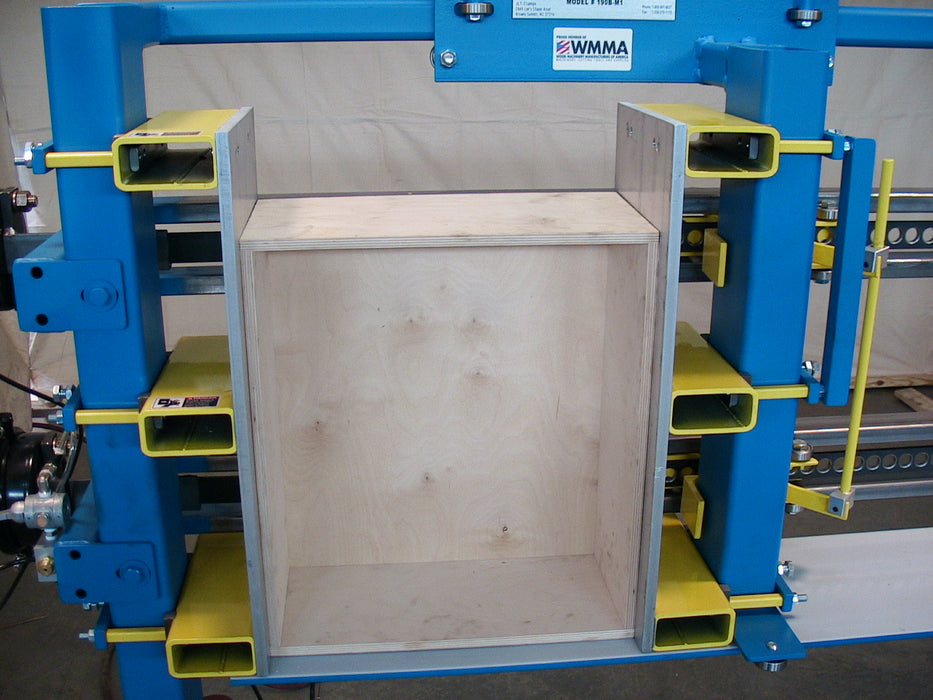

  • Aluminum Side Pressure Plates Provide a Solid, Flat Clamping Surface

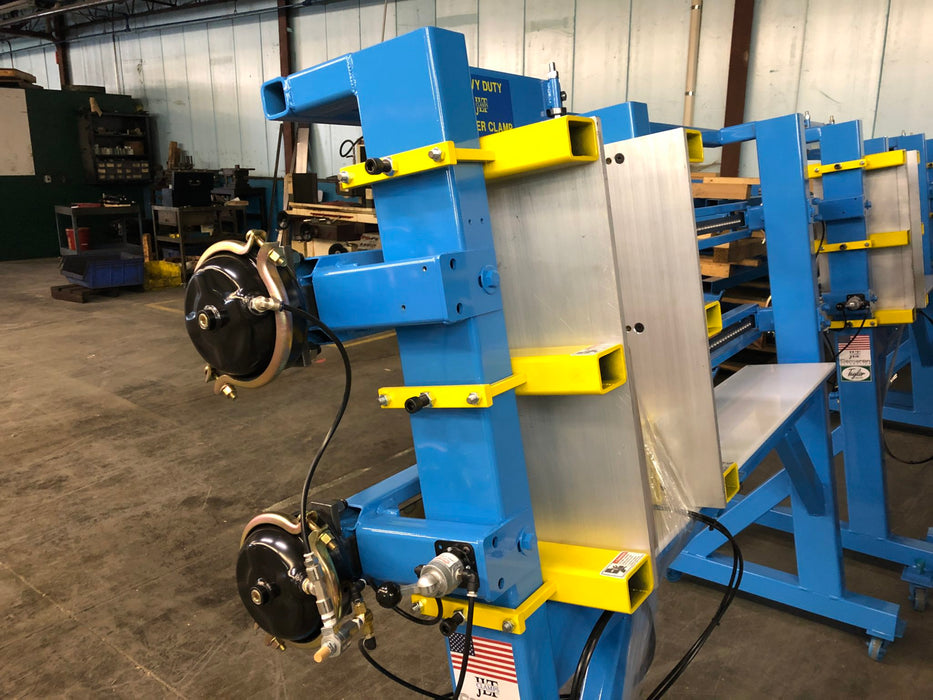

  • Dual Fast Acting Horizontal Pneumatic Clamps with a 2″ Stroke.

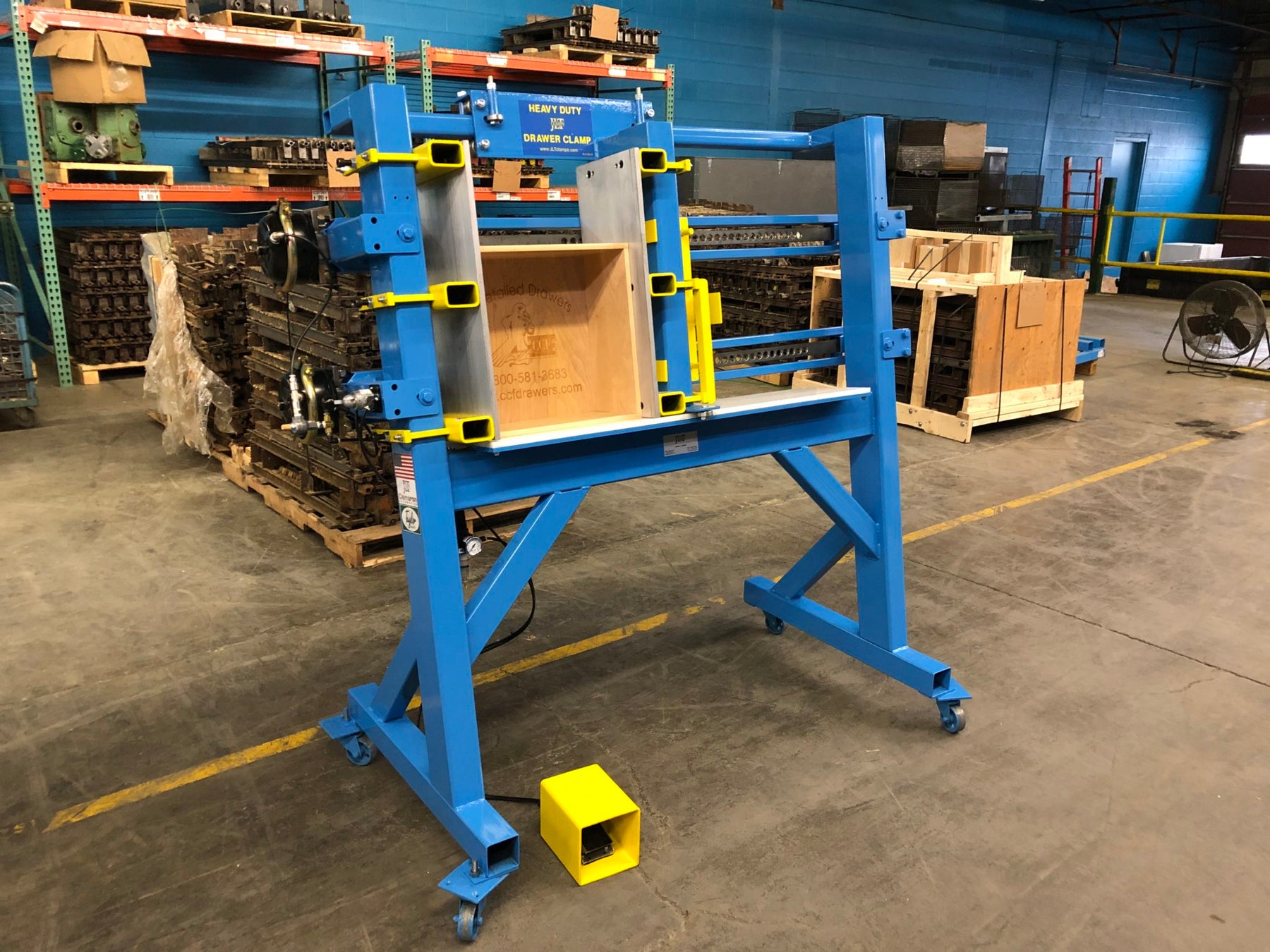

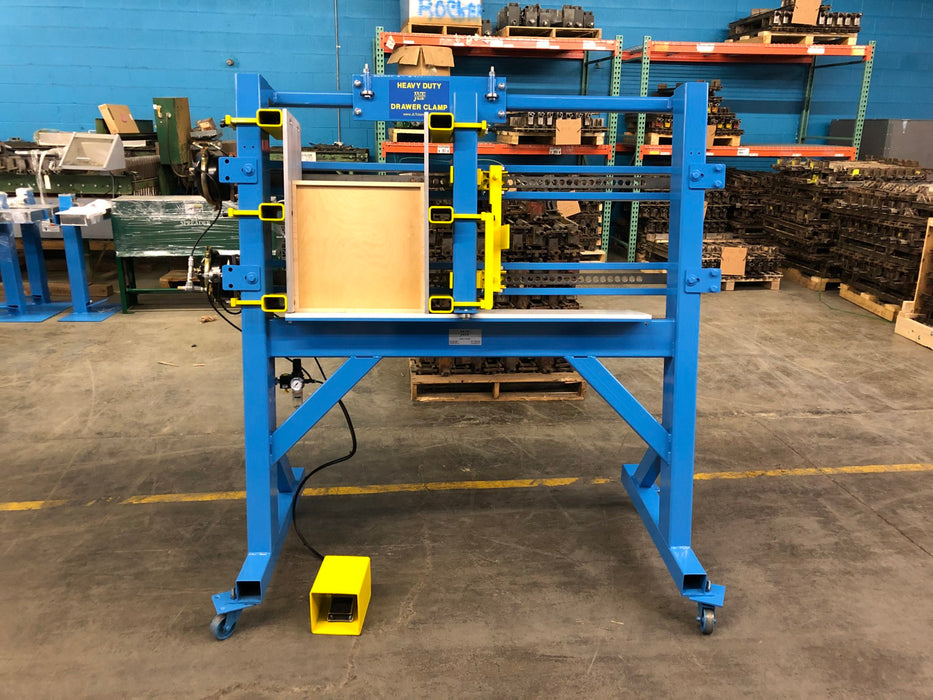

The JLT Heavy Duty Drawer Clamp is Designed to Clamp and Square all Doweled and Dovetail Drawer Construction Types. Our Design is Heavy Duty, Sturdy, Intuitive to Use, and Built to Last. It has Precise Squaring Capabilities with ample Clamping Pressure for your Boxes. A Quick Adjusting Roller Carriage Eliminated Setup Times when moving from Size to Size, and our Fast Acting Pneumatic System will Clamp and Square the Drawer in (2) Seconds.

Machine Footprint: 70″L x 60″H x 36″W
