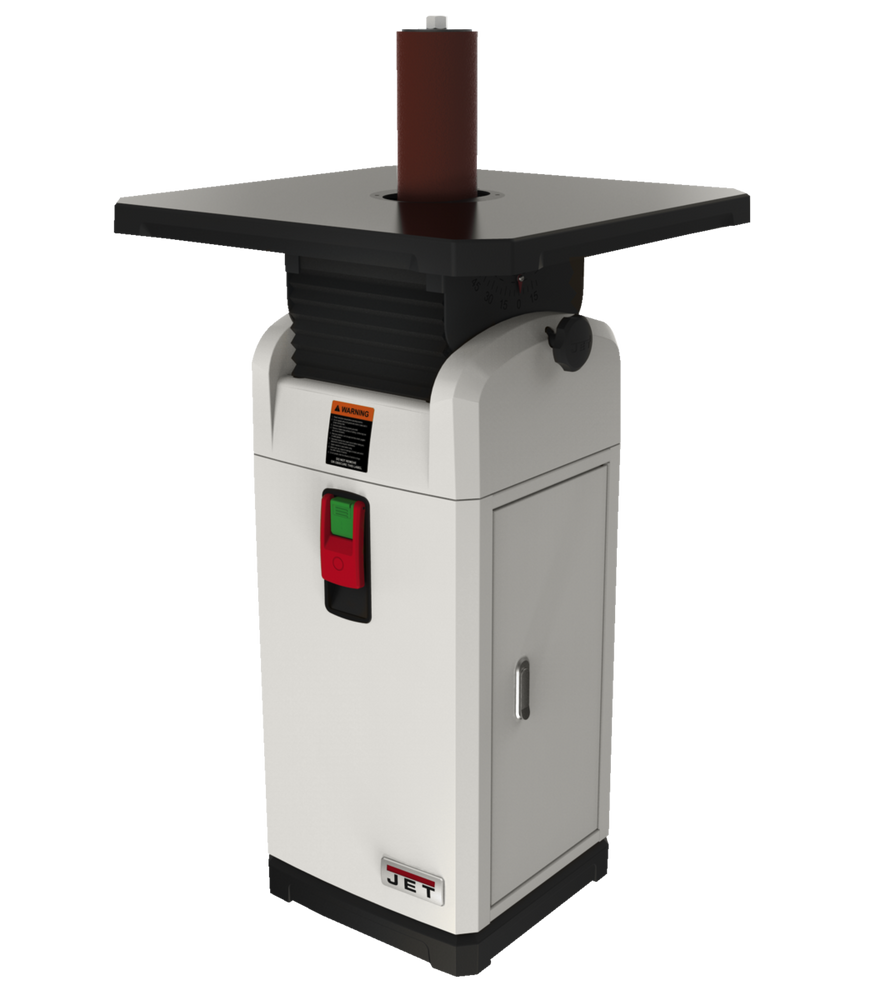

JOSS-S, Floor Model Oscillating Spindle Sander, 1HP, 1Ph, 115V

by Jet
SKU 723950
  • Baffles create a chamber under the table for improved dust collection
  • 4 dust port connects to your dust collection system to keep your work area clean
  • Spindle lock for quick and easy spindle changes
  • Table tilts 45° front and 15° back and features a 90° quick index
  • Integrated storage provides designated slots for spindles and table inserts
  • Sealed access door minimizes dust in the storage area
  • 1-1/2 oscillating action reduces friction heat to protect wood and prolong sleeve life
  • Main spindle support runs on precision ball bearings and is oscillated by a heavy-duty worm and gear mechanism for consistent performance
  • Integrated paddle switch with safety key
  • Powerful 1HP motor is independently mounted inside the base for easy access and service
Gross Weight256.000
Net Weight216.000
Ready For Web (US)Yes
Prop 65Cancer and Reproductive Harm
Table Size (L x W) (In.)24-1/2 x 24-1/2
Dust Port Outside Diameter (In.)4
Style (Type)#N/A
Prewired Voltage (V)115
Recommended Circuit Size (Amps.)#N/A
Spindle Speed (RPM)1720
Motor Phase1
Table Height from Floor (In.)39-3/16
Dust Collection Minimum CFM Required (CFM)300
Motor Power (HP)1
Wiring Remarks#N/A
Motor Voltage (V)115/230
Motor Current (Amps.)#N/A
Table Tilt (Deg.)-15 - 45
Oscillations Per Minute75
Oscillation Stroke (In.)1-1/2
Motor Amps11/5.5
Prewired Voltage (V.)#N/A
Motor Voltage (V.)#N/A
