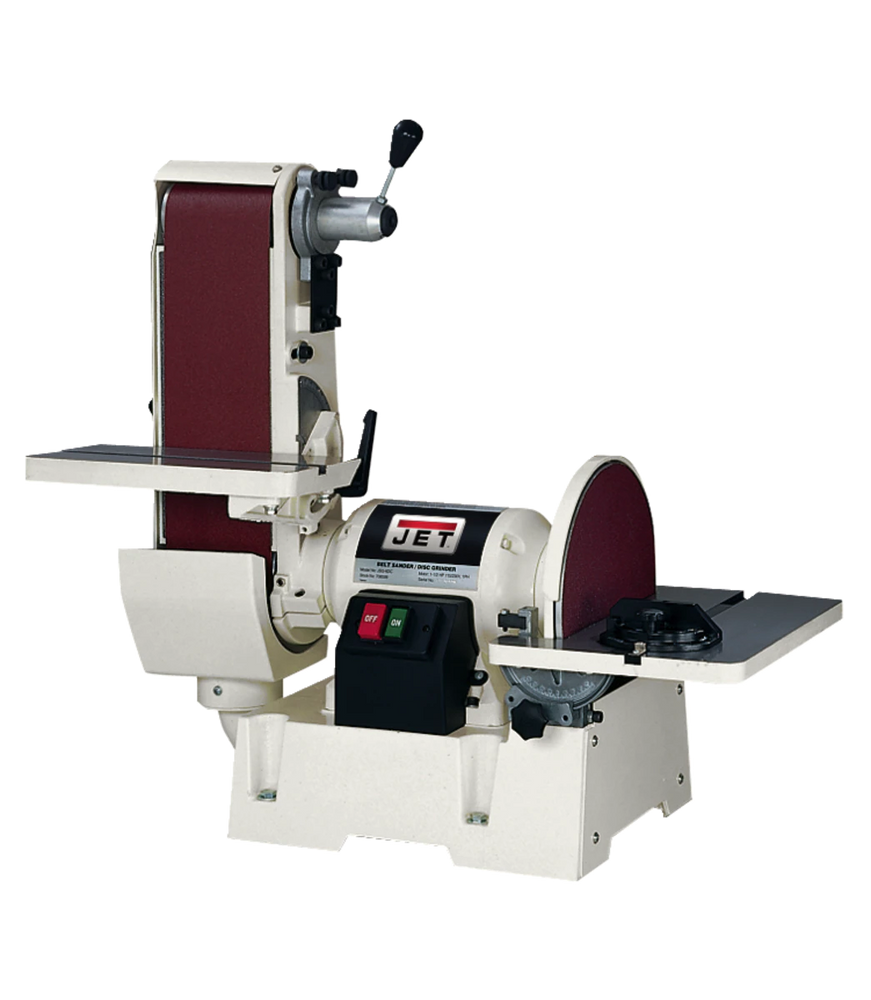

JSG-6DC, 6" x 48" Belt / 12" Disc Sander, 1-1/2HP, 1Ph 115/230V

by Jet
$1,599.99
SKU 708599
  • Large cast iron table has preset stops at 90 and 45 to let you use the belt sander vertically, horizontally or anywhere in between
  • Exclusive dual thumbscrew belt tracking adjustment locks to keep belt on track during use
  • Graphite covered steel platen runs cooler increasing machine and belt life
  • Specially designed belt guard allows full use of the 6 belt width and length
  • Tracking adjustment knob with quick-lock handle keeps belt on track during use
  • Quick-release belt tension lever makes belt changes fast and easy
  • Quick-lock dust cover allows fast disc changes
  • Single 4 dust port on the back of the base collects dust effectively from both the belt and disc
  • Powerful 1-1/2HP motor easily handles the toughest sanding operations
Height0.000
Length0.000
Gross Weight215.000
Net Weight215.000
Volume9.198
Width0.000
Ready For Web (US)Yes
Prop 65Cancer and Reproductive Harm
Motor Voltage (V)115/230
Dust Collection Minimum CFM Required (CFM)
Belt Table Tilt (Deg.)20 Up, 45 Down
Motor Phase (PH)1
Recommended Circuit Size (Amps.)
Wiring Remarks
Prewired Voltage (V)115
Motor Amps12/6
Disc Diameter (In.)12
Impeller Diameter (In.)
Sanding Arm Locking Positions
Dust Port Outside Diameter (In.)4
Style (Type)SV_1375591258774
Belt Table Size (L x W) (In.)12-1/2 x 7
Disc Speed (RPM)1725
Sanding Belt Size (L x W) (In.)48 x 6
Disc Table Tilt (Deg.)25 Up, 45 Down
Canister Filter (Microns)
Disc Table Size (L x W) (In.)16-1/2 x 10
Belt Speed (RPM)2500
Motor Power (HP)1-1/2
