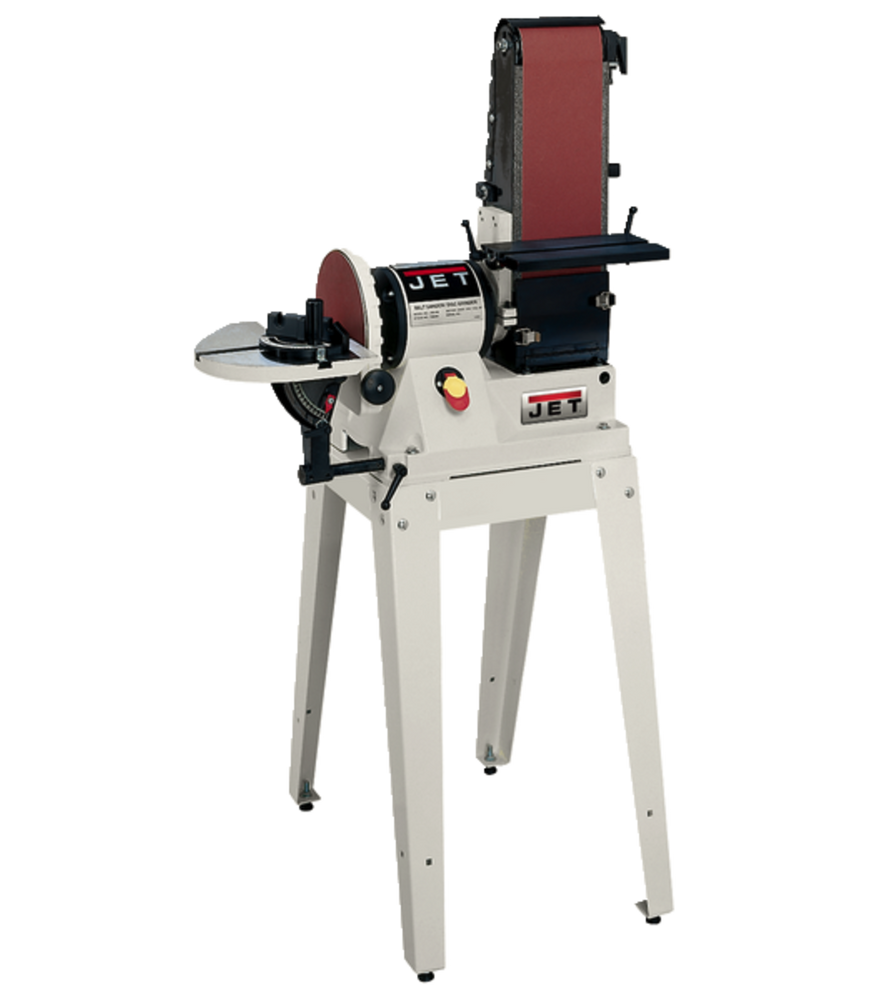

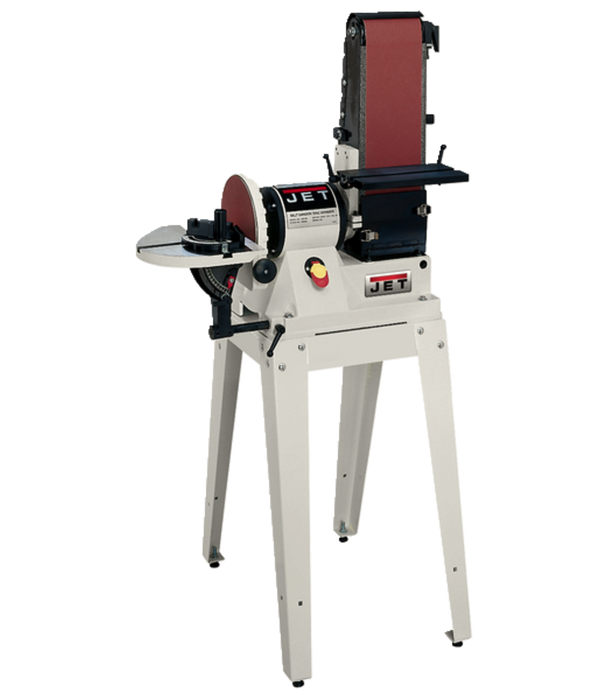

JSG-96OS, 6" x 48" Belt / 9" Disc Sander with Open Stand, 3/4HP 1Ph, 115V

by Jet
$1,099.99
SKU 708596K
  • Large cast iron table has preset stops at 90 and 45 to let you use the belt sander vertically, horizontally or anywhere in between
  • Exclusive dual thumbscrew belt tracking adjustment locks to keep belt on track during use
  • Graphite covered steel platen runs cooler increasing machine and belt life
  • Specially designed belt guard allows full use of the 6 belt width and length
  • Drive drum is rubber-coated for a better grip on the sanding belt resulting in less slippage
  • Tracking adjustment knob with quick-lock handle keeps belt on track during use
  • Quick-release belt tension lever makes belt changes fast and easy
  • Quick-lock dust cover allows fast disc changes
  • Single 4 dust port on the back of the base collects dust effectively from both the belt and disc
  • Powerful 3/4HP motor easily handles the toughest sanding operations
Height0.000
Length0.000
Gross Weight159.000
Net Weight159.000
Volume0.000
Width0.000
Ready For Web (US)Yes
Prop 65Cancer and Reproductive Harm
Motor Voltage (V)115
Dust Collection Minimum CFM Required (CFM)
Belt Table Tilt (Deg.)10 Up, 45 Down
Motor Phase (PH)1
Recommended Circuit Size (Amps.)
Wiring Remarks
Prewired Voltage (V)115
Motor Amps11
Disc Diameter (In.)9
Impeller Diameter (In.)
Sanding Arm Locking Positions
Dust Port Outside Diameter (In.)4
Style (Type)Open Stand
Belt Table Size (L x W) (In.)11 x 5-1/2
Disc Speed (RPM)1725
Sanding Belt Size (L x W) (In.)48 x 6
Disc Table Tilt (Deg.)10 Up, 45 Down
Canister Filter (Microns)
Disc Table Size (L x W) (In.)12 x 7-1/2
Belt Speed (RPM)2258
Motor Power (HP)3/4
