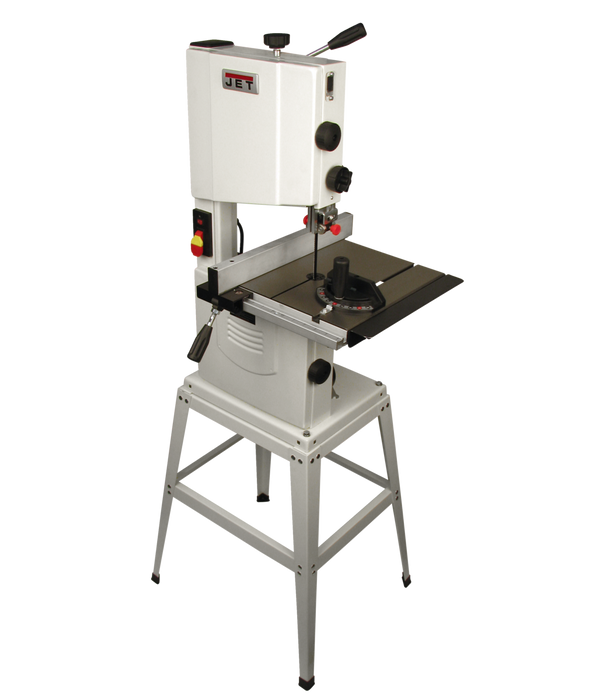

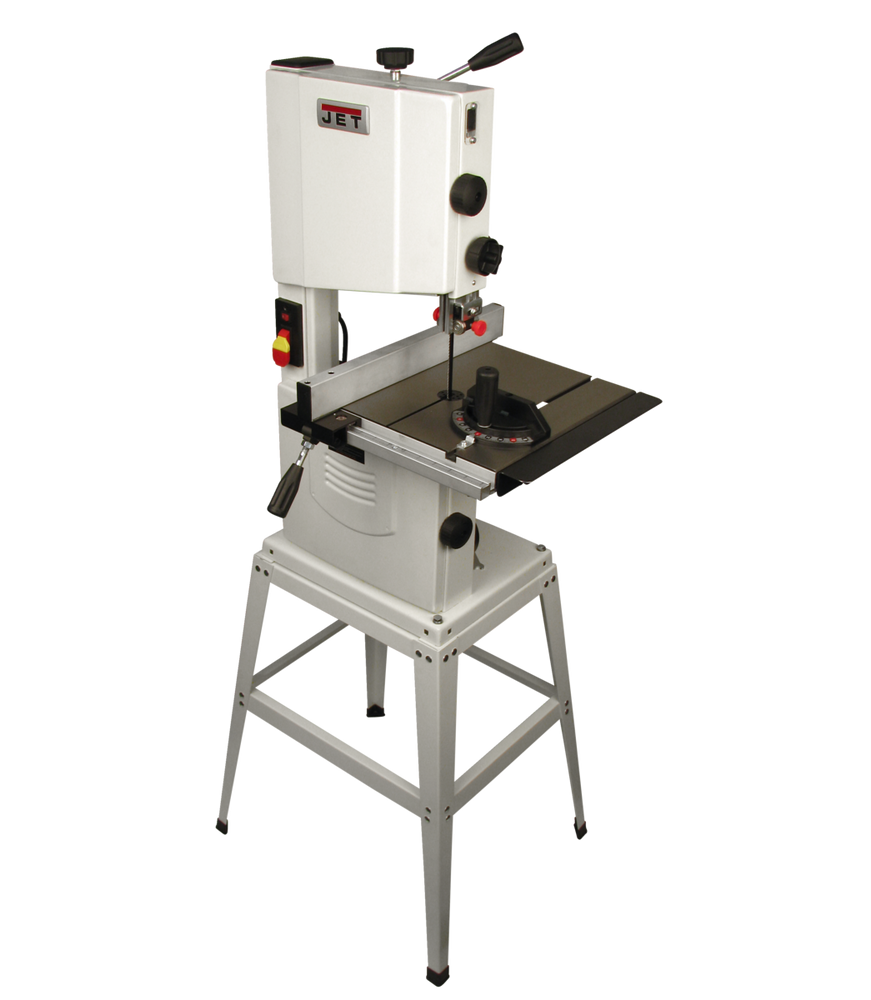

- Compact benchtop design allows for easy transport to different shop locations
- Rigid steel stand allows bandsaw to transition from the benchtop to the floor
- Reinforced steel base can be bolted to stand or work bench
- 1/2 HP induction motor easily handles various cutting applications
- Poly-V drive system maximizes power transfer from motor to blade and reduces vibration
- Upper and lower ball bearing blade guides provide blade stability
- Extra large cast iron table with retractable extension wing provides additional work piece support
- One piece welded frame design reduces machine vibration and flex
- Oversized, ergonomic knobs provide ease of use and maximum control
- Quick release blade tension makes changing and re-tensioning the blade fast, easy and consistent
| Height | 0.000 |
| Length | 0.000 |
| Gross Weight | 92.000 |
| Net Weight | 83.000 |
| Volume | 4.295 |
| Width | 0.000 |
| Ready For Web (US) | Yes |
| Prop 65 | Cancer and Reproductive Harm |
| Table Height from Floor (In.) | 43-1/2 |
| Blade Length (In.) | 67-1/2 |
| Minimum Saw Blade Width (In.) | 1/8 |
| Miter Gauge Positive Stops | #N/A |
| Blade Speed (SFPM) | 2750 |
| Table T-Slot (In.) | #N/A |
| Recommended Circuit Size (Amps.) | #N/A |
| Stand Type | Open |
| Motor Power (HP) | 1/2 |
| Motor Voltage (V) | 115 |
| Dust Collection Minimum CFM Required (CFM) | #N/A |
| Motor Phase (PH) | 1 |
| Prewired Voltage (V) | #N/A |
| Motor Amps | 3.4 |
| Table Size with Extension (L x W) (In.) | 13-1/8 x 19 |
| Dust Port Outside Diameter (In.) | up to 4 |
| Style (Type) | #N/A |
| Cutting Capacity Height (In.) | 4 |
| Table Tilt (Deg.) | 0 to 45 |
| Blade Width (In.) | #N/A |
| Table Size (L x W) (In.) | 13-1/8 x 13-3/8 |
| Maximum Saw Blade Width (In.) | 1/2 |
| Cutting Capacity Width (In.) | 9-1/2 |
| Band Saw Size/Wheel Diameter (In.) | 10 |
| Wiring Remarks | #N/A |
| Motor Voltage (V.) | #N/A |
