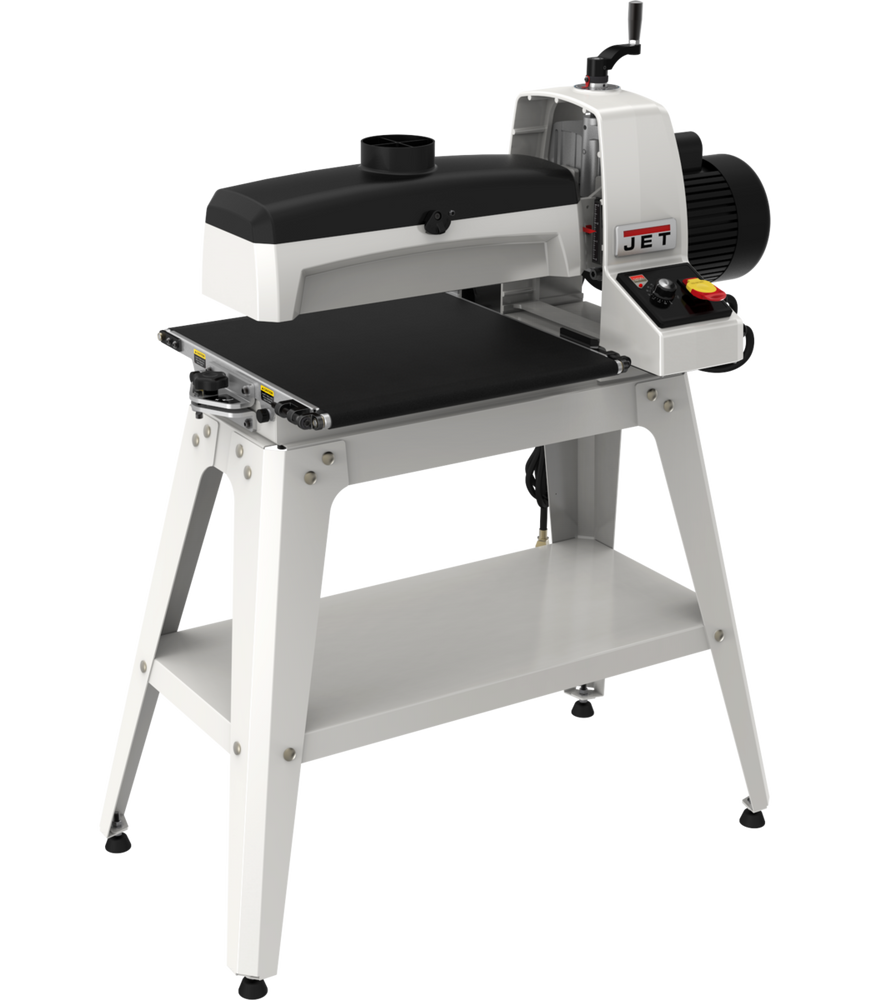

- Sandsmart™ control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
- Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed - no tools required
- Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position
- Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4 collection port
- Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
- Precision-flattened reinforced steel conveyor bed
- Redesigned conveyor system pulls the workpiece through the sander instead of pushing
- One rotation of the top-position handwheel adjusts the drum height by 1/16
- The relative depth scale on the handwheel allows the user to reset and measure the depth for every project
- Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
| Height | 25.000 |
| Length | 39.000 |
| Gross Weight | 182.000 |
| Net Weight | 156.000 |
| Volume | 12.695 |
| Width | 22.500 |
| Ready For Web (US) | Yes |
| Prop 65 | Cancer and Reproductive Harm |
| Wiring Remarks | |
| Electrical Controls | |
| Recommended Circuit Size (Amps.) | |
| Drum Length (In.) | 16 |
| Minimum Board Thickness (In.) | 1/32 |
| Dust Collection Minimum CFM Required (CFM) | 400 |
| Minimum Board Length (In.) | 2-3/8 |
| Maximum Board Width (In.) | 32 (two passes) |
| Drum Diameter (In.) | 5 |
| Prewired Voltage (V) | |
| Maximum Board Thickness (In.) | 3 |
| Motor Amps | 14 |
| Motor Phase (PH) | 1 |
| Motor Power (HP) | 1-1/2 |
| Number of Sanding Drums | |
| Dust Port Outside Diameter (In.) | 4 |
| Conveyor Motor | 43 in.-lbs. torque, direct drive, dc |
| Conveyor Speed (FPM) | 0 - 10 |
| Motor Voltage (V) | 115 only |
| Style (Type) | |
| Drum Speed (RPM) | 1,720 |
| Drum Bearing Diameter (In.) | 1 |
| Weight (Lbs.) | 156 |
