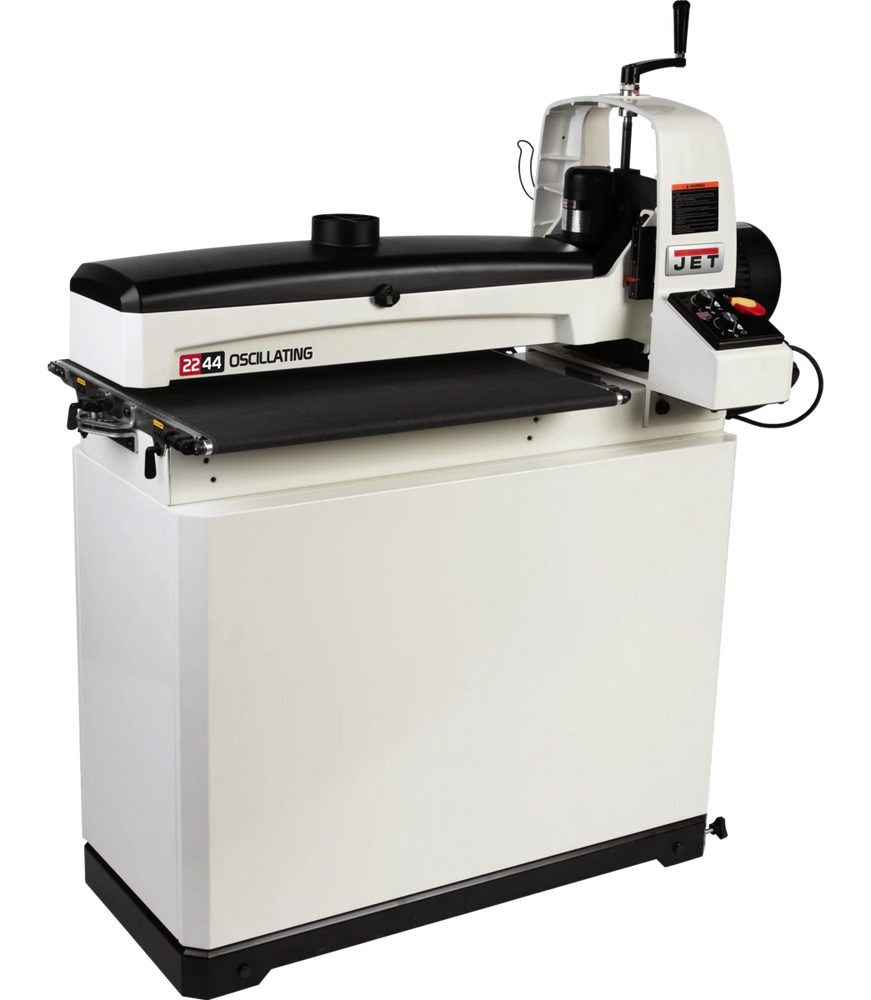

JWDS-2244OSC Oscillating Drum Sander With Closed Stand

by Jet
SKU 723544OSCK
  • Exclusive variable speed oscillating drum moves from left to right—minimizing visual scratch patterns in workpieces and increasing the lifespan of abrasive paper.
  • Sandsmart™ control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
  • Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4 collection port
  • Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed - no tools required
  • Redesigned conveyor system pulls the work piece through the sander instead of pushing
  • Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and has 3/4 of oscillating stroke
  • Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
  • Conveyor belt TRACKERS™ reduce the need for manual belt adjustments
  • Tool less abrasive take-up clips make changing abrasives quick and easy
  • Mobile cabinet features a heavy duty 45 x 24 footprint to increase stability and has a door to keep items stored securely
Gross Weight311.000
Net Weight279.000
Ready For Web (US)Yes
Prop 65Cancer and Reproductive Harm
Wiring Remarks
Electrical Controls
Recommended Circuit Size (Amps.)20
Drum Length (In.)23
Minimum Board Thickness (In.)1/32
Dust Collection Minimum CFM Required (CFM)
Minimum Board Length (In.)2-3/8
Maximum Board Width (In.)44 (two passes)
Drum Diameter (In.)5
Prewired Voltage (V)
Maximum Board Thickness (In.)3
Motor Amps15
Motor Phase (PH)1
Motor Power (HP)1-3/4
Number of Sanding Drums
Dust Port Outside Diameter (In.)4
Conveyor Motortotally enclosed DC
Conveyor Speed (FPM)0 - 10
Motor Voltage (V)115
Style (Type)
Drum Speed (RPM)1725
Drum Bearing Diameter (In.)
Weight (Lbs.)216
