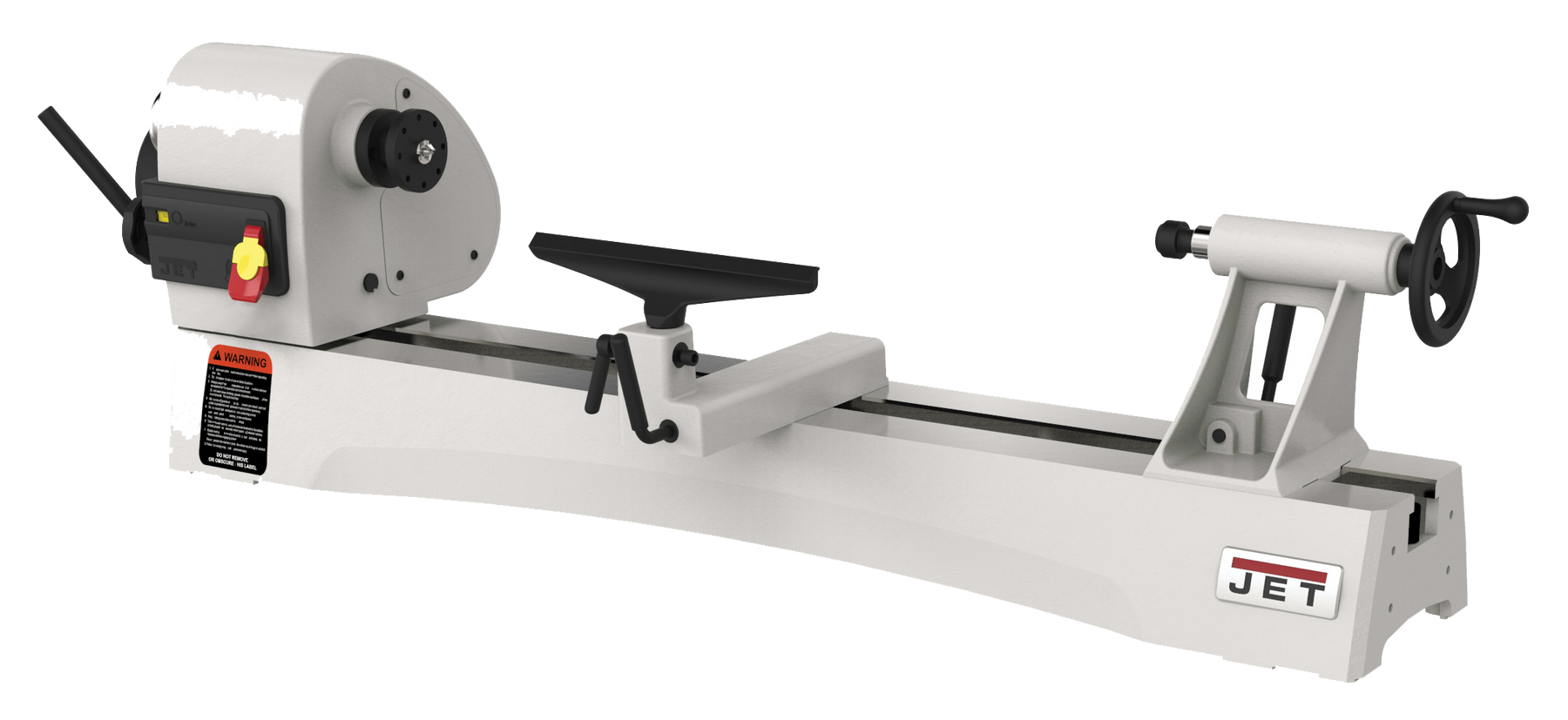

JWL-1440VS 14" x 40" Benchtop Wood Lathe

by Jet
SKU 719400
  • Sliding headstock pivots 360 degrees with 7 positive locking positions at 0, 30, 60, 90, 120, 180, and 270 degrees for maximum variability and optimal user comfort
  • Variable speed from 400-3000 RPM
  • Positive locking tool rest with redesigned clamping
  • Optional extension bed takes the capacity to 60 between centers
  • Acme thread in tailstock
  • Improved tailstock quill locking with anti-rotation key
  • Easy-to-read RPM display
  • CSA Certified
Gross Weight270.000
Net Weight220.000
Ready For Web (US)Yes
Prop 65Cancer and Reproductive Harm
Motor Amps11/5.5
Distance Between Centers (In.)40
Quill Travel (In.)4-1/4
Prewired Voltage (V.)115
Assembled Machine Dimensions (In.)74L x 18W x 18.3H
Outboard TurningYes
Tailstock Bore (In.)#N/A
Swing Over Bed (In.)14-1/2
Number of Indexing Positions36
Spindle Bore (In.)3/8
Motor Power (HP)1
Quill TaperMT2
Spindle Thread (In./TPI)1/8 TPI
Motor Phase (PH)1
Spindle SpeedsVariable
Centerline of Spindle to Floor (In.)44
Spindle TaperMT2
Headstock MovementSliding/Pivoting
Motor Voltage (V.)115/230
Speed Range400-3000
Swing Over Tool Rest Base (In.)11
Size (In.)#N/A
Recommended Circuit Size (Amps.)#N/A
Bed ConstructionCast Iron
Style (Type)SV_1375591258774
Wiring Remarks#N/A
Outboard External Threads (In. x TPI)#N/A
Bed Gap (In.)#N/A
