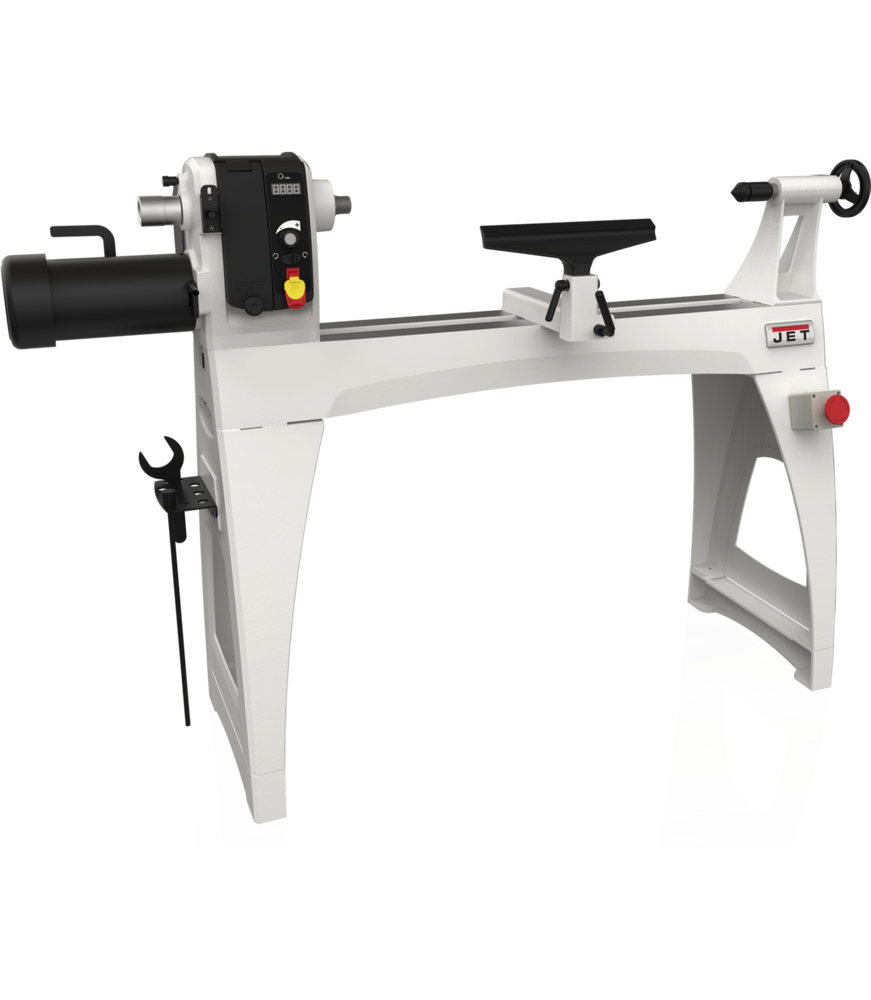

JWL-1840EVS 18" x 40" Wood Lathe

by Jet
SKU 719600
  • Headstock slides for maximum versatility
  • Extended spindle nose houses dual headstock spindle bearings
  • Four inch cast iron risers allow user to adjust height of lathe for maximum comfort
  • Improved tailstock quill locking mechanism incorporates an anti-rotation key
  • Tailstock features Acme threads for smooth and durable movement
  • Banjo uses non-marring, positive locking wedge system to securely hold tool post
  • Tool post locking mechanism designed for year of consistent strength
  • Spindle lock latch frees up both hands
  • Electronic infinitely variable speed from 40 – 3200 RPM
  • 36 integrated indexing positions
Gross Weight484.000
Net Weight414.000
Ready For Web (US)Yes
Prop 65Cancer and Reproductive Harm
Motor Amps5
Distance Between Centers (In.)40
Quill Travel (In.)4-1/4
Prewired Voltage (V.)230
Assembled Machine Dimensions (In.)73 x 52-1/2 x 20
Outboard Turning#N/A
Tailstock Bore (In.)3/8
Swing Over Bed (In.)18-1/2
Number of Indexing Positions36
Spindle Bore (In.)5/8
Motor Power (HP)2
Quill TaperMT2
Spindle Thread (In./TPI)1-1/4/8 TPI
Motor Phase (PH)3
Spindle SpeedsHigh 120-3200/Low 40-1200
Centerline of Spindle to Floor (In.)39-1/4; 43-1/4 w/risers
Spindle TaperMT2
Headstock MovementSlide
Motor Voltage (V.)230
Speed Range40-3200
Swing Over Tool Rest Base (In.)14-1/4
Size (In.)#N/A
Recommended Circuit Size (Amps.)20
Bed ConstructionCast Iron
Style (Type)#N/A
Wiring Remarks230v, 1ph input only
Outboard External Threads (In. x TPI)#N/A
Bed Gap (In.)1-3/4
