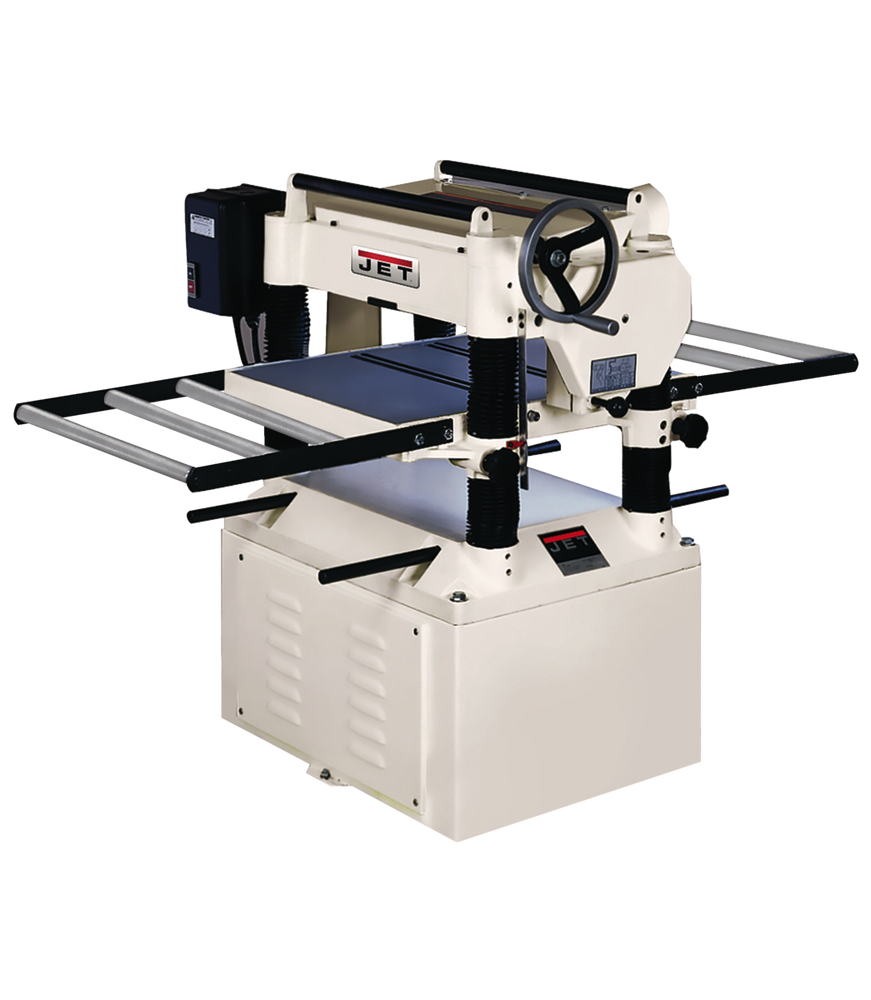

JWP-208-1, 20" 3HP, 1Ph Planer

by Jet
SKU 708528
  • Four high-speed steel cutter knives produce faster, smoother cutting
  • Heavy-duty cast iron and steel construction for added strength and durability
  • Two-speed gear box with automatic chain tensioner lets you adjust the feed rate to meet your needs
  • Large, cast iron, precision ground table for precise workpiece support
  • Powerful 3 HP TEFC induction motor with three V-belt transmission for smooth and consistent power
  • Sets of three steel infeed and outfeed rollers to help in the prevention of snipe
  • Positive gear drive moves table quickly and accurately
  • Work table is precision-ground and polished for consistently smooth operation
  • Large handwheel with positive gear drive allows for quick and accurately table adjustments
Gross Weight765.000
Net Weight640.000
Ready For Web (US)Yes
Prop 65Cancer and Reproductive Harm
Movement - Horizontal (In.)
Segmented Infeed Roller Diameter (In.)
Cutterhead Speed (RPM)5000
Maximum Depth of Cut (In.)
Feed Rate (FPM)24/31
Outfeed Table Length (In.)
Motor Power (HP)3
Knife Size (L x W x T)
Dust Collection Minimum CFM Required (CFM)400
Number of Speeds
Number of Knives4
Digital Readouts
Maximum Planing Thickness (In.)8
Distance Between Rollers - Center to Center (In.)
Recommended Circuit Size (Amps.)
Outfeed Roller Diameter (In.)
Maximum Height of Rollers Parallel to Tabletop (In.)
Cutterhead Diameter (In.)3-3/16
Motor Amps14
Cuts Per Minute
Range of Speeds
Dust Port Outside Diameter (In.)5
Bed Rollers Adjustable from Front
Motor Phase (PH)1
Table Height from Floor (In.)
Table Size with Extensions (L x W) (In.)
Prewired Voltage (V.)230
Movement - Vertical (In.)
Number of Rollers
Type of Cutterhead
Maximum Planing Width (In.)20
Column Diameter (In.)
Minimum Planing Length (In.)6-3/4
Wiring Remarks
Motor Voltage (V.)230
Infeed Roller Diameter (In.)
Style (Type)SV_1375591258781
Table Support
Maximum Full Width Depth of Cut (In.)3/32
Table Size (L x W) (In.)25-3/4 x 20
