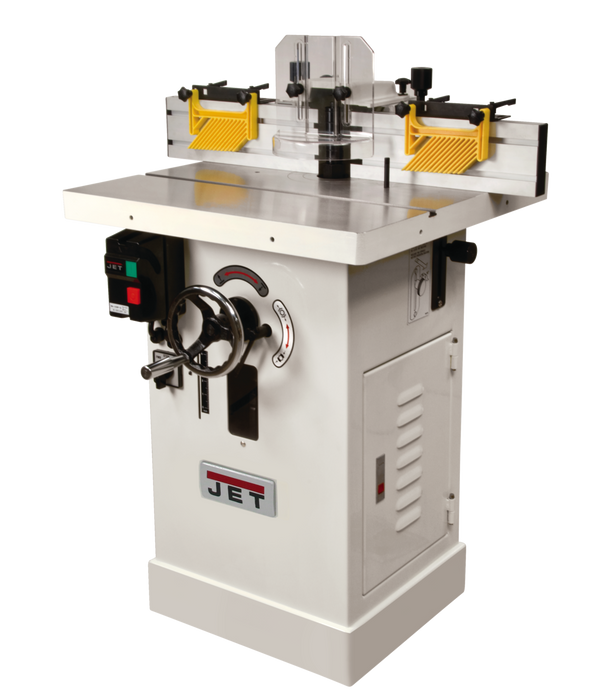

JWS-25X, JET Shaper, 3HP, 1PH

by Jet
SKU 708309
  • Two-speeds let you select the best speed and torque for different cutter diameters
  • Independently adjustable left and right fences, standard with a micro adjust control for precise positioning
  • Large 25 X 25-1/2 precision ground cast iron table provides a durable work area
  • V-belt transfers maximum power to the spindle
  • Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
  • Reversible spindle speeds for diverse shaping jobs
  • Powerful 3HP, 1Ph motor with magnetic controls
  • Starting pins for irregular shaping
  • Extra large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
  • 4 Dust port built into fence for convenient hookup to any dust collection system
Gross Weight381.000
Net Weight331.000
Ready For Web (US)Yes
Prop 65Cancer and Reproductive Harm
Spindle Size Under Nut (In.)2-13/64, 3-3/16
Router Bit Collet IncludedNo
Spindle Speed (RPM)7500/10000
Dust Collection Minimum CFM Required (CFM)600
Spindle Tilt (Deg.)
Table Opening Diameter (In.)6-9/32
Motor Power (HP)3
Spindles Included
Motor Phase (PH)1
Maximum Spindle Diameter (In.)1/2, 3/4
Recommended Circuit Size (Amps.)30
Wiring Remarks
Sliding Table Size (In.)
Maximum Diameter Cutter Below Table (In.)6
Table T-Slot (In.)3/4 x 3/8
Spindle Travel (In.)3-1/2
Table Travel (In.)
Table Height from Floor (In.)33
Fence Size (L x H) (In.)14-1/2 x 4-3/4
Electrical ControlsYes
Prewired Voltage (V.)230
Maximum Diameter Cutter Above Table (In.)7
Motor Voltage (V.)230
Dust Port Outside Diameter (In.)4
Motor Amps16
Digital Readouts
Fence Travel (Major and Minor) (In.)4-1/4, 15/16
Table Insert Opening Diameter (In.)2-9/16, 4-21/64
Style (Type)
Table Size (L x W) (In.)25-1/2 x 25
Table Inserts (In.)2
