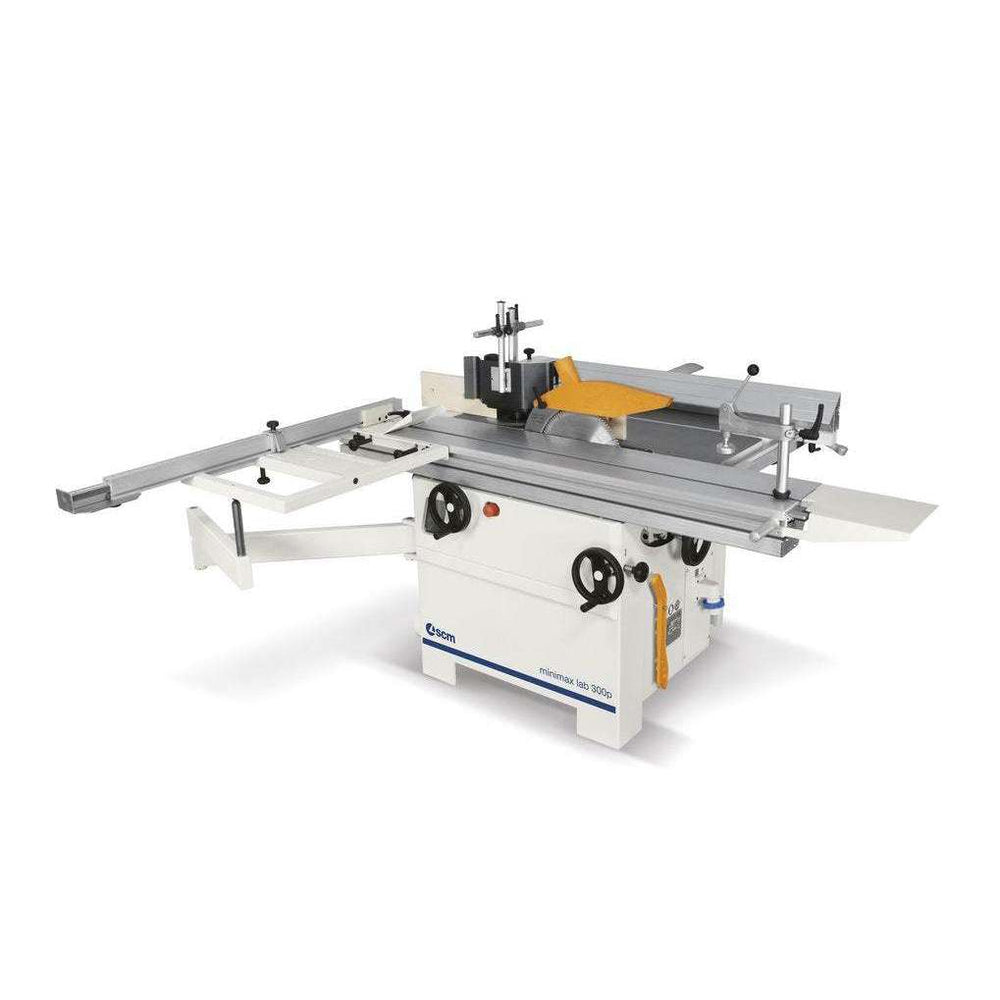

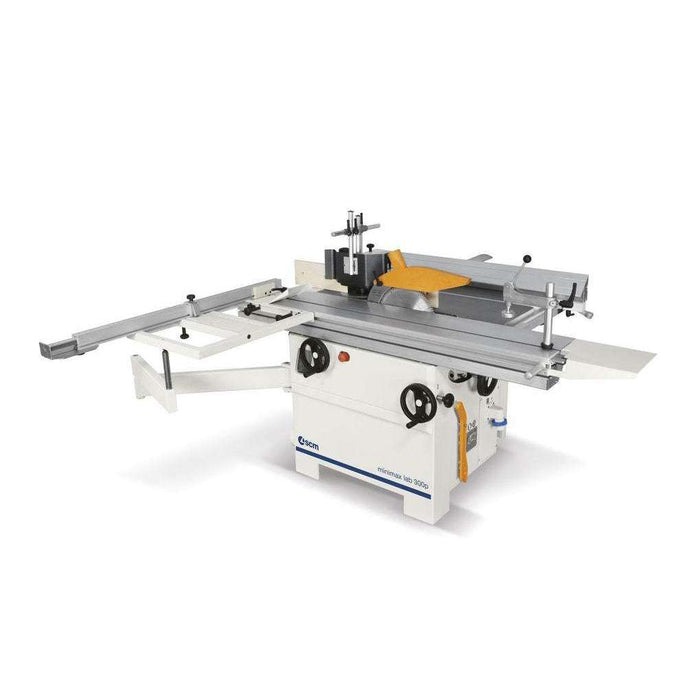

SCM Minimax LAB 300P Tersa Combination Machine, INCLUDES FREIGHT

by Minimax
$12,985.00
SKU WSI-MINIMAXLAB300P

Universal combined machine with all minimax quality, at the most affordable price, ideal for demanding hobbyists and crafts woodworking workshops.

The distinctive features of all our combined woodworking machines are:

EASE-OF-USE

The system of surfacing worktable opening toward the inside of the machine guarantees an excellent ergonomics.

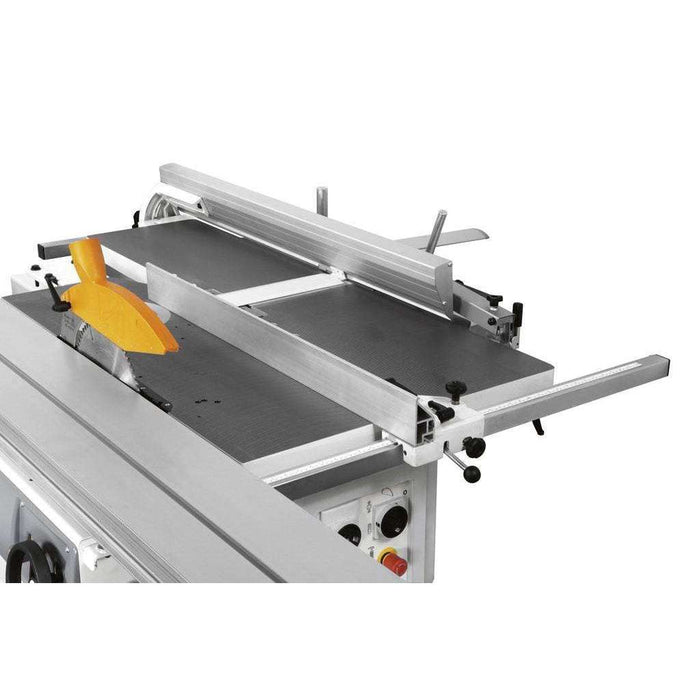

All woodworking combined machines are equipped with anodized-extruded guides with support and rapid locking and an effective feeding system for the planer. These features make these machines easy-to-use for any type of machining.

FLEXIBILITY

Maximum flexibility when using the cutters, with the spindle moulder unit equipped with various speeds. The machines are equipped with spindle moulder hood with micrometric adjustment, very useful for moulding working.
The tenoning operations (option) are easy tank to the aluminum carriage and the dedicated speed

PRECISION

A tiltable saw unit, with sliding of the anodized aluminum carriage next to the blade for a better cutting precision are only some of the standard equipment of the minimax woodworking combined machines.
The lifting and tilting of the unit with practical hand wheels guarantee an easy setting among different machining.

SAFETY

Rich CE safety devices, like the shaft protection to carry out shaping operation and working on curved profiles. The machining on the planer is very easy thanks to the large dimensioned surfacing tables

Best Cutting

New saw unit with a blade that has a maximum diameter of 315mm with the scoring blade installed. The new scoring unit can be supplied on request and can easily be adjusted from outside the machine.


Perfectly Stable Support

Easier, more precise cutting is possible thanks to perfectly stable support guaranteed, even for large work pieces, by the 270mm wide sliding table.



Higher Efficiency

During the changeover from surfacing to thicknessing the surfacing tables open towards the inside of the machine with a 90° angle, facilitating thicknessing. Work pieces with a maximum height of 220 mm can be machined to the thicknesser. The new design of the dust-conveyor, protecting the cutter block, is specifically intended to further increase system safety and efficiency.



Superior Performance

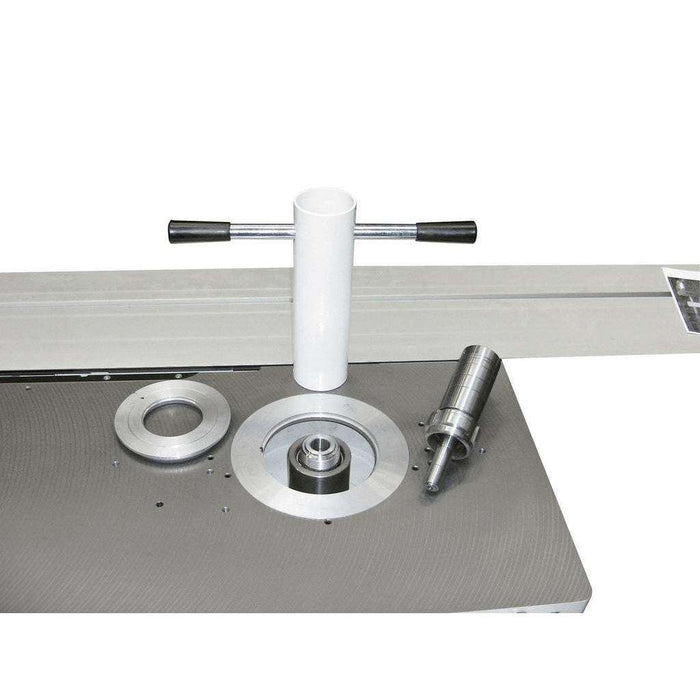

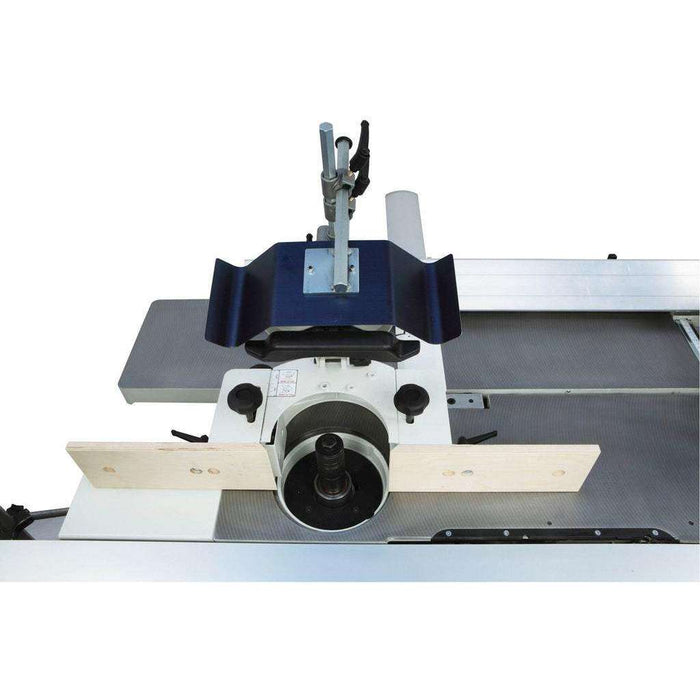

The spindle moulder unit has a spindle with a useful working length of 100 mm. A tool with a maximum diameter of 180 mm can be retracted under the worktable. For machine maximum safety and increased flexibility, a spindle moulder protective hood for shaping is supplied as standard.


Minimax Lab 300P
Cutterhead working width mm / inches 300 / 12
Jointer bed length mm / inches 1300 / 51
Max. sawblade diameter with scoring blade installed mm / inches 315 / 12
Max. sawblade projection from table at 90°/45° mm / inches 100 / 78 3.94 / 3.07
Cutting width on parallel fence (Rip capacity) mm / inches 800 / 31.5
Max. useful spindle length mm / inches 100 / 4
Max. tool diameter when profiling mm / inches 210 / 8.27
Spindle moulder speed rpm 4000 / 7000 / 9000
(3x) Single-phase motors Hp 3.4
Max. squaring stroke of sliding table saw mm / ft 1600 / 5.5

MINIMAX CU 410E FULL COMBINATION MACHINE VIDEO

The sliding table saw, shaper, jointer and planer units on the Minimax Lab 300P are demonstrated on the larger combination unit showcased in this video.
