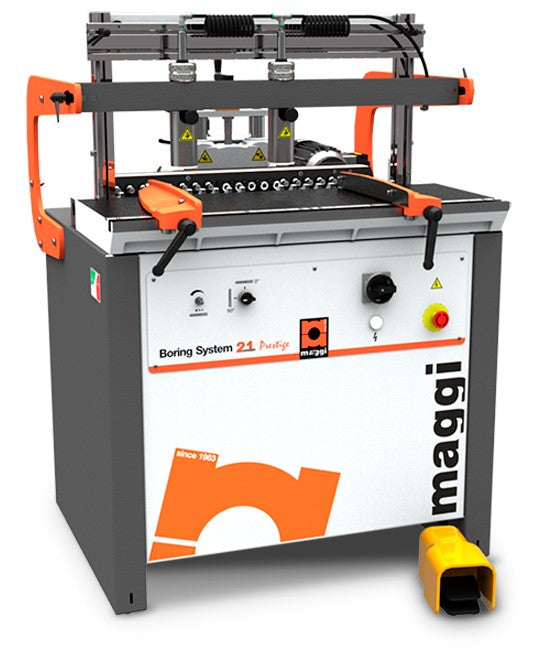

Maggi System 21 Prestige Construction/Line Borer
Flat Rate Shipping in the Continental United States.

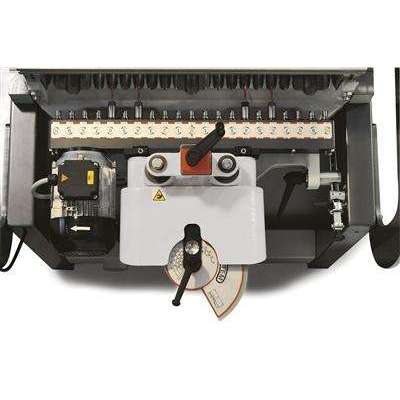

The Maggi System 21 Prestige Boring Machine provides a 21 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle;
Accurate positioning of the boring unit to the table with digital readout.
3-Phase Option. Single Phase also available.
0 to 2.5" adjustable drilling depth with patented spiral setting device.

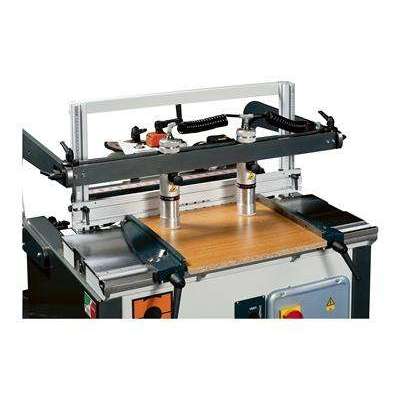

(2) patented quick release material clamps with auto-setting to firmly hold material to table; powerful 2 HP motor; 34" x 15" cast iron table.
Cast iron side fences with ruler and magnifying glass.
Mirror imaging device to ensure quick and accurate set-up of the side fences.

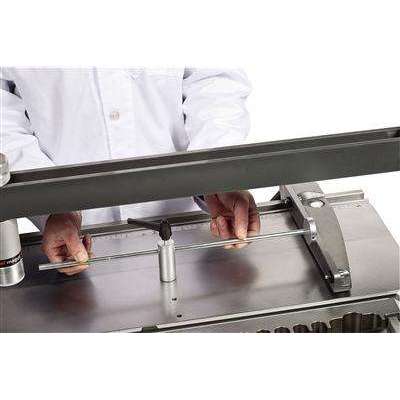

120" line boring fence with (2) stops; foot actuated pneumatic clamps and drill cycle.
Includes: Magnetic starter with overload protection and (21) quick change chucks.
Dust Outlet: 3"; Net weight: 605 lbs; Dimensions: 40.5" x 40.5" x 50" Tall;
Crated Dimensions: 42.2" x 37.4" x 40.5" Tall; Crated Weight: 685 lbs
Made in Italy.
