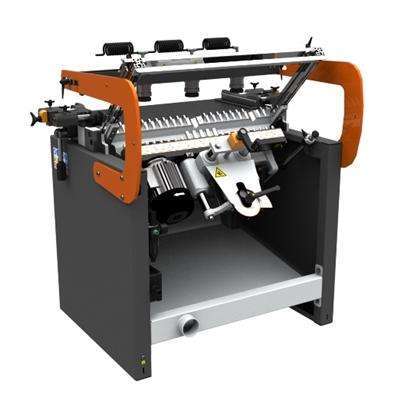

Maggi System 35 Construction Line Borer.

by Maggi
$13,550.00
SKU
The Maggi System 35 Boring Machine provides a 35 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle

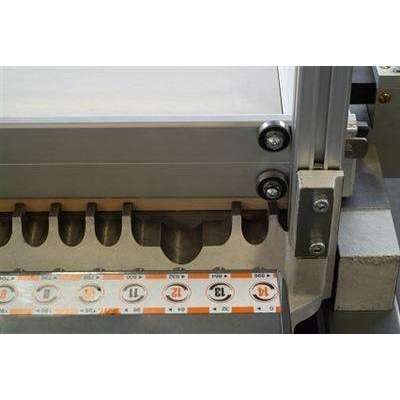

  • Accurate positioning of the boring unit to the table with digital readout

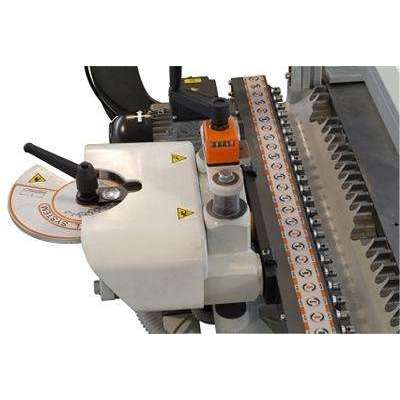

  • 0 to 3.25" adjustable drilling depth with patented spiral setting device
  • (4) patented quick release material clamps with auto-setting to firmly hold material to table
  • (2) Powerful 2 HP motors
  • 52.4" x 16.2" cast iron and MDF table
  • The MDF portion of the table is treated with non-scratch paint for highest operator comfort and to help prevent scratching of the panel

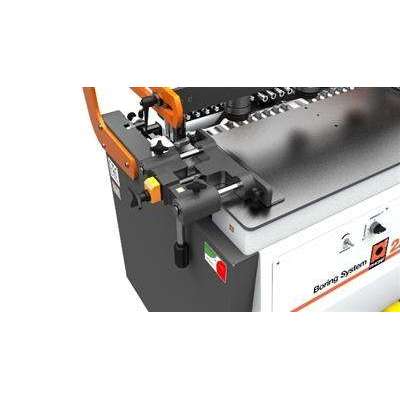

  • Side fences with mechanical digital readout for quick and accurate setting

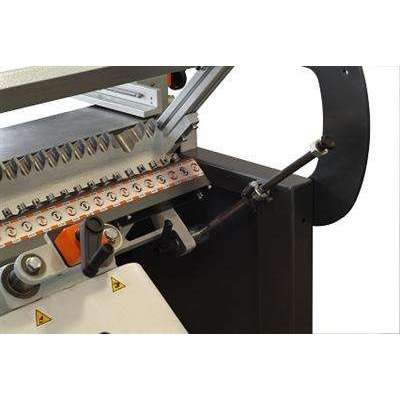

  • 120" line boring fence with (4) stops
  • Foot actuated pneumatic clamps and drill cycle
  • Includes: Magnetic Starter with overload protection and (35) quick change chucks
  • Dust Outlet: 3"
  • Voltage: 230V 3-Phase
  • Net weight: 705 lbs
  • Dimensions: 65.75" x 38.9" x 50" Tall
  • Crated Dimensions: 59.8" x 37.4" x 40.5" Tall
  • Crated Weight: 995 lbs.
