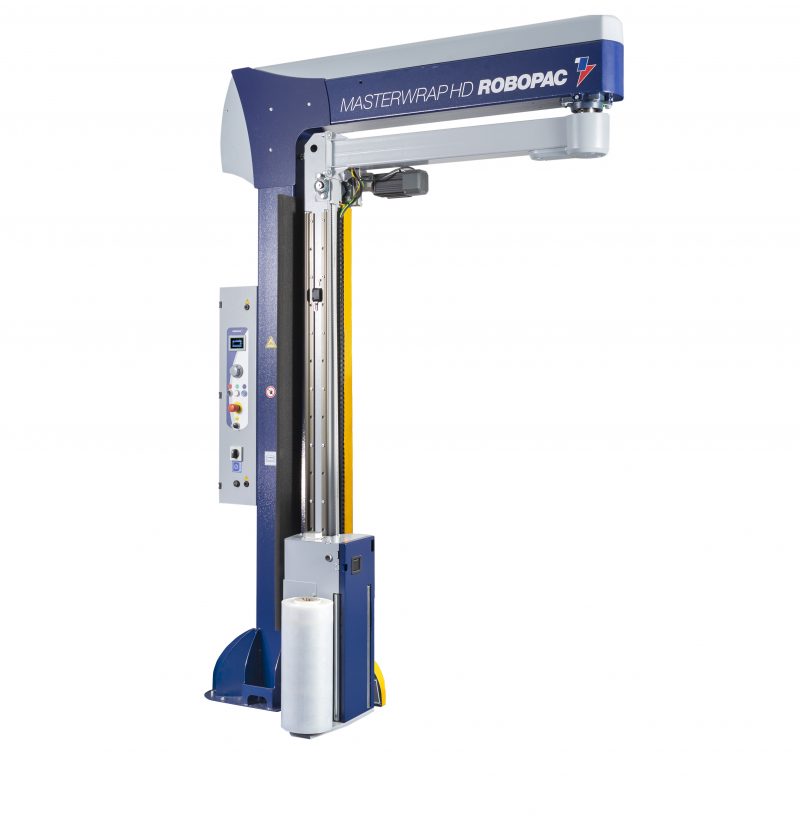

Masterwrap HD Semi-Automatic Rotary Arm Stretch Wrapper

by RoboPac

The Masterwrap HD XL is an affordable semi-automatic rotary arm stretch wrapping machine designed for unstable and heavy products.

  • Easy to use intuitive color interface
  • Easy film insertion system and 250% pre-stretch
  • Industry 4.0, R-Connect ready


Film Delivery System:

  • Fixed at 250%
  • Height Sensing: Automatic Photo Eye
  • Film Threading: Patented S-Pattern
  • Standard Film Width – 20”

Operator Interface:

  • 3.5” Color LED and JOG Dial Programmable Selector
  • 6 Programmable Wrapping Menus

Safety Features:

  • Safety Bumper Warning Light
  • Safety Alarm
  • CE Compliant, UL, CUL

Utility Requirements:

Voltage: 120V, 60 Hz, 1 PH

Warranty: 1 Year

Robopac Masterwrap HD XL Technical Specs

Robopac Masterwrap HD XL Technical Specs 2


R-Connect, available for this machine is our latest innovation was developed to provide usage and performance data via the cloud, enabling you to meet Industry 4.0 demands by putting performance monitoring & optimization at your fingertips. Utilization drastically reduces downtime by giving you informational transparency, allowing you to connect with your machines remotely to investigate alarms, adjust parameters, & respond promptly. This Industry 4.0 innovation empowers you with actionable insight to continuously improve performance, cost savings, & automation.



New 3.5 inch control panel with color graphic display.

Masterwrap Control Panel


The PGS film carriage is fixed gear 250% power pre-stretch and the force to load (tension) is controlled by a strain gauge, adjusted on the control panel. There are also options of 150%, 200% gears on this machine.

Masterwrap PGS Carriage

Masterwrap HD Plus XL Rotary Arm Stretch Wrapper Video
