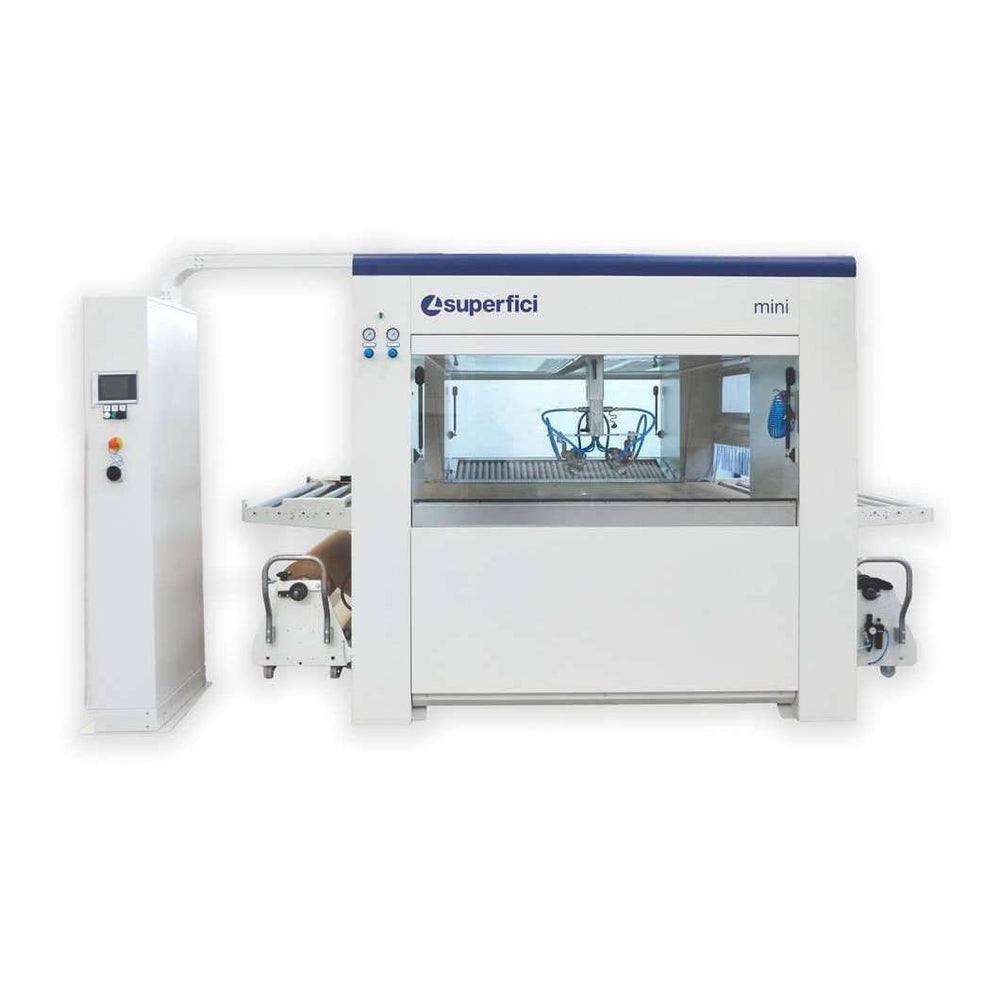

Superfici Mini One-Arm Spray Machine


The Mini One-Arm Spray Machine is the perfect solution for those who have sprayed by hand until today. Plug & Spray or stand-alone. All the Advantages of the automatic spraying in a small, efficient, and easy cabin. The price is very competitive, ensuring shipment and installation costs remain low. The machine can also be equipped with a speedy cup on the spraying arm for small batches.

FLEXIBILITY: Easy management of small batches with frequent color changes. Ability to spray flat or shaped panels. The integrated software recognizes each panel’s dimensions.
FAST: The system is integrated with a paper conveyor which rolls and unrolls itself automatically. The lacquer, color change, and gun replacement options are incredibly fast.
ACCURACY: Spraying arm installed is on high precision linear guide with brushless motor drive for precise and smooth motion.
Working width 1300 mm / 48"
Workpiece max. thickness 90 mm / 3.5"
Working height 900 mm / 36"
Feed speed 1 - 3 m / min / 3-10 fpm
Conveying system Paper
Electronic control PLC
