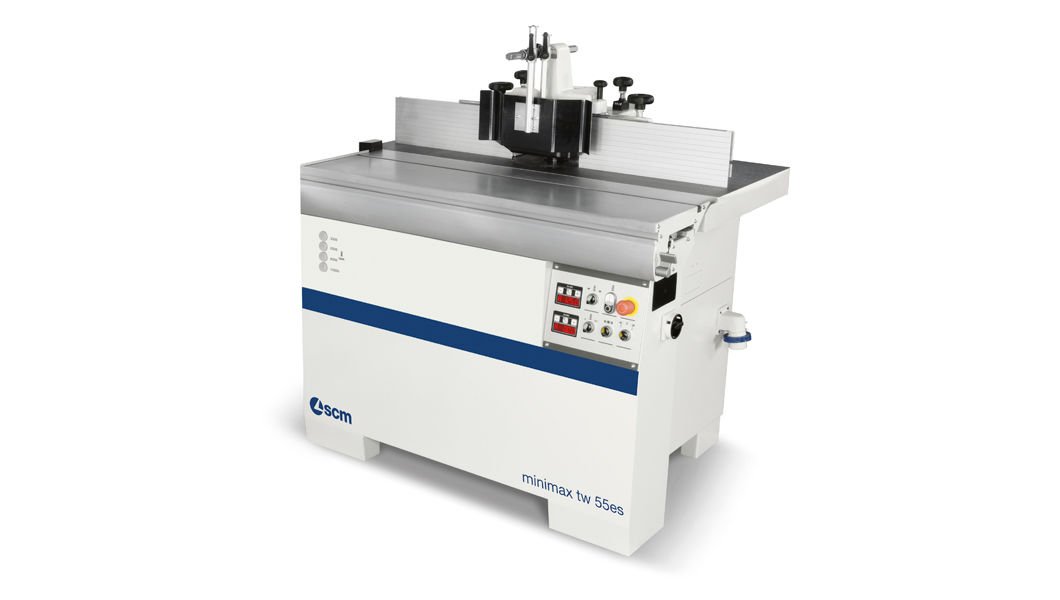

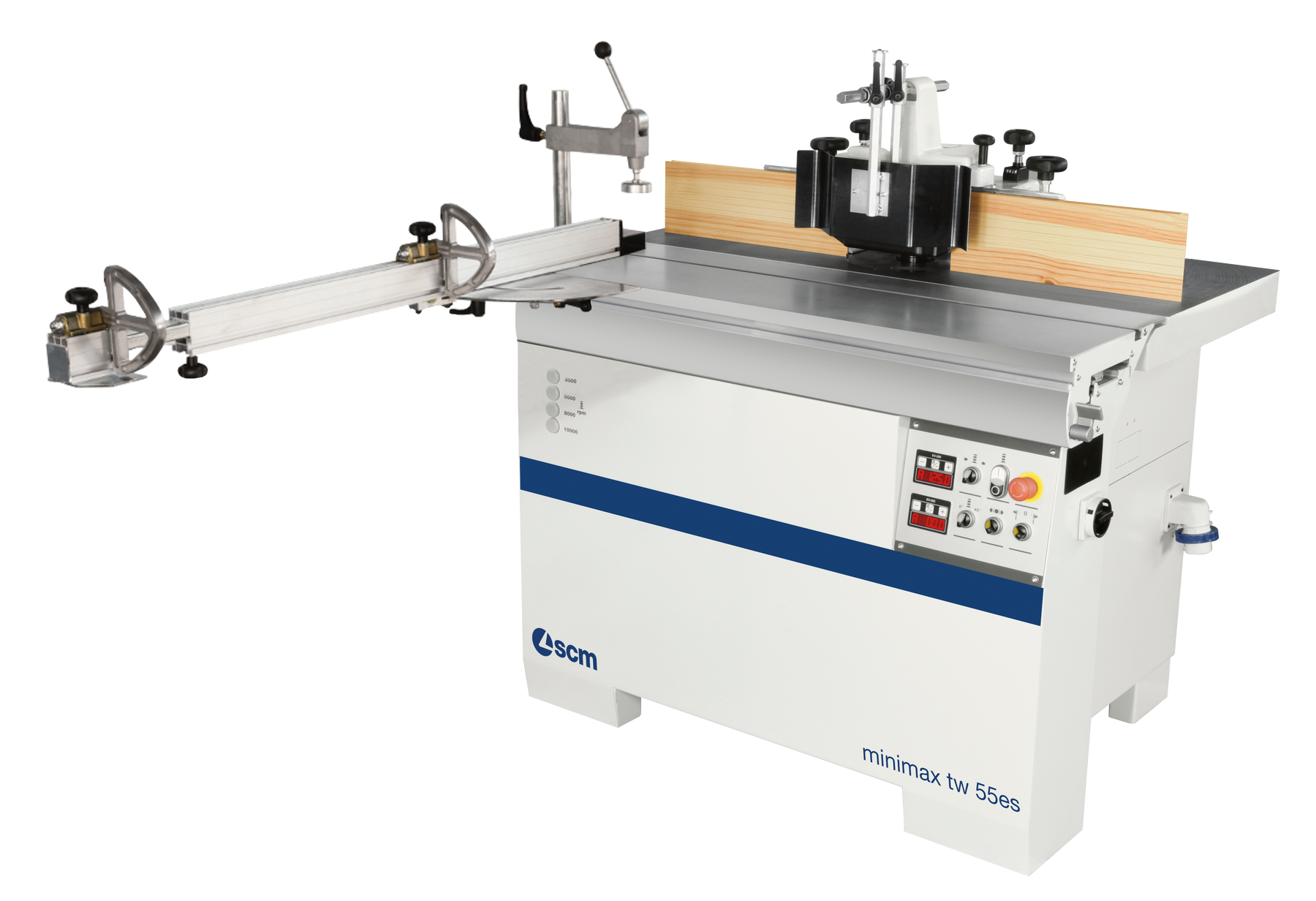

SCM Minimax TW 55ES Tilting Shaper (INCLUDES FREIGHT)
The right spindle moulder for demanding craftsmen and carpentries, thanks to its customization and flexibility.
The Mini Max TW 55es is the culmination of years of experience in manufacturing quality solid wood SCM products. This 4-speed heavy duty machine is standard with both a sliding table and tilt! The slider has hardened steel guide ways and precision bearings, so it incorporates the exact technology found in our top selling sliding table saws! The hood has memory pins so if removed, it will go right back into the same position, making this shaper accurate and repeatable.
Maximum stability and rigidity in every working condition thanks to a big cast iron spindle moulder unit and a sturdy base in single-block steel. Great versatility with the spindle moulder with 4 speeds and available in fixed or tilting version. Best support in all machining, thanks to the 330 mm width sliding table.
Maximum stability and rigidity in all working conditions, thanks to a large spindle moulder column made entirely of cast iron. The 4 standard speed are ideal for any type of machining, from moulding to routing and tenoning, with the possibility to fit tools upto 320 mm of diameter (300 mm no CE).
As option it is available the spindle moulder hood that uses a system for adjusting the guides with a rack and it is fitted with a mechanical digital readout. Thanks to the system of memories the hood can be removed and repositioned without losing the machining position. The maximum tool diameter during moulding operations is 240 mm.
Unrivalled cutting finishing
Optimal support also to larger pieces, with the new sliding table 360 mm wide. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminum riveting.
|Mini Max TW 55es|
|Surfacing tables total length||mm||125|
|Spindle moulder speed (a 50 Hz)||rpm||3500/6000/8000/10.000|
|Max. tool diameter when profiling||mm||210 ÷ 240|
|Max. tool diameter lowered under the table at 90°||mm||240|
|Max. tool diameter when tenoning||mm||320 (300 no CE)|
|Three-phase motors starting from||kW/Hz||5 (6) / 50 (60)|
