Production Level Performance

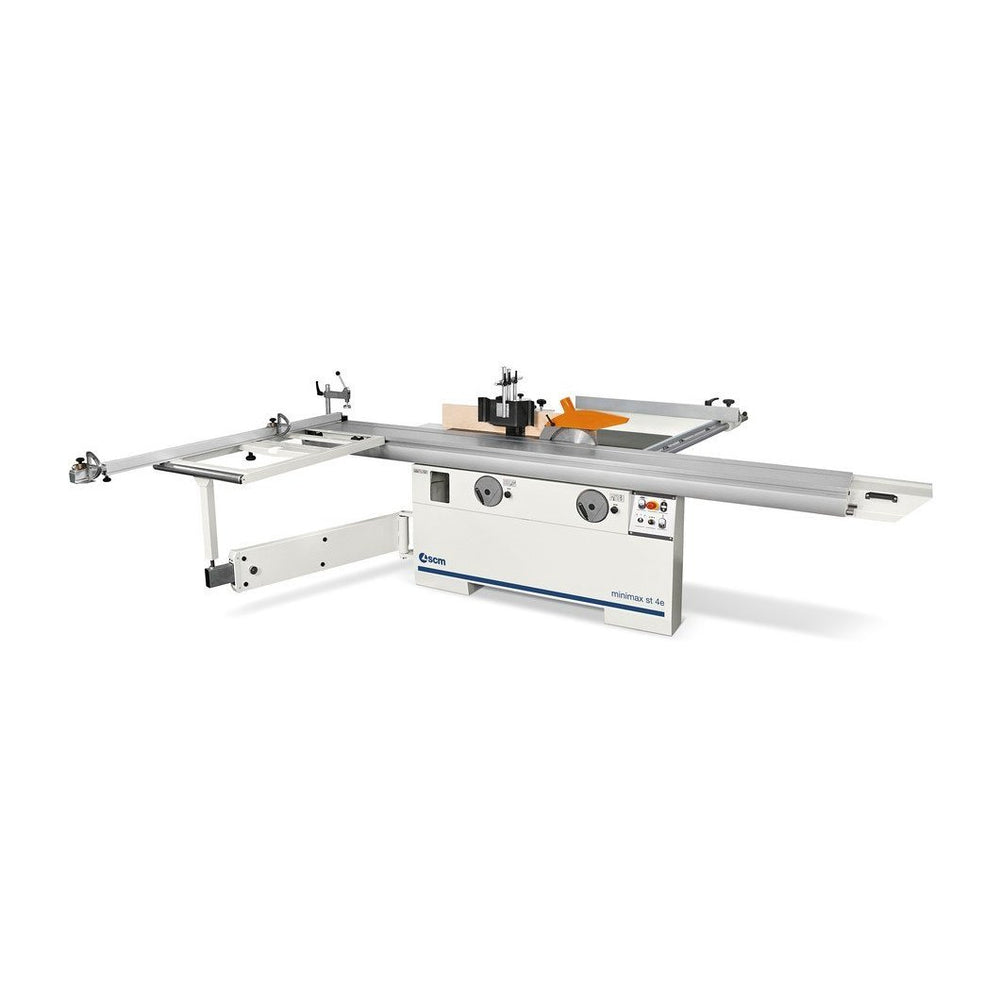

Saw-spindle moulder machine for the demanding craftsmen and carpentries looking for flexibility and an “elite” quality finishing.
Production-level performance. 8.5' sliding table, double-hung cast iron saw unit with scoring, rearward tilting shaper spindle for use with power feeder, digital-mechanical readouts, and many other key features.
Stabilidy and rigidity
The new saw unit closed loop structure is made of a heavy cast iron and is supported firmly under the table by two lateral supports in a crescent shape. These solutions give strength and rigidity, guaranteeing perfect cutting results. The saw unit can be equipped, on request, with scoring blade for perfect cutting even on veneered panels. The scoring blade is an optional available in two versions: with belt transmission from the main motor and with an independent motor 0.75 HP (0.55 kW). The maximum diameter allowed for the main saw is 315 mm with scoring blade mounted.
Precise and silent
Optimal support also to larger pieces, with the sliding table 360 mm wide. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminum riveting.
Maximum stability and rigidity in all working conditions, thanks to a large spindle moulder column made entirely of cast iron. The 4 standard speed are ideal for any type of machining, from moulding to routing and tenoning, with the possibility to fit tools upto 275 mm of diameter.The spindle is surrounded by a cast iron “cup” to protect the internal mechanical components from shavings and sawdust.
As option it is available the spindle moulder hood that uses a system for adjusting the guides with a rack and it is fitted with a mechanical digital readout. Thanks to the system of memories the hood can be removed and repositioned without losing the machining position. The maximum tool diameter during moulding operatrions is 240 mm.
|Max. sawblade diameter with scoring blade installed||mm / inches||315 / 12|
|Max. sawblade projection from table at 90°/45°||mm / inches||100/70 3.94/2.75|
|Cutting width on parallel fence (Rip capacity)||mm / inches||1270 / 50|
|Max squaring stroke of sliding table saw||mm / ft||3200 / 8.5|
|Max. useful spindle length||mm / inches||125 / 3.5|
|Spindle moulder speed||rpm||1700/4000/7000/9000|
|Max. tool diameter when profiling||mm / inches||210 - 240 / 8.26 - 9.45|
|Max. tool diameter lowered under the table at 90°||mm / inches||240 / 9.45|
|Max. tool diameter when tenoning||mm / inches||275 / 10.82|
