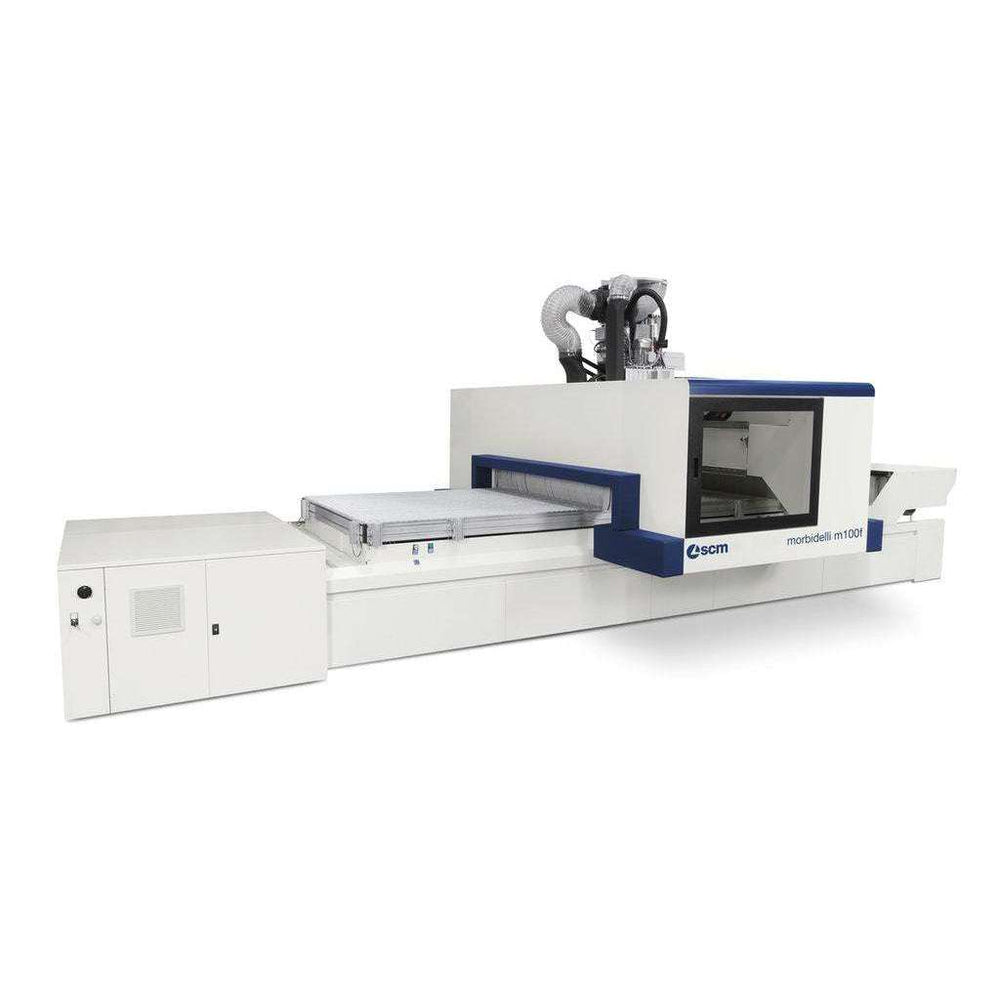

This highly modular machining centre provides answers to all the problems associated with woodworking and with Advantagesced materials processing.
Just a few clicks to design and manufacture pieces of any shape, the machine is run by the Suite Maestro which has specific modules for every production cycle.
Unique on the market in having an unrivalled price-performance ratio, it can be configured according to the customer’s needs and investment plan.
FREEDOM AT 360°:
Optimizing the space within your factory thanks to the ProSpace solution.
Maximum ergonomic load, the absence of perimetral protections allows the access to the work table from all sides of the machine.
ALL TOP QUALITY
Unmatched finishing thanks to the JQX (Just Quality eXtreme)
5-axis direct-driven spindle head which ensures the total absence of vibrations even with huge material removal at high speed and with the high-performance drilling heads with RO.AX (Rotoaxial spindle technology) spindles and rotation speed up to 8000 rpm.
60% time saving in drilling cycles thanks to the rapid working/cycle time and devices that reduce the idle times, as the FAST14 tool changer which takes less than 15” for the tool change.
ENDLESS MACHINING TYPES:
The machine can cope with all types of materials: from wood to plastic, from panel to the single element, from a kitchen door to a window, the configured solution for all your needs and your investment plan.

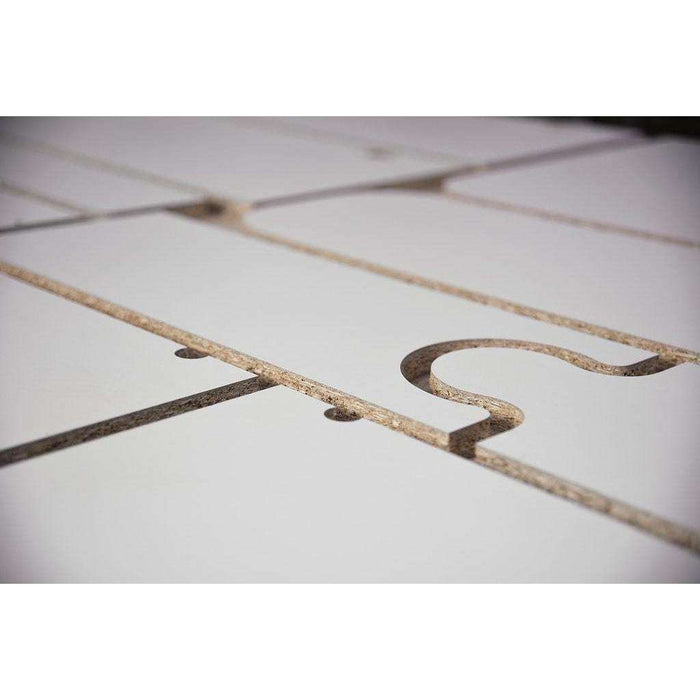

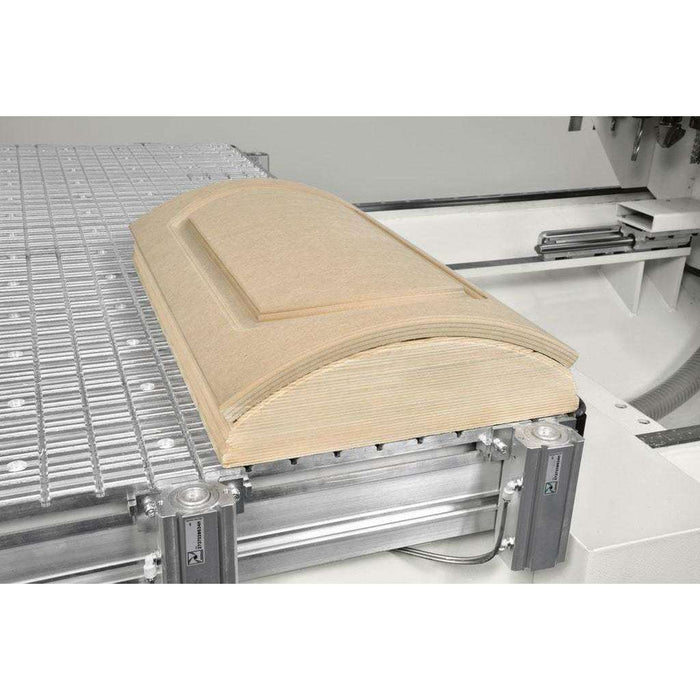

The unit can accommodate up to four machining units and the aluminium multi-function work table is designed to maintain a perfect planarity over time; it is ideal also for nesting machining.
|m100 f||m200 f|
|X-Y axes dimensions||mm||3110x1320
|Vectorial speed X-Y axes||m/min||56 (ProSpace)
|Z axis panel passage||mm||180||250|
|Motor power (max.)||kW (hp)||15 (20,5)||15 (20,5)|
|Rotation speed (max.)||rpm||24000||24000|
|Available tools on tool changer (max.)||places||44||60|
|Independent vertical spindles (max.)||n.||21||21|
|Independent horizontal spindles (max.)||n.||12||12|
|Rotation speed (max.)||rpm||8000||8000|
|Integrated blade in X, diameter||mm||125||125|
|0-90° blade unit|
|Motor power (max.)||kW (hp)||2,2 (3)||2,2 (3)|
|Rotation speed (max.)||rpm||6000||6000|
|Auxiliary routing unit|
|Motor power (max.)||kW (hp)||4,5 (6)||4,5 (6)|
|Rotation speed (max.)||rpm||18000||18000|
