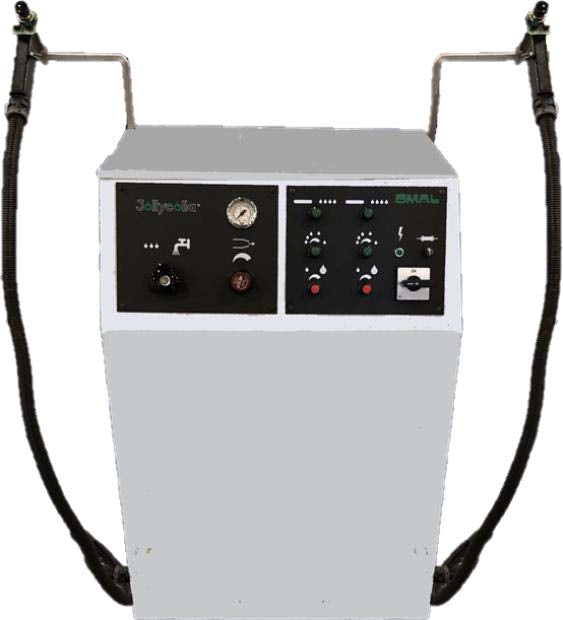

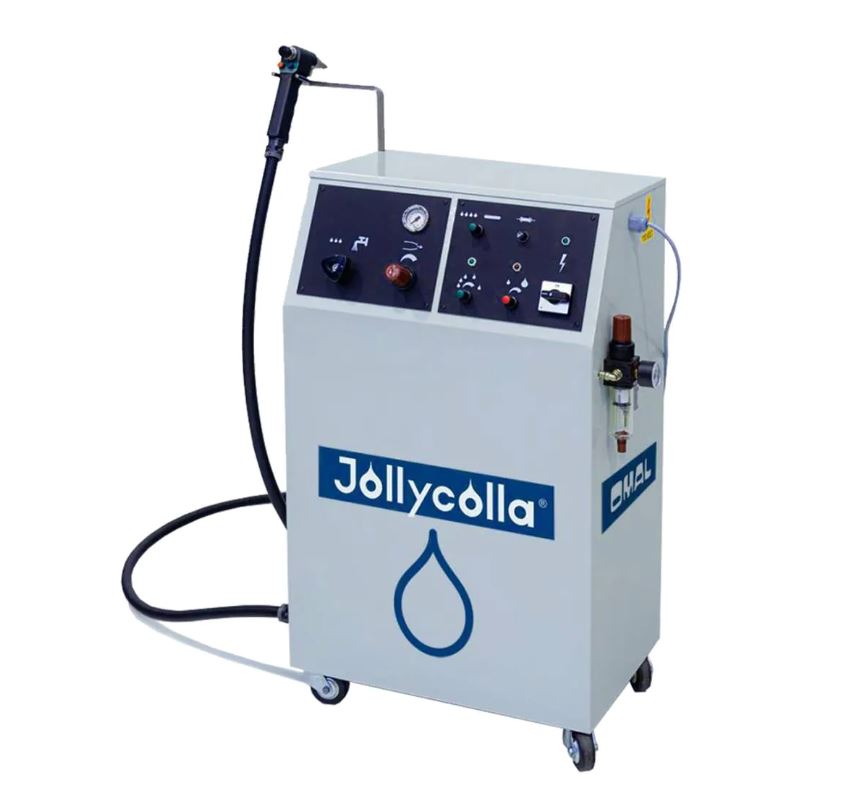

Omal Jolly Colla, S000102

Omal Jolly Colla, S000102

by Omal
$4,330.00
SKU

OMAL’s automatic multifunctional  glue dosing machine, Jolly Colla is  designed to spread dosed quantities  of glue making it the perfect  complement for dowel construction.

  • Continuous or impulse mode
  • Potentiometers control quantity
  • Electric push button

Two large pressurized tanks



Glue tank capacity:   8 liters
Washing tank capacity:   8 liters
Air pressure:   1-6 atm
Glue viscosity:   1500-4000 cps*
Minimum Glue PH   5**
Feed tube length:   3 m
Absorbed power:   250 W
Voltage upon request:   110 V Single phase
Control voltage:   12 V cc
Overall dimensions:   600x350x980mm
Packing dimensions:   900x400x700mm
Net weight:   40 Kg.
Gross weight:   45 Kg.
