Omga Radial Series RADIAL 1250/7

Omga Radial Series RADIAL 1250/7

by WSI Machinery
$18,526.00
Payment Calculator
Financing Request
SKU

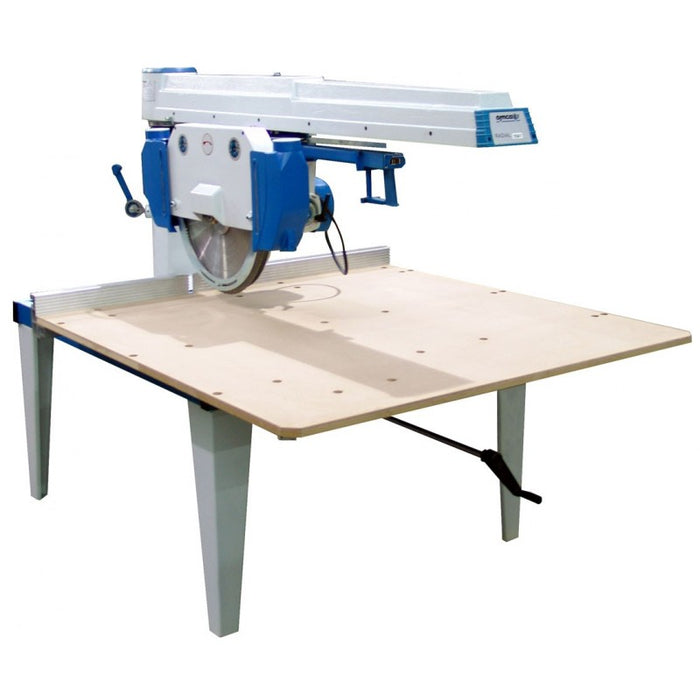

20" Radial Arm Saw 7HP Motor 49 7/32" Cross Cut Capacity 59" Rip Capacity. Cast Iron Arm.



MORE INFO

These precision radial arm saws are very versatile, multi-purpose machines. This versatility is due to the possibility of swiveling and tilting both in the horizontal and vertical axis which makes the machines especially suitable for furniture manufacturers, frame makers, sawmills and carpentry shops. There is a wide range of accessories available to adapt the machine to each and every requirement.

Max. Depth of cut 45 Deg. 4 7/8"
Motor power 7
Saw bore 1"
Saw Diameter 20"
Arbor speed RPM 3400
Bevel positive stops 0-45
Cross cut capacity 49 7/32"
Table Size 68"x44"
Max. dado capacity 1 3/4"
Max. Depth of cut -90 6 7/8"
Miter positive stops 45-0-45
Overall dimensions 80"x55"
Ripping capacity 59"
Shipping Weight Lbs. 1078
Crated Dimensions 79"x19"x55"
