Omga P3S Series RADIAL 600 P3S

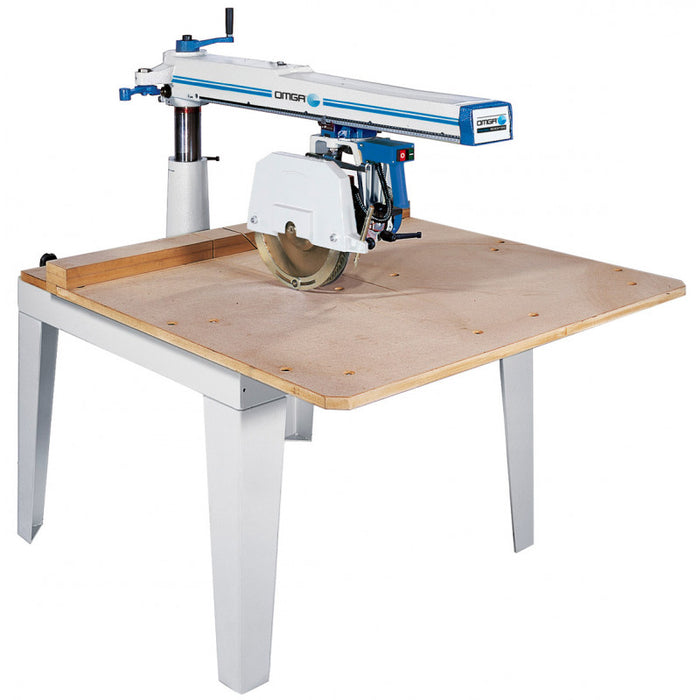

14" Radial Arm Saw 5HP Motor 24" Cross Cut Capacity 32 5/16" Rip Capacity. Cast Iron Arm.

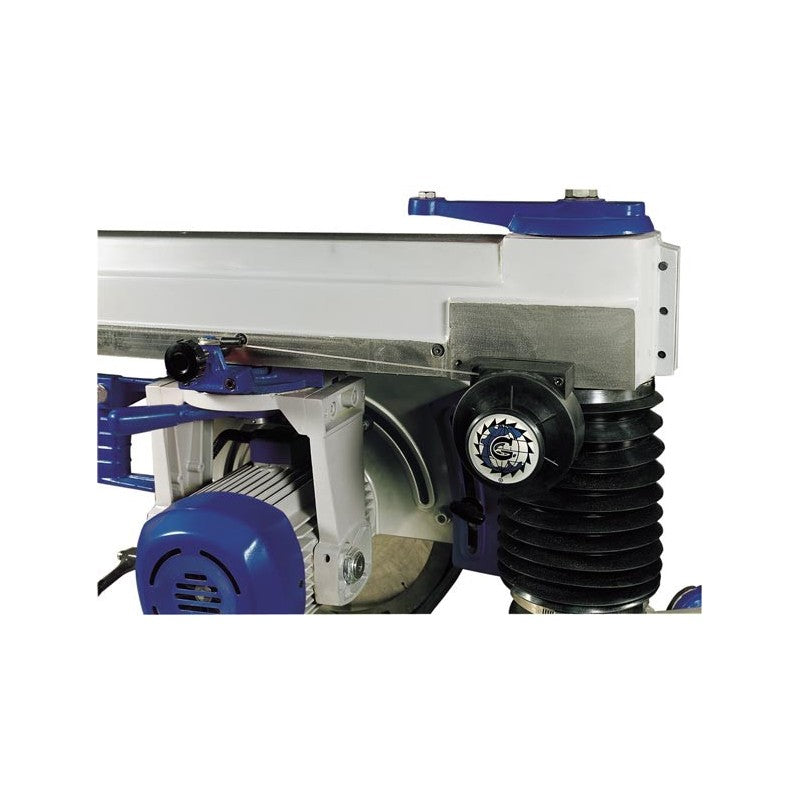

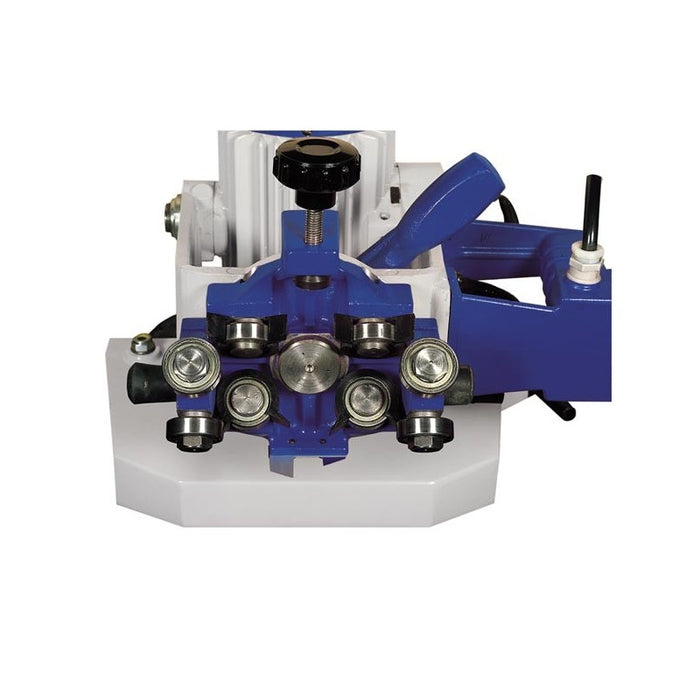

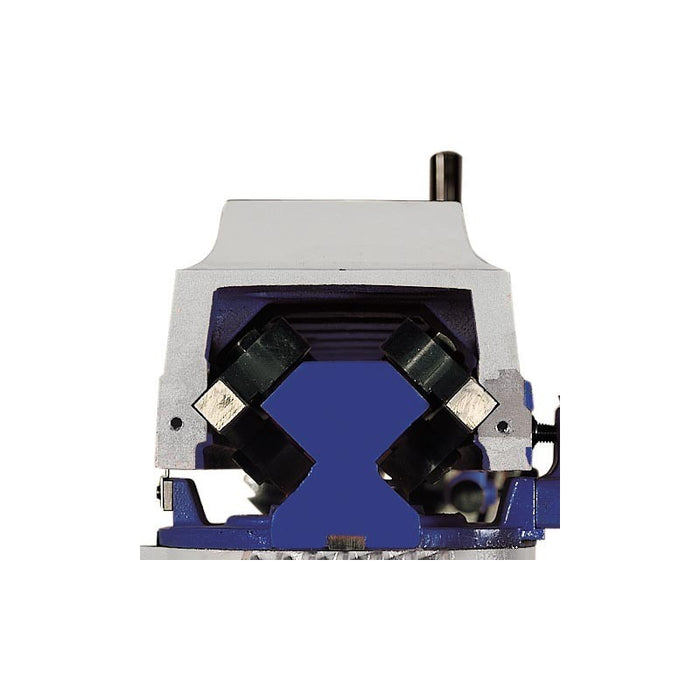

The Saw carriage is fitted with 8 bearing and runs on inserted steel tracks. The locking is self-centering at the main angle positions of the arm, the motor and the carriage, and all the intermediate angles can be locked manually. The unit is provided with standard overload protection with no-volt coil, automatic head reversal and motor brake.

Max. Depth of cut 45 Deg. 3 3/16"
Motor power 5
Arbor speed RPM 3200
Saw blade bore 1"
Saw blade diameter 14"
Bevel positive stops 0-45
Cross cut capacity 24"
Table Size 35"x31"
Max. dado capacity 1 1/2"
Max. Depth of cut -90 4 1/2"
Miter positive stops 45-0-45
Overall dimensions 35"x46"
Ripping capacity 32 5/16"
Shipping Weight Lbs. 400
Crated Dimensions 48"x37"x35"
