Omga Radial Series RADIAL 900/7

Omga Radial Series RADIAL 900/7

by WSI Machinery
$16,555.00
Payment Calculator
Financing Request
SKU

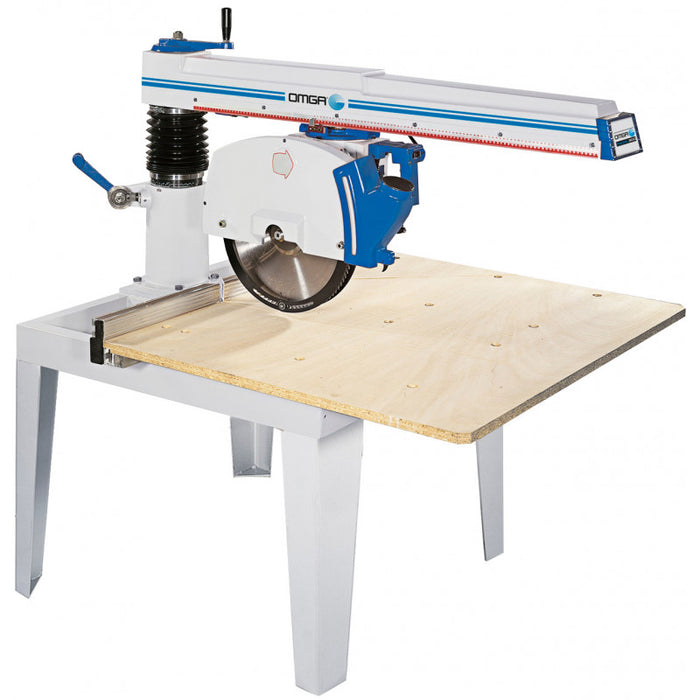

18" Radial Arm Saw 7HP Motor 35 1/2" Cross Cut Capacity 43 5/16" Rip Capacity. Cast Iron Arm.



MORE INFO

These precision radial arm saws are very versatile, multi-purpose machines. This versatility is due to the possibility of swiveling and tilting both in the horizontal and vertical axis which makes the machines especially suitable for furniture manufacturers, frame makers, sawmills and carpentry shops. There is a wide range of accessories available to adapt the machine to each and every requirement.

Max. Depth of cut 45 Deg. 4 3/16"
Motor power 7
Saw bore 1"
Saw Diameter 18"
Arbor speed RPM 3200
Bevel positive stops 0-45
Cross cut capacity 35 1/2"
Table Size 47"x39"
Max. dado capacity 1 1/2"
Max. Depth of cut -90 5 7/8"
Miter positive stops 45-0-45
Overall dimensions 59"x48"
Ripping capacity 43 5/16"
Shipping Weight Lbs. 800
Crated Dimensions 63"x19"x43"

Download Brochure
