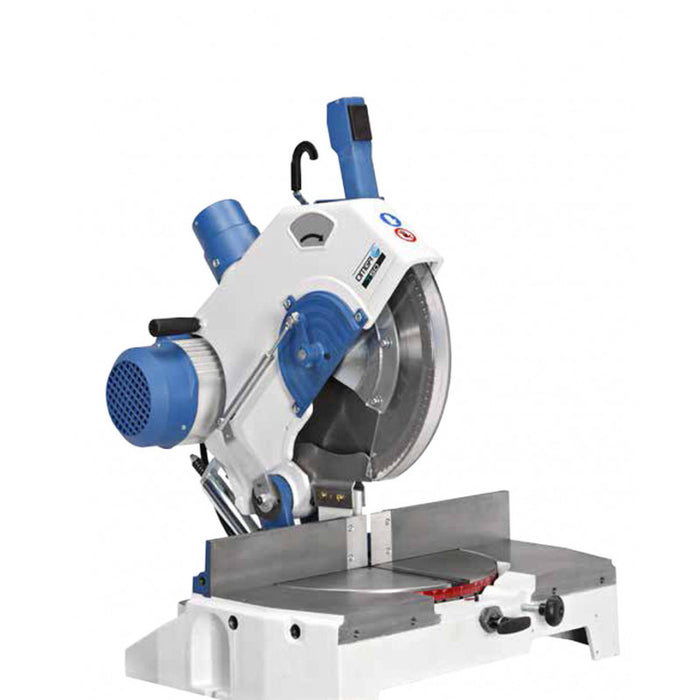

14" Mitre Chop Saw 3HP Motor Width Cutting Capacity 6 11/16" Thickness Capacity 4 5/16".
MORE INFO

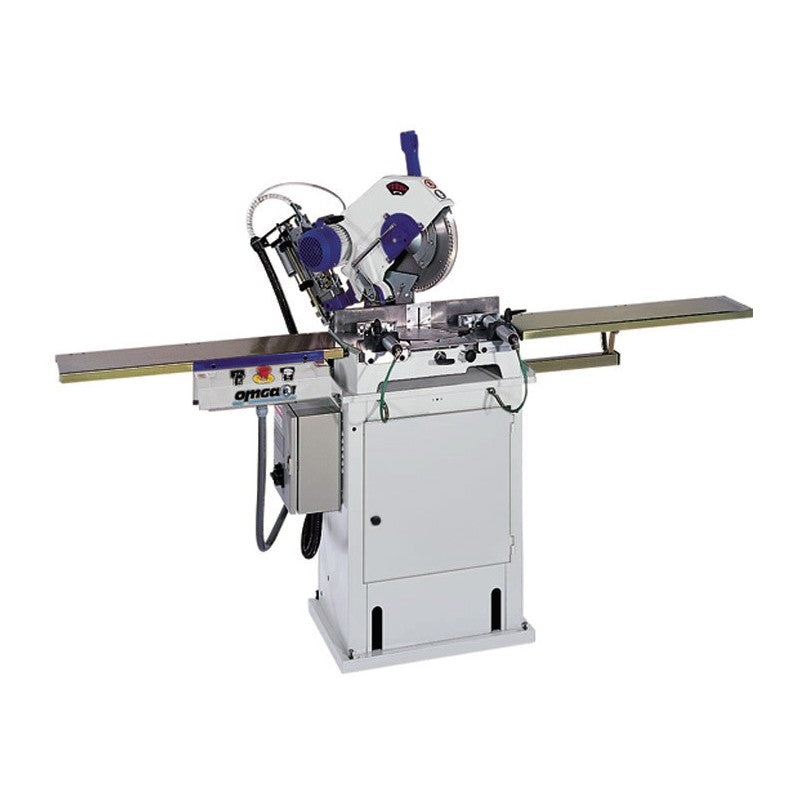

The heaviest duty of all model of OMGA's Precision Mitre Chop Saws (along with the T 53 370). It features a solid cast iron base and head construction. The rotating table rides on roller bearings for maximum smoothness and accuracy. Positive stops at 45, 30, 22 1/2, 15 and 10 degrees on both sides of the rotation and an independently fine tunable one at 90 degrees. A manual locking device for all the intermediate angles provides a great flexibility to this unit. The belt driven transmission and a powerful 3 HP induction motor make of the T 50 350 the ideal tool for heavy duty industrial usage. This machine is designed to be fitted with a wide variety of optional accessories to make it perfect for any application. This precision saw is a multi purpose machine suitable for use in general carpentry, for cutting moulding, picture frames, furniture components and any application requiring precision cutting.
Cross cut capacity 90 Deg. | 6 3/4" |
---|---|
Cross cut capacity 45 Deg. | 4 3/4" |
Max. Depth of Cut | 4 5/16" |
Max. Depth of cut 45 Deg. | N /A |
Motor power | 3 |
Max. Beveled Cross Cut | N /A |
Saw bore | 1" |
Saw blade diameter | 14" |
Arbor Speed RPM | 3200 |
Dust Chute Diameter | 3 1/8" |
Table Size | 23 5/8" X 17 1/8" |
Shipping Weight Lbs. | 222 |
Crated Dimensions | 26" X 25" X 30" |
