Omga Double Miter Saws TRF 527 NC


8.5" Double Mitre Chop Saw 1.5HP Motors Width Cutting Capacity 2" Thickness Capacity 1 1/2" Length Capacity 7'10".

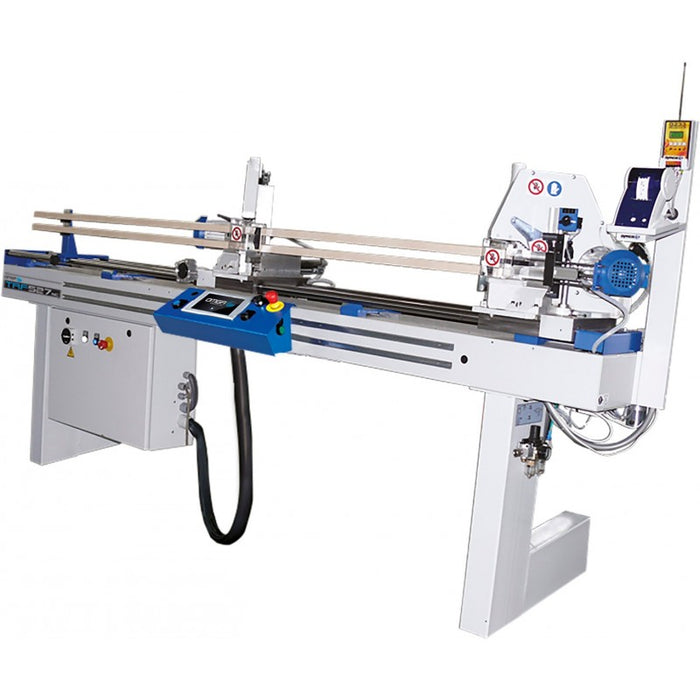

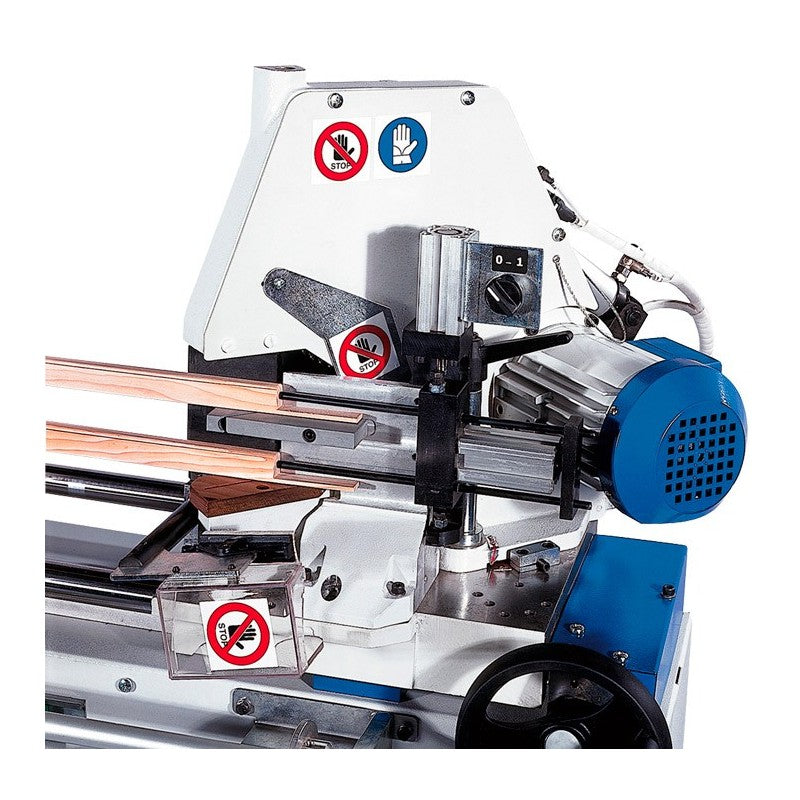

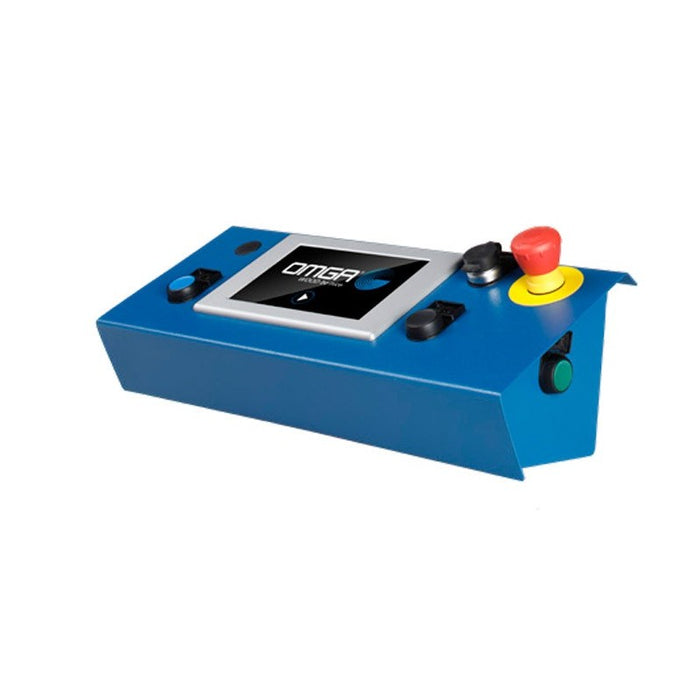

The TRF 527 NC is a double mitre saw suitable for cutting glass beading strips as well as other materials for mitres and straight cuts. The right head is fixed and the left head is moveable through a motorized transmission system. The onboard controller counts on a 7" Touch-Screen Display, which allows the operator to position the moveable the head, by simply entering the desired position. The left head is positioned on ball bushings and slides on hardened steel guides, which makes the transition easy and precise. Both heads are equipped with two fences placed at different levels to allow the cutting of two strips at once. The intermediate fence can be removed to allow the cutting of one work piece of a larger cross section. The placement and removal, as well as clamping of the work piece, is made easier by two 90 degree pneumatic clamps. The system comes with two carbide tipped blades of 8.5" (220mm) diameter.

Max. distance between saws 7'10"
Min. distance between saws 6 1/4"
Min. distance between saws 45 Deg. 6 1/4"
Cross cut capacity 90 Deg. 2 5/32"
Cross cut capacity 45 Deg. 1 9/16"
Max. Depth of Cut 1 9/16
Motor power 2 X 1.5 HP
Max. Beveled Cross Cut N/A
Saw bore 30 mm
Saw Diameter 8.5" (220 mm)
Arbor speed RPM 3200
Dust Chute 2 x 3 1/8"
Approx. Shipping Weight Lbs. 650
Crated Dimensions 137" X 27" X 59"
