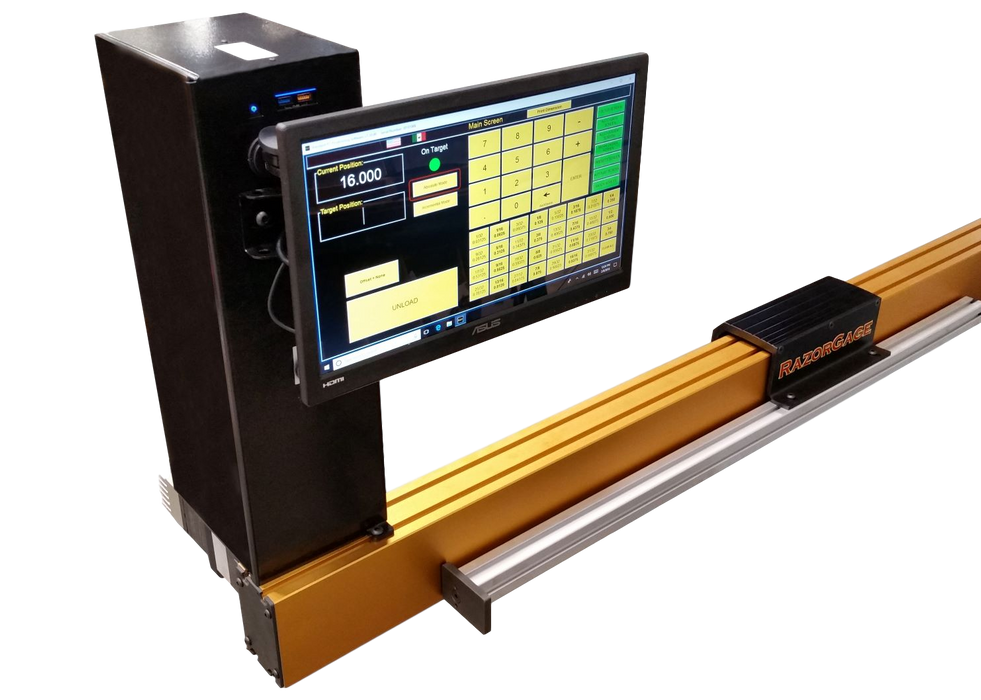

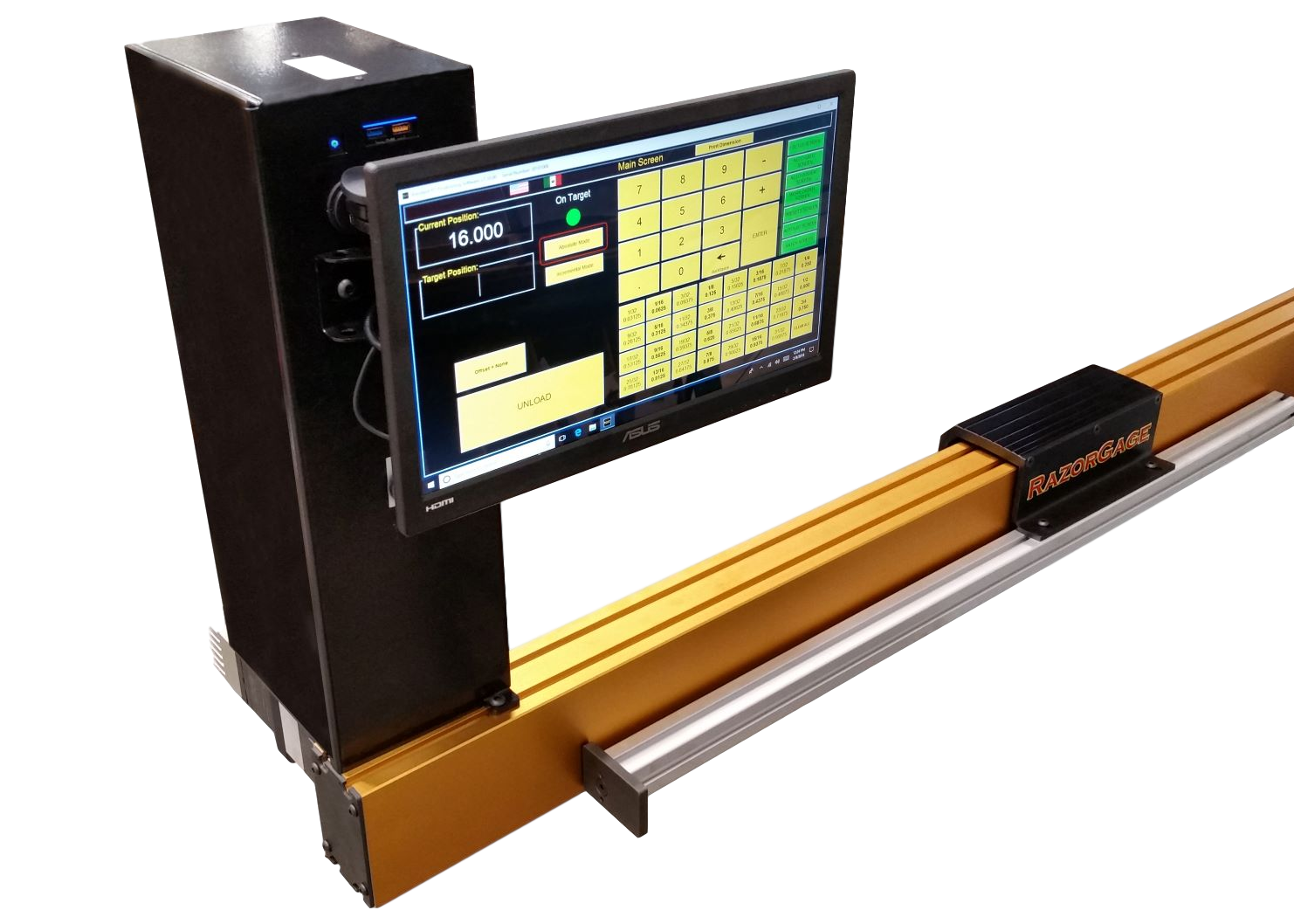

 RAZORGAGE ST AUTOMATIC SAW MEASURING SYSTEM

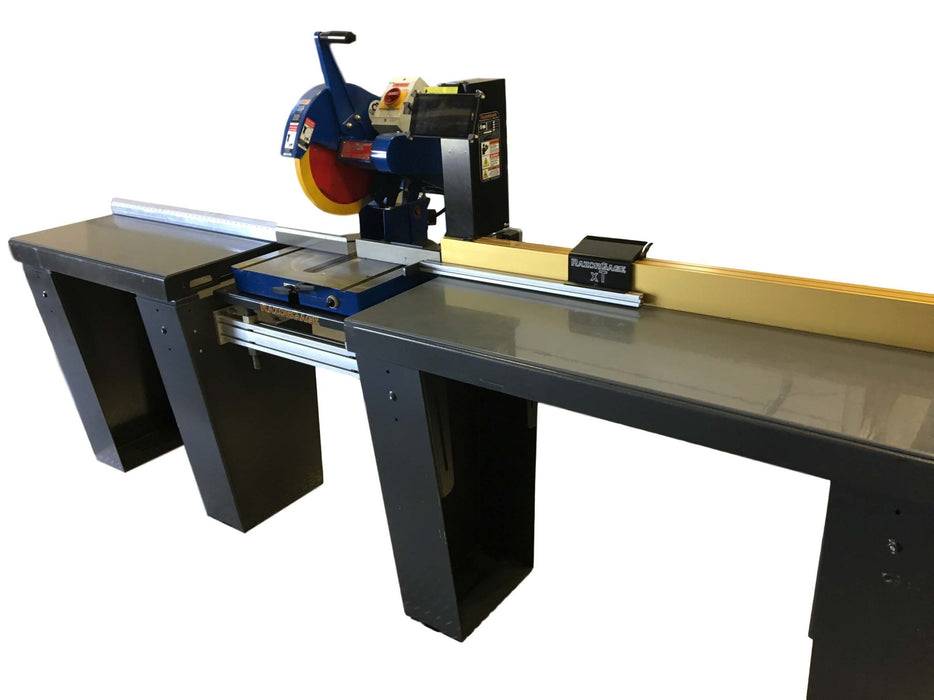

The RazorGage ST Automatic Saw Measuring System is at the heart of the product line. Whether you use the ST as an automatic pusher or a measuring stop, this digital measuring fence can be used with a chop saw, upcut saw, downcut saw, drill press, haunching, notching and punching machines. When looking to improve the output and efficiency for your operations, the RazorGage ST Automatic Saw Measuring System offers the highest degree of accuracy, repeatability and long-lasting dependability.



This system features a hi-performance motion controller that reacts quickly to jambs, eliminating stretched belts. The carriage assembly features a Hiwin hardened & ground, linear bearing rail with 2 recirculating ball bearing blocks just like you see on CNC machining centers for near friction-free motion, maximum rigidity, accuracy & long life.

· Windows PC with 15" touch screen networks easily using ethernet or WiFi and has tons of features.

• Store 1000’s of cutlists, sort cutlists into 1000s of groups according to multiple criteria, and much more.

· Fraction Keys adjust position in just a few key strokes.

· Optional optimizing software reduces waste material.

• Uses the same linear bearings found on CNC machining centers.

• Near zero backlash planetary gearhead & drive pulley.

• 5 Year Belt Warranty.

· Available in stroke lengths up to 60’.

RazorGage’s industry leading software is powered by Microsoft Windows so networking and file sharing is no different than any other PC in your office, home, or shop. Since the RazorGage software is based on a rapid development platform, it is constantly evolving to meet the needs of our customers and can be easily customized.



The Windows application software provides a bright, bold user interface. There are no menus to memorize. Operation is obvious. Setup and calibration functions are just a screen touch away. Built-in functions such as fraction keys, pages of Presets, the Work Order screen, the Auto-Pusher screen and the Batch screen, help eliminate operator mistakes and improve productivity. Upgrade a ST-Windows platform to include AutoList at any time to optimize yield on your expensive material.



Networking and file sharing using the RazorGage software is no different than any other PC in your office, home, or shop. Since the RazorGage software is based on a rapid development platform, it is constantly evolving to meet the needs of our customers and can be easily customized.

Accuracy: ±.004” over 12 feet if calibrated with a capable measuring device.

Repeatability: 001”

Push Force: 200 lb at 10 ips

Max Speed: 55 ips

Power Required: 120 VAC / 10 Amps

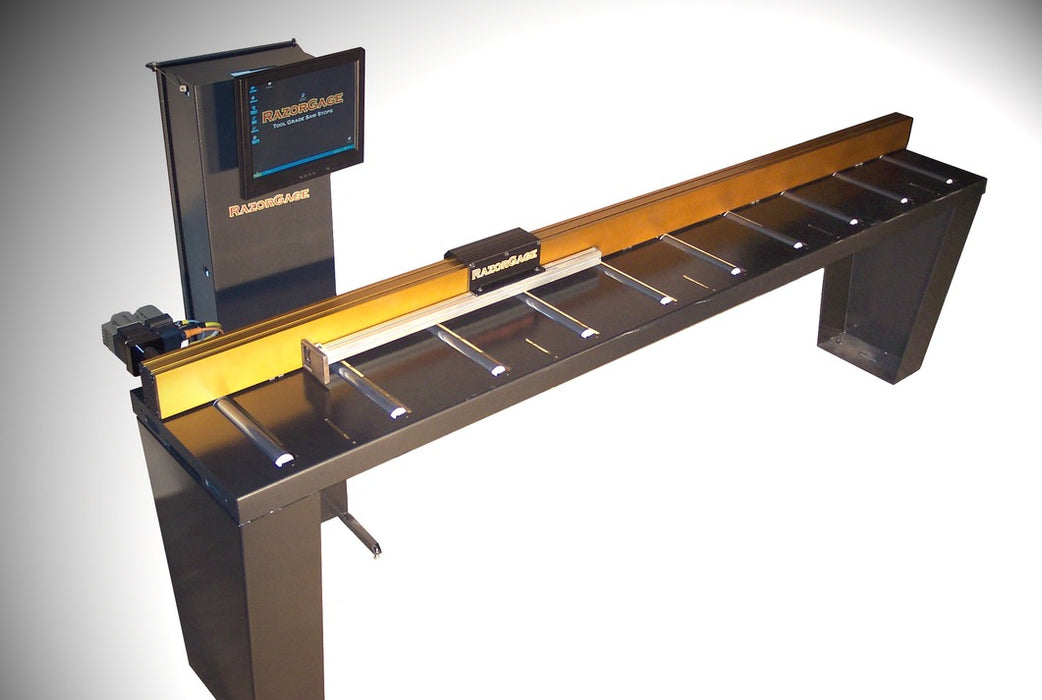

Interface: 15.5” Touchscreen or 23” Touchscreen with Optional Tower PC

Networking: Wifi or Ethernet

Operating System: Windows 10 Pro

Length: Available in 4-60 Foot Stroke
