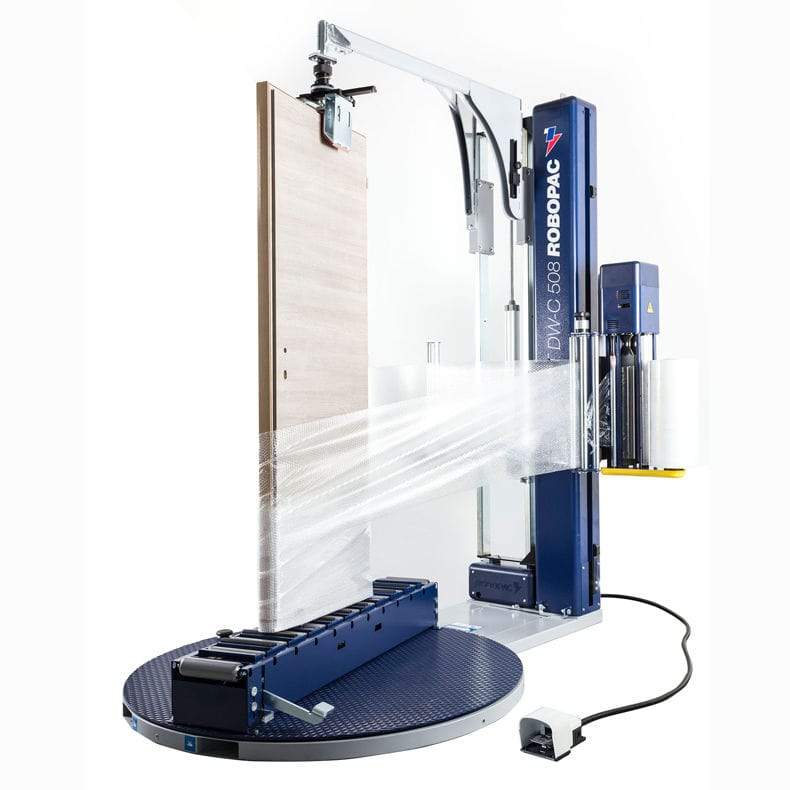

Robopac Rotoplat DW 508, Door Stretch Wrapper

by RoboPac
$30,695.00
SKU WSI-ROBOPACDW508

The Rotoplat 508’s intuitive seven (7) inch color touchscreen makes it easy to set up the correct parameters for wrapping each of your loads. You control containment force, rotation speed, roping and banding at nine (9) levels on each load.

Lock in and save the best wrap settings for up to six (6) completely unique load configurations. Your operator can then recall the appropriate program over and over with a touch of the icon-driven touch screen.

CUBE Technology will reduce your film usage by 30% – 55% over currently available competitive stretch wrapping systems. It will also improve your load containment and reduce potential product damage. This ensures that your product reaches your customer in “as-made” condition by maintaining proper wrapping standards.

The Multi-Level Variable Containment is optimized at each level and containment force is adjustable up to nine (9) times on each load.

R-Connect Ready

R-Connect, available for this machine is our latest innovation was developed to provide usage and performance data via the cloud, enabling you to meet Industry 4.0 demands by putting performance monitoring & optimization at your fingertips. Utilization drastically reduces downtime by giving you informational transparency, allowing you to connect with your machines remotely to investigate alarms, adjust parameters, & respond promptly. This Industry 4.0 innovation empowers you with actionable insight to continuously improve performance, cost savings, & automation.

Performance



Production Speed

Up to 30 LPH

Turntable Speed

5-12 RPM

Turntable Drive

1 HP vAC

Load Handling



Turntable Size

71" diameter

Maximum Load Height

100"

Maximum Load Weight

220 lbs. (standard), 330 lbs (optional)

Film Delivery System

Power Dual Stretch

Standard Pre-Stretch

Variable 0% to 250%

Force-to-Load

Variable Electronic 0%-100%

Corner Compensation

Load Cell

Roll Carriage Speed

Variable up and down

Standard Film Width

20"

Load Height Detection

Infrared Photocell

Detects dark. Eliminates false reading of gaps in loads.

Safety Features



Roll Carriage Safety Stop

Standard

UL, cUL, and CE Compliant

Yes

Anti-Fall Device

Standard

Lock-Out/Tag-Out Compliant

Yes

Additional Features



Top Sheet Wrap

Standard

Banding

Standard

Forklift Portable

Front and back

Machine Dimensions



Approx. Shipping Weight

1,470 lbs.

Approx. Shipping Size

126" L x 89" W x 28" H

Service Requirements



Electric

120vAC, 12A, 60Hz, 1-ph

NEMA 13 Enclosure

Standard

Warranty

5 Year

ProdProduction Rate

Up to 30 loads per hour

Turntable Weight Capacity

220 lbs (standard), 330 lbs (‘Rack and Track’ conveyor optional)

Minimum Load Dimension

13” (L) x 1.5” (W) x 15" (H)

Maximum Load Dimension

65” (L) x 8” (W) x 98" (H)

Temperature Operating Range

Between 41°F and 104°F.

WRAPPING

CUBE Technology

Multi-Level Control: pre-stretch and load tensioning control for 9 separate positions of the load

Strategic Film Placement: place film on 9 different positions where it has the most impact on load stability and containment

Reactive Corner Compensation: latest in motor and load cell technologies to wrap any load securely without corner damage

R-Connect Ready

Remote Machine Monitoring and Film Consumption Tracking. Eliminate Downtime by Troubleshooting your Machines.      Programmed Diagnostic: 24 hours a day, 7 days a Week.

Pre-Stretching via Stretch Control

Electromagnetic Clutch Varies Pre-stretch 0% to 250%

Load Height Sensing

Automatic Height Detection via Infrared Photocell for Light/Dark Loads

OPERATOR INTERFACE

Control Panel

7” Touch Screen Control Panel, with CUBE Technology

Wrapping Menus

12 Programmable Menus, with Menu Lock with Password

E-Stop

Emergency Stop on Control Panel

Film Carriage Speed and Positioning

Control on 9 Positions, with Manual Up/Down Jog Capability

Wrap Counters

Top/Bottom separately, and Reinforcement Wraps

Turntable Speed

Variable on 9 Positions, 5-12 rpm speed

TURNTABLE DESIGN

Turntable Size

71"

Turntable Top Thickness

3/8" thick Diamond-Shape plated Steel

Turntable Support

28 x 1-5/8” UHMW covered support casters

Turntable Drive

1 HP VAC, Heavy Duty Chain and Sprocket Drive

Product Locking Mechanism

Manually Adjustable Product Guide Rail

MAST

Pneumatic Pressure

Stabilizes tall, lightweight, or unstable loads during wrap cycle

Load Lock System

Manual product lock via electric-pressure clamping system

Effective Load Wrap Height

98” (standard), 110” (optional)



R-Connect:



  • Eliminate Downtime by Troubleshooting your Machines.
  • Programmed Diagnostic: 24 hours a day, 7 days a Week.









Door/window Rack and Track Conveyor:



  • Easily load door or window through conveyor.
  • Added Extra Weight Capacity to 330 pounds.















Pluripac –

Bubble/Foam Film Carriage Attachment:



  • Dispense bubble wrap for added load protection
