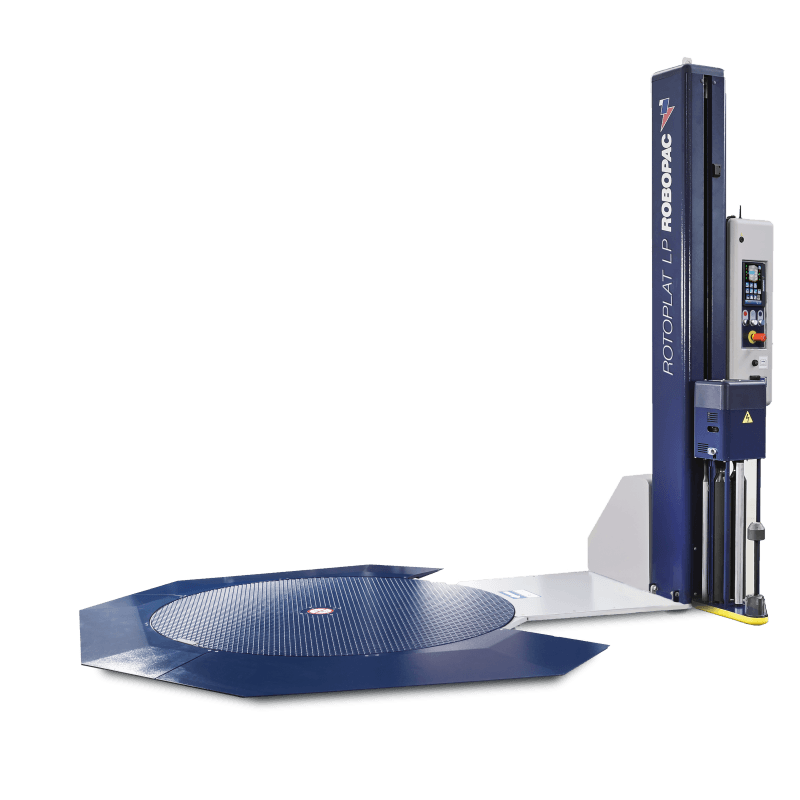

The Rotoplat 508’s intuitive seven (7) inch color touchscreen makes it easy to set up the correct parameters for wrapping each of your loads. You control containment force, rotation speed, roping and banding at nine (9) levels on each load.
Lock in and save the best wrap settings for up to six (6) completely unique load configurations. Your operator can then recall the appropriate program over and over with a touch of the icon-driven touch screen.
CUBE Technology will reduce your film usage by 30% – 55% over currently available competitive stretch wrapping systems. It will also improve your load containment and reduce potential product damage. This ensures that your product reaches your customer in “as-made” condition by maintaining proper wrapping standards.
The Multi-Level Variable Containment is optimized at each level and containment force is adjustable up to nine (9) times on each load.
R-Connect, available for this machine is our latest innovation was developed to provide usage and performance data via the cloud, enabling you to meet Industry 4.0 demands by putting performance monitoring & optimization at your fingertips. Utilization drastically reduces downtime by giving you informational transparency, allowing you to connect with your machines remotely to investigate alarms, adjust parameters, & respond promptly. This Industry 4.0 innovation empowers you with actionable insight to continuously improve performance, cost savings, & automation.
|Production Speed||Up to 40 LPH|
|Max Load Dimensions||52"(w) x 52" (l) x 110" (h)|
|Maximum Load Weight||4400 lbs|
|Turntable Construction||3/8" diamond plate steel|
|Turntable Drive Motor||1 HP VAC|
|Turntable Speed||5 - 12 RPM|
|Film Delivery System|
|Standard Pre-Stretch||Fixed 250%|
|Containment Force||Multi-Level Variable|
|Film Carriage Motor||1/2 HP VAC Chain-Driven|
|Height Sensing||Automatic via Photocell|
|Film Threading||Patented S-Pattern|
|Corner Compensation||Load Cell|
|Control Panel||Touch Screen HMI|
|Wrapping Menus||6 Programmable Menus|
|Electrical||115V, 20 amps, 60Hz, 1PH|
|Anti-Fall Device on Carriage||YES|
|Pressure Activated Safety Stop on Carriage||YES|
|CE Compliant, UL, CUL||YES|
|30" Film Carriage|
|Auto Film-Cutting Device|
|Top Platen Hold Down|
|Better Load Containment|
|Easy to Load Turntable|
|Easy to Operate|
|Ideal for Distribution Centers|
|Safe & Simple Operation|
|Low Total Cost of Ownership|
