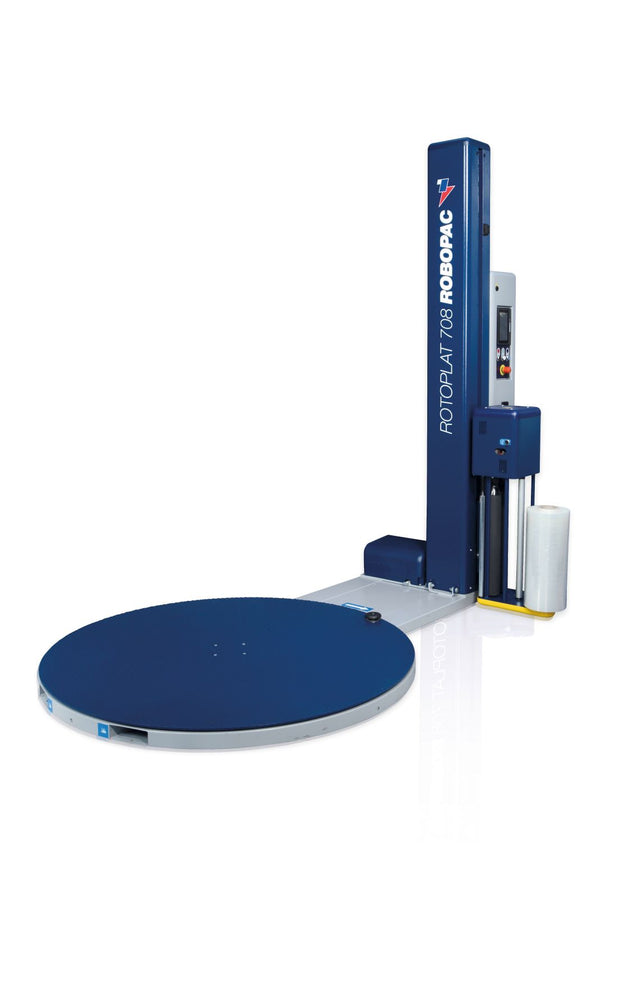

Rotoplat 708 Semi-Automatic Stretch Wrapper

by RoboPac
$0.00
SKU

The Rotoplat 708 with CUBE Technology is the most innovative stretch wrapper in the market. It is also the easiest to use, thanks to its intuitive seven (7) inch color touchscreen. If you can operate a smart phone, you can operate a 708!

The Rotoplat 708’s patented roll carriage design combined with the ultimate flexibility of CUBE Technology allows you to wrap any load with any film with complete confidence. The Multi-Level Variable Containment is optimized at each level. Containment force is adjustable up to nine (9) times on each load.

CUBE Technology will reduce your film usage by 30% – 55% over currently available competitive stretch wrapping systems. It will also improve your load containment and reduce potential product damage. This ensures that your product reaches your customer in “as-made” condition by maintaining proper wrapping standards.

With CUBE Technology!

Our innovative CUBE Technology offered on this machine combines the following four (4) key factors to successfully wrap loads & ensure that they reach your customer in “as-made” condition by maintaining proper wrapping standards.

  1. Multi-Level Variable Pre-Stretch ensures the best film economy & delivers 30-55% film savings.
  2. Multi-Level Variable Containment Force delivers optimal containment force at each level of the load.
  3. Pro-Active Corner Compensation enables you to wrap any load securely without corner damage or repetitive film breaks.
  4. Strategic Film Placement allows you to place film exactly where it has the most impact on load stability and containment.

R-Connect Ready!

R-Connect, available for this machine is our latest innovation was developed to provide usage and performance data via the cloud, enabling you to meet Industry 4.0 demands by putting performance monitoring & optimization at your fingertips. Utilization drastically reduces downtime by giving you informational transparency, allowing you to connect with your machines remotely to investigate alarms, adjust parameters, & respond promptly. This Industry 4.0 innovation empowers you with actionable insight to continuously improve performance, cost savings, & automation.

Technical Data

Performance
Production Speed Up to 40 LPH
Load Capacity
Max Load Dimensions 52"(w) x 52" (l) x 110" (h)
Maximum Load Weight 4400 lbs
Machine Structure
Turntable Height 3"
Turntable Diameter 65"
Turntable Construction 3/8" diamond plate steel
Turntable Drive Motor 1 HP VAC
Turntable Speed 5 - 12 RPM
Film Delivery System
Standard Pre-Stretch Variable 150-400%
Containment Force Multi-Level Variable
Film Carriage Motor 1/2 HP VAC Chain-Driven
Height Sensing Automatic via Photocell
Film Threading Patented S-Pattern
Corner Compensation Load Cell
Operator Interface
Control Panel Touch Screen HMI
Wrapping Menus 12 Programmable Menus
Utility Requirements
Electrical 115V, 20 amps, 60Hz, 1PH
Safety Features
Anti-Fall Device on Carriage YES
Pressure Activated Safety Stop on Carriage YES
CE Compliant, UL, CUL YES



Features

Auto Film Clamp
Highly reliable, dual rod cutting system fully automates the wrapping process.
Cube® "SMART Stretch Wrapping" Technology
Innovative technology that combines multi-level variable pre-stretch, multi-level variable containment force, pro-active corner compensation, and strategic film placement to successfully wrap loads & ensure that they reach your customer in as-made condition by maintaining proper wrapping standards.
Icon Driven Touchscreen
Makes setting parameters easy & intuitive with an interface that offers a tablet-like experience that allows you to tap & scroll your way through settings.
Multi-Level Variable Containment Force
Delivers optimal containment force at each level. Containment force is adjustable up to 9 times on each load.
Multi-Level Variable Pre- Stretch
Ensures the best film economy for every load. Adjust the pre-stretch up to 9 times on each load. Multi-Level Variable Pre-Stretch Technology delivers 30% to 55% film savings over currently available competitive stretch wrapping systems.
R-Connect® Ready
Able to install R-Connect® remote monitoring software immediately.
Standard 110" Wrap Height
Ensures you can wrap even your tallest loads.
Warranty
Written guarantee to repair or replace the machine if necessary.
AVAILABLE OPTIONS
30" Film Carriage
Auto Film-Cutting Device
Cold Package
Extended Warranty
Ramp
Roping Device
Scale Package
Top Platen Hold Down

Advantages

Better Load Containment
Easy to Load Turntable
Easy to Operate
Ideal for Distribution Centers
Safe & Simple Operation
Low Total Cost of Ownership
