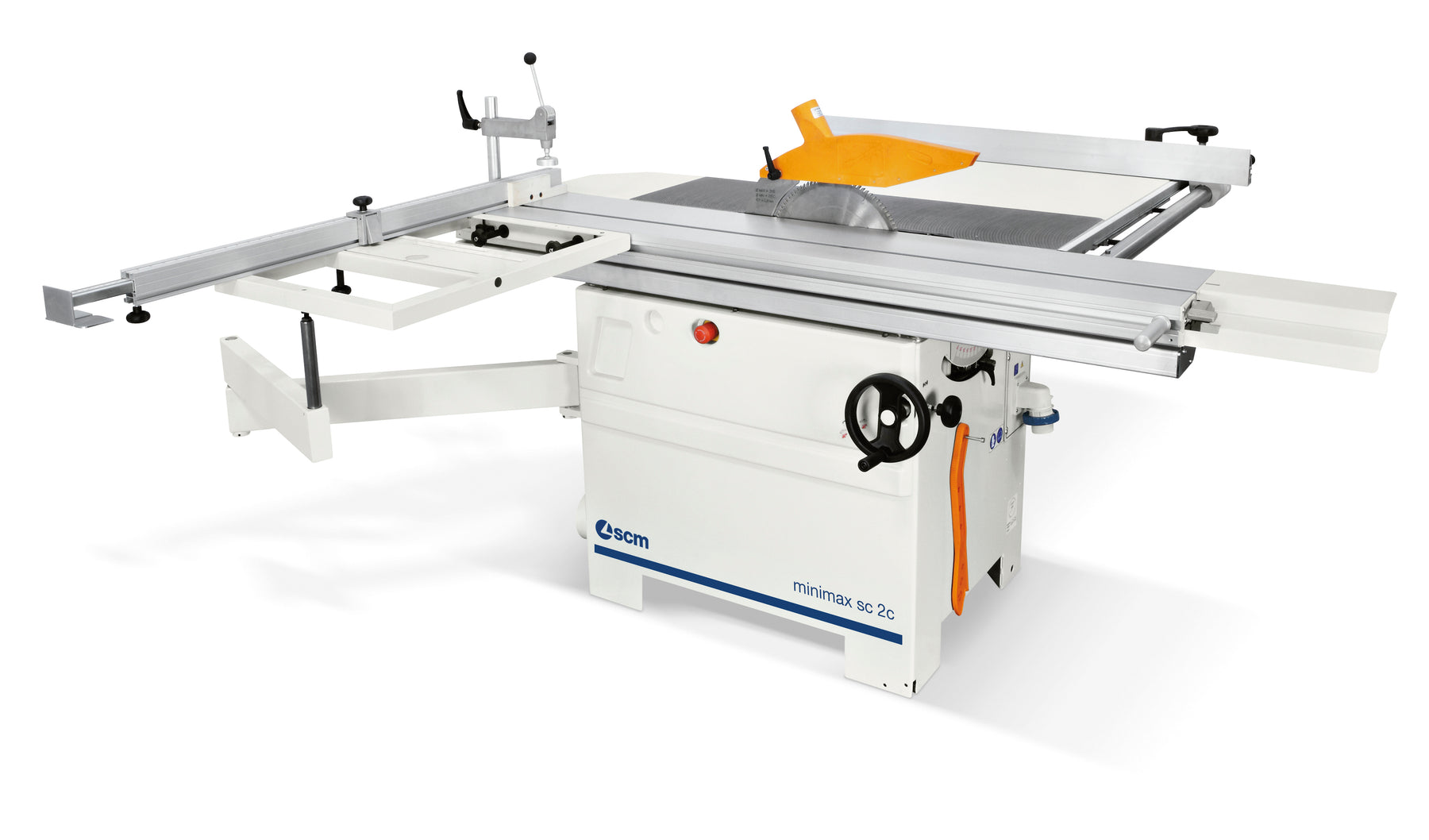

SCM Minimax SC 2C Sliding Table Saw, INCLUDES FREIGHT

by Minimax
$6,495.00
SKU WSI-MINIMAXSC2C

The precise, cost-effective and compact circular saw with tilting blade for the D.I.Y. woodworkers and the small joineries.
A great step up from the standard American-style cabinet saw. Compact chassis, powerful 3.4hp motor, and 5.5' sliding table. Will crosscut a standard 4x8 sheet on the slider or rip it lengthwise, using the rip fence to the right of the blade. Customers have put mobility kits on these and used them as jobsite machines. A proven performer.

  • Incredible cutting of both very thick solid wood and panels, even those veneered, thanks to the new saw unit with a blade that has a maximum diameter of 315 mm with the scoring blade fitted.
  • New scoring unit that can easily be adjusted from outside the machine, supplied on request.
  • Easier, more precise cutting: a perfectly stable support is guaranteed, even for large workpieces, by the 270 mm wide sliding table with sliding system through steel spheres on hardened and calibrated steel guideways.
  • Perfect parallel cuts thanks to the anodized aluminium parallel fence with support, quick locking device and micrometric adjustment.

Our NEW entry level sliding table saw, the minimax sc 2c is a proven design based on years of experience. It is perfect for customers upgrading to their first slider from an American tablesaw. The footprint is small, but the capacity is large. This slider, like all of our sliders, is standard with scoring, and can accommodate a 12” blade. The 5.5’ crosscut capacity is ideal for processing panels.

Performance without limits

Incredible cutting of both very thick solid wood and panels, even those veneered, thanks to the new saw unit with a blade that has a maximum diameter of 315 mm that grants a 100 mm cutting height with the scoring blade installed.

The new scoring unit can be supplied on request and can easily be adjusted from outside the machine.

Exclusive

Easier and more precise cutting is possible due to a perfectly stabile support that is guaranteed, even for large work pieces, bu the wide sliding table and the large squaring frame fence provided as st+W30andard. Top quality precision, smooth and silent action, self-cleaning dustproof system, long lsting accuracy, no adjustment required.

The table

The table is made of extruded anodized aluminium with a closed honeycomb structure. The sliding table runs on an exclusive slideway system consisting of calibrated and hardened F550 SX steel guides.

sc 2c
Max. sawblade diameter mm / inches 315 / 12
Sawblade arbor size mm / inches 16 / ⅝
Max. sawblade projection from table at 90°/45° mm / inches 100/78 3.94/3.07
Cutting width on parallel fence (Rip capacity) mm / inches 1270 / 50
Max. squaring stroke of sliding table saw mm / ft 1660 / 5.5
Single-phase motor Hp 3.4
