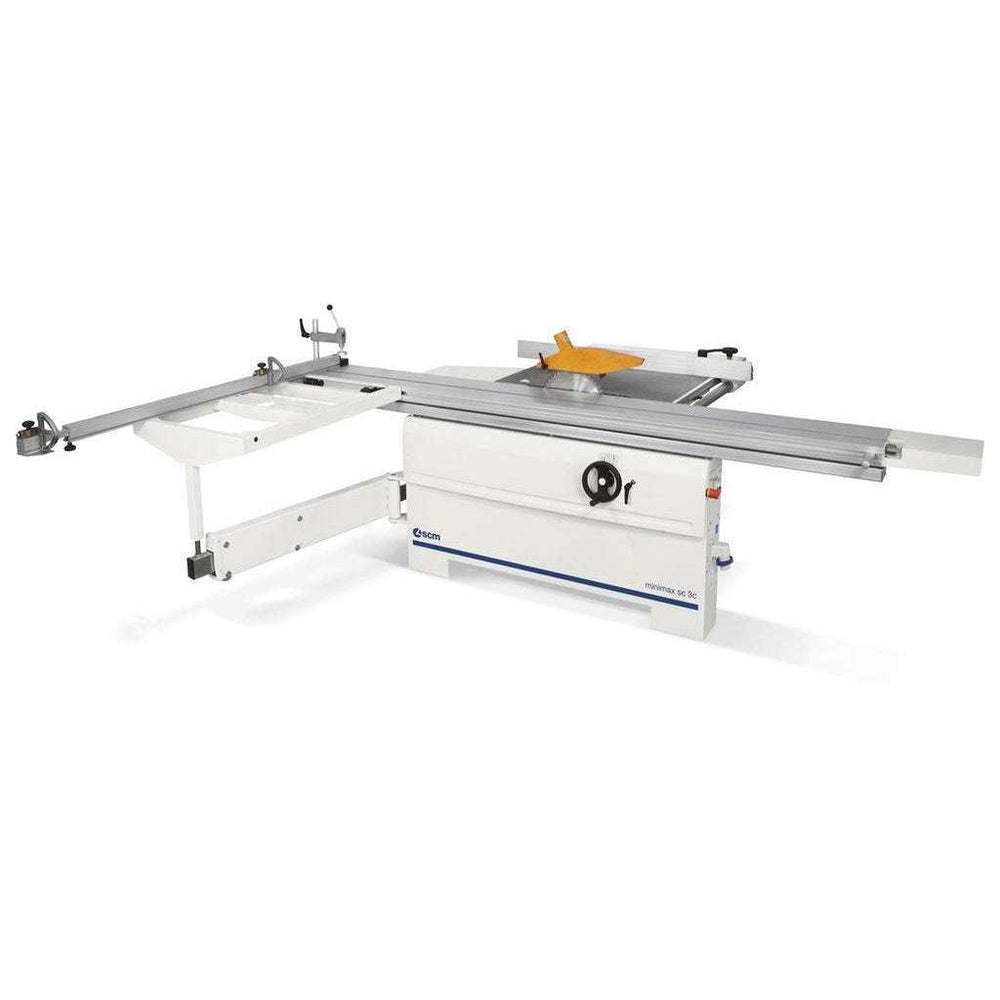

Minimax SC 3C

by Minimax
$7,995.00
SKU
The compact and highly precise circular saw with a low investment for DIY woodworkers and craftsmen.

Advantages

Performance without limits

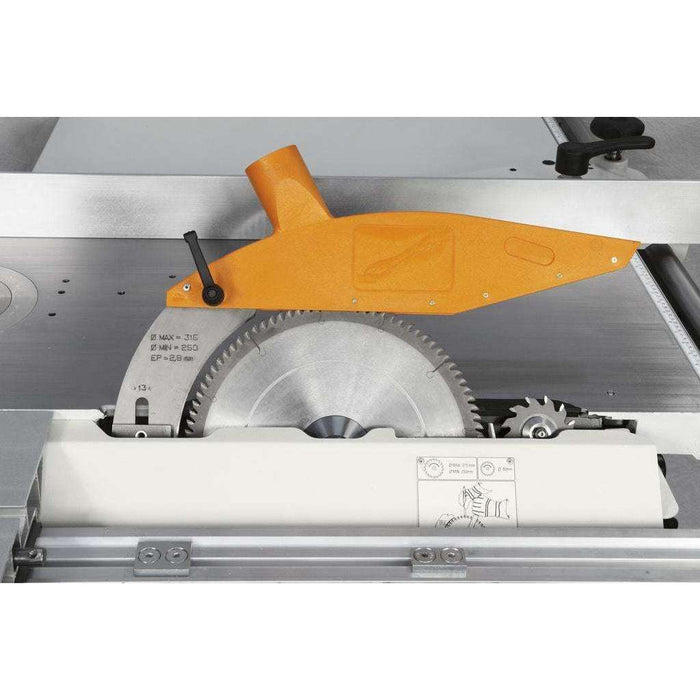

Incredible cutting of both very thick solid wood and panels, even those veneered, thanks to the new saw unit with a blade that has a maximum diameter of 315 mm that grants a 100 mm cutting height with the scoring blade installed.

The new scoring unit can be supplied on request and can easily be adjusted from outside the machine.
Exclusive

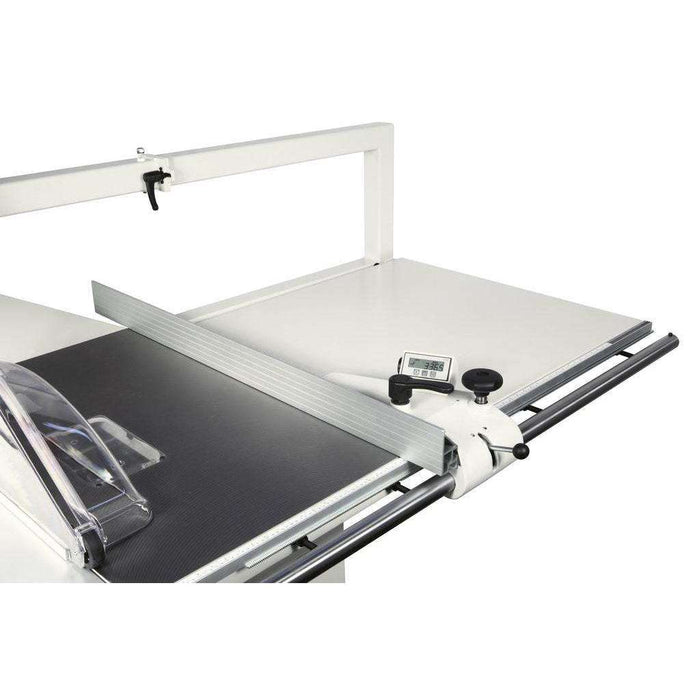

Easier and more precise cutting is possible due to a perfectly stabile support that is guaranteed, even for large work pieces, bu the wide sliding table and the large squaring frame fence provided as st+W30andard. Top quality precision, smooth and silent action, self-cleaning dustproof system, long lsting accuracy, no adjustment required.

The table

The table is made of extruded anodized aluminium with a closed honeycomb structure. The sliding table runs on an exclusive slideway system consisting of calibrated and hardened F550 SX steel guides.

Technical Data

sc 3c
Max. sawblade diameter mm / inches 315 / 12
Sawblade arbor size mm / inches 16 / ⅝
Max. sawblade projection from table at 90°/45° mm / inches 100/78 3.94/3.07
Cutting width on parallel fence (Rip capacity) mm / inches 1270 / 50
Max. squaring stroke of sliding table saw mm / ft 1600 / 5.5
Single-phase motor Hp 4.8
