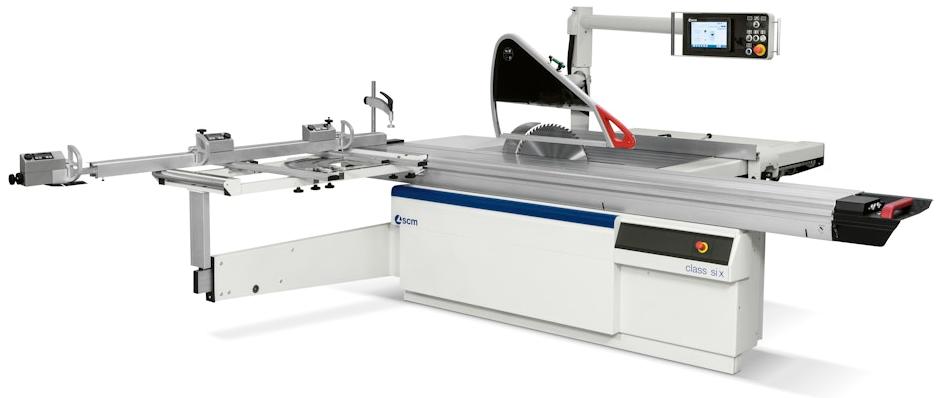

SCM Class SI X Sliding Table Saw, INCLUDES FREIGHT

The Class SI X is SCM’s premier sliding table saw, designed for precision, power, and efficiency in professional woodworking shops. Equipped with a robust 14 HP (11 kW) motor and an inverter-controlled blade speed ranging from 3,000 to 5,000 RPM, it delivers unmatched cutting performance. The saw unit supports a massive 550mm (21.62”) main blade, providing a maximum cutting height of 200mm (7.81”) at 90°. Its anodized aluminum sliding carriage, featuring SCM’s exclusive arch-ground hardened steel slideways, ensures smooth, precise cuts with a 10.5’ squaring stroke. The intuitive "Eye-S mini 10" electronic control panel, along with the advanced Thundercut optimization app, enhances workflow efficiency, while features like automatic blade tilting (+46° to -46°) and a programmed parallel fence offer seamless operation. Engineered for durability and accuracy, the Class SI X is the ultimate solution for professionals demanding superior performance and cutting-edge technology.

**+ $3,200.00 Installation Required, Freight Included**

STANDARD EQUIPMENT

• Sliding carriage
• The anodized aluminum alloy carriage will never require adjustment and thanks to its structure with arch-ground hardened steel slideways (SCM exclusive and patented solution) it can bear loads four times higher. Furthermore, the “arc” profile of the slideways ensures:
  • No play and no need for adjustments over time
  • Higher loading capacity
  • 10 years of SCM guarantee for the carriage sliding system.
• Optimizer/Sequencer App for Tablet: SCM Thundercut. Application to be downloaded from the App Store or Play Store on compatible tablets (mobile devices) equipped with iPadOS or Android operating systems. It can be activated using the QR code supplied with the machine. The App allows to:
  • Manage your machine stock and the material and panel magazine
  • Create and modify projects, import projects from the main furniture design software ("cpout" file format), import cutting lists
  • Optimize cutting lists, choosing from one or more proposals of the optimization software integrated into the App
  • Set the machine correctly for each cut to be made, thanks to the simple and intuitive graphics of the 3D sequencer that guides the operator at each step
  • Print labels with bar code to identify the various parts, thanks to the Bluetooth connection with compatible label printers
• "Eye-S mini 10" electronic control panel:
• Main features
  • 10” touch screen display
  • Direct control of the following working axes with manual, manual incremental, semi-automatic, automatic mode:
    • Main blade lifting
    • Saw blades unit tilting
    • Parallel fence movement
  • Operator's help functions for the carrying out of complex cutting
  • Storage capacity up 1000 programs with relevant picture
  • Storage capacity up 1000 different with relevant picture
  • Cut sequencer of the pre-loaded parametric working programs
  • Environment for the creation and storage of the new sequenced working programs
  • Automatic acquisition of work quotas from the Thundercut
  • USB port
  • Pre-set for network connection
• Overhead mobile control panel
• "AP System" automatic positioning of the overhead protection according to the saw blade tilting (SCM Patent)
• Motor start/stop pushbuttons integrated in the sliding carriage (for main and scoring blade)
• Outfeed table extensions
• Eccentric clamp
• Inverter for electronic speed change from 3000 to 5000 rpm
• Electronic control of main motor
  • Spindle speed selection from NC
  • Blade speed control from NC, also with reference to saved blades data
  • Electronic motor brake
• Squaring frame on swinging arm support, with:
  • Fast fence positioning for angular cuttings
  • Idle roller to facilitate the panel loading/unloading
• Telescopic fence with 2 flip-over stops and imperial rule tilted towards the operator
  • ***Digital readouts not included as standard***
• Programmed parallel fence
  • Position readout on encoder
  • Sliding on linear fence with recirculating ball bushing through recirculating ball screws
  • Continuously adjustment by means of pushbuttons or automatic positioning
  • Possibility of incremental positioning
  • Automatic set up
  • Total exclusion of fence under the worktable
  • 1600mm cutting width

TOOLING INCLUDED

• Saw blade 350 mm (57.04.16)
• Trimming shoe, push stick and push handle
• Toolbox: Wrenches, allen wrenches, user manual, spare parts catalog

SAFETY/PROTECTIONS

• Emergency pushbuttons located on the front machine side
• Direct start main motor with pushbuttons
• Overload protection
• Overhead saw guard with incorporated dust extraction, 100 mm outlet diameter
• Auxiliary low voltage circuit (24V)
• Automatic brake on main sawblade
• Main power switch can be locked in the off position with a padlock
• Blade access door with safety microswitch
• ‒ "CSA" rated electrical components, including cables
