SCM Hypsos CNC Router

by SCM
$0.00

VIDEOS

Advantages

LARGE MACHINING VOLUMES

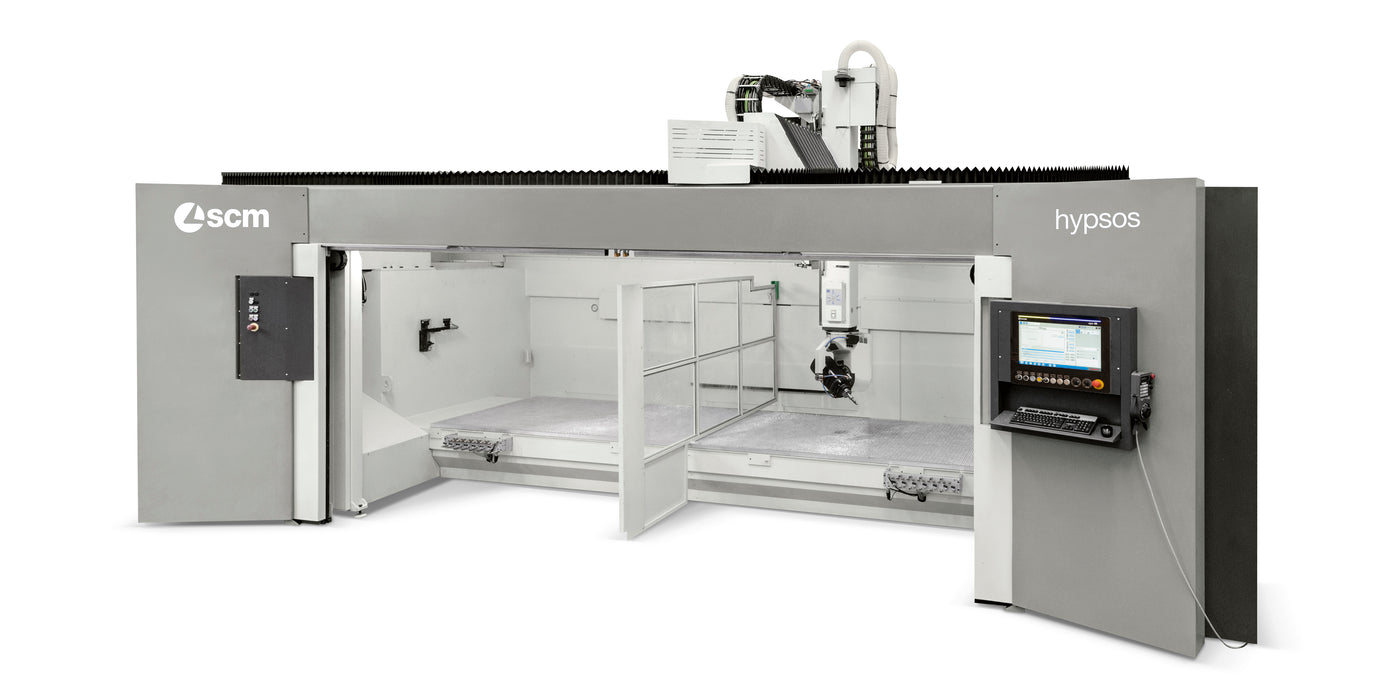

The machine's architecture has been designed to perform routing operations on complex and large-sized work pieces, which can be easily loaded and unloaded onto the worktable through the front sliding doors.

HIGH ACCURACY THANKS TO THE RIGID STRUCTURE

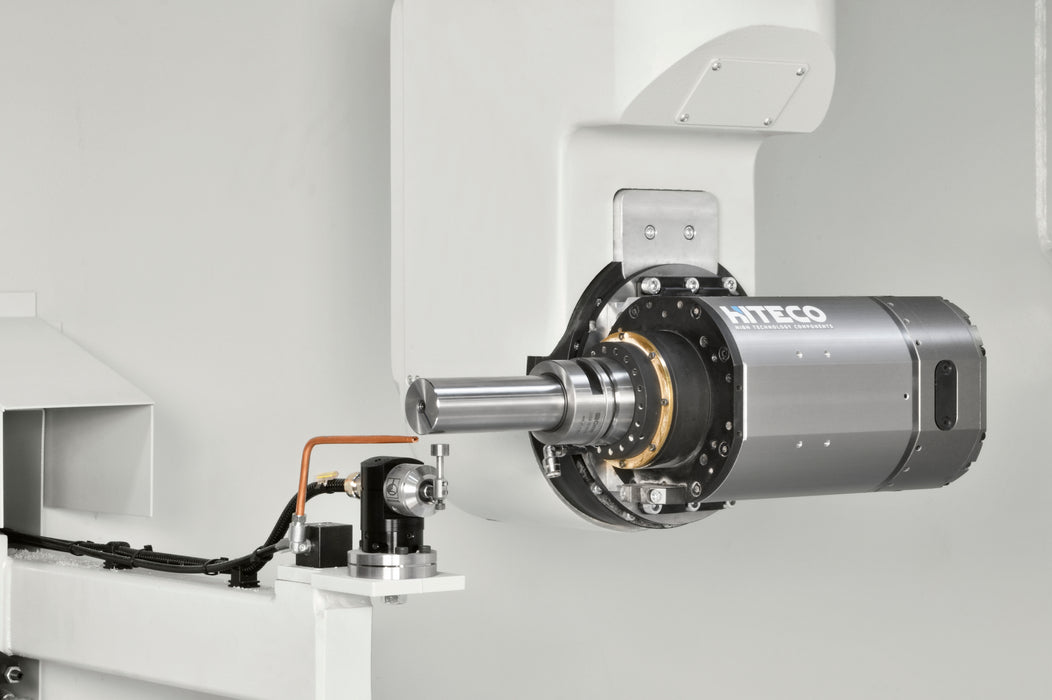

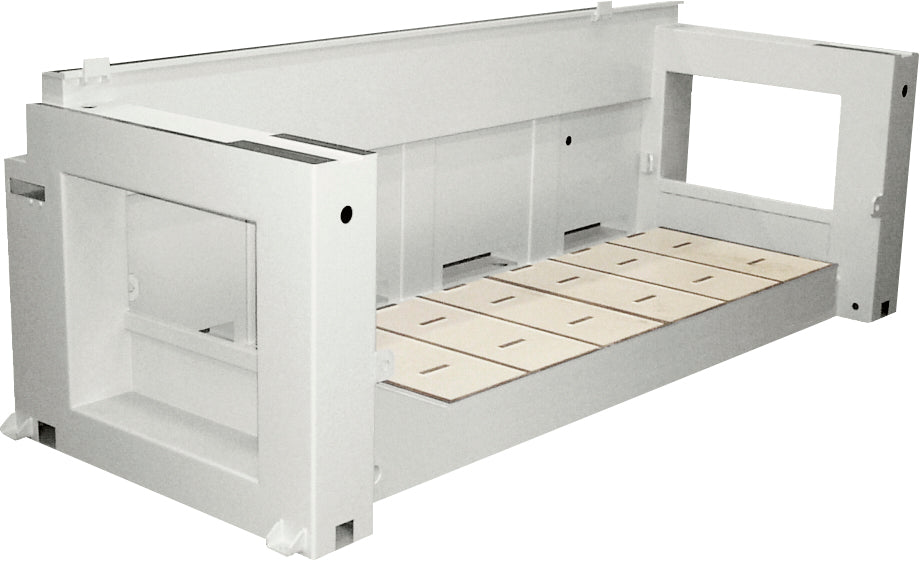

The maximum accuracy on the whole volume is guaranteed by the robust monolithic structure, composed of a fixed base with integrated worktable and a high section movable bridge supporting the operating unit. The high power electrospindle makes it possible to perform heavy duty operations on solid wood elements.

EXTREME DUST AND NOISE REDUCTION IN THE ENVIRONMENT
The top machine roof, composed of sliding bellows, allows to contain the dust and noise produced inside the work area, ensuring a clean environment.



Technical data

STROKES AND SPEEDS
Model Axes strokes Rapid traverses
mm (°) m/min °/min
X Y Z B C X/Y Z BC
36/18 3600 1800 1200 +/- 120 +/- 270 80 70 9000
48/18 4800
60/18 6000
36/26 3600 2600 1200 +/- 120 +/- 270 80 70 9000
48/26 4800
60/26 6000
