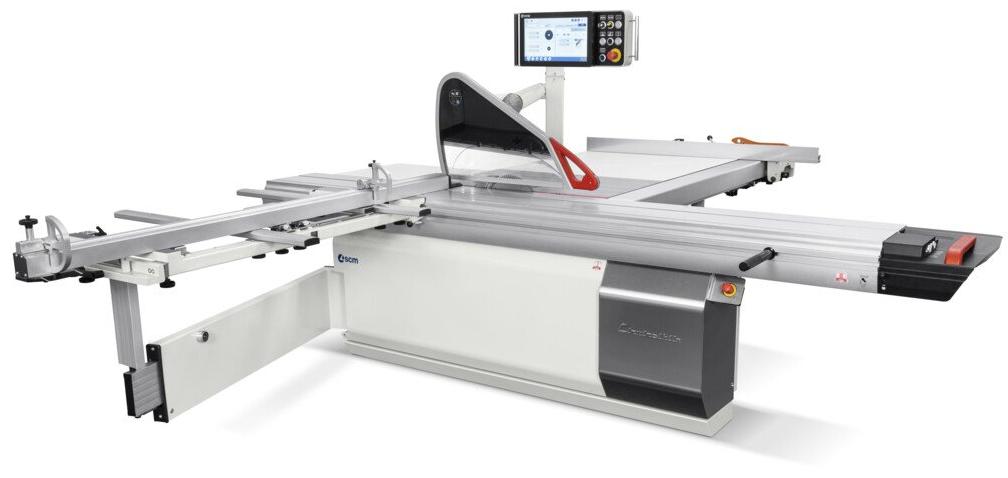

SCM L'invincibile SI 3 Sliding Table Saw, INCLUDES FREIGHT

The L’invincibile SI 3 is SCM’s premium sliding table saw, designed for unmatched precision, automation, and ease of use. Featuring SCM’s exclusive arch-ground steel slideways, the anodized aluminum carriage delivers straight, high-quality cuts with a ±0.05 mm tolerance across its entire length, backed by a 10-year guarantee. Powered by a robust 10 HP motor, it accommodates a 400mm (15.69”) main blade and an independent 2 HP scoring unit, ensuring flawless, chip-free results. The advanced EYE-S 15 electronic control panel, with a 15” touchscreen display, provides full automation of blade height, scoring adjustments, tilt, and parallel fence positioning, enhancing operator efficiency. Integrated with the SCM Thundercut app, users can optimize cutting lists, sequence operations, and streamline workflow directly from a tablet. With a 10.5’ squaring stroke, 63” rip capacity, and precision angular cutting via the CompeX device, the L’invincibile SI 3 is the ultimate choice for woodworking professionals who demand cutting-edge technology, power, and accuracy in every cut.

**+ $3,200.00 Installation Required, Freight Included**

STANDARD EQUIPMENT

• Sliding carriage
• The carriage will never require adjustment and thanks to its structure with arch-ground steel slideways (SCM exclusive and patented solution) it can bear loads four times higher. Furthermore, the “arc” profile of the slideways ensures:
  • No play and no need for adjustments over time
  • Higher loading capacity
  • ± 0.05 mm tolerance on the entire carriage length for straight and high quality cutting
  • 10 years of SCM guarantee for the carriage sliding system.
• Optimizer/Sequencer App for Tablet: SCM Thundercut. Application to be downloaded from the App Store or Play Store on compatible tablets (mobile devices) equipped with iPadOS or Android operating systems. It can be activated using the QR code supplied with the machine. The App allows to:
  • Manage your machine stock and the material and panel magazine
  • Create and modify projects, import projects from the main furniture design software ("cpout" file format), import cutting lists
  • Optimize cutting lists, choosing from one or more proposals of the optimization software integrated into the App
  • Set the machine correctly for each cut to be made, thanks to the simple and intuitive graphics of the 3D sequencer that guides the operator at each step
  • Print labels with bar code to identify the various parts, thanks to the Bluetooth connection with compatible label printers
• Overhead mobile control panel
• "EYE-S 15" electronic control panel:
• Main features
  • 15” touch screen display
  • Direct control of the following working axes with manual, manual incremental, semi-automatic, automatic mode:
  • Main blade lifting
  • Scoring blade lifting and lateral movement (with automatic activation into working position when switching on the blades and automatic exclusion when switching off the blades)
  • Saw blades unit tilting
  • Parallel fence movement
  • Blade speed, with reference to the blades data base
  • Operator's help functions for the carrying out of complex cutting
  • Storage capacity up 1000 programs with relevant picture
  • Storage capacity up 1000 different with relevant picture
  • Cut sequencer of the pre-loaded parametric working programs
  • Environment for the creation and storage of the new sequenced working programs
  • Automatic acquisition of work quotas from the Thundercut
  • USB port
  • Pre-set for network connection
• Operator's assistance function on electronic control with:
  • Selection of the stop correct positioning on the squaring fence when carrying out cuts with tilted blade
  • Selection of the stop correct positioning on the fence when carrying out cuts with angled fence on the worktable, with or without tilted blade
• Independent powered scoring unit with 2 automatic adjustable axes
  • NC horizontal and vertical positioning
• Programmed parallel fence sliding on linear guide
  • Movement through recirculating ball screw, 25 m/min max speed
  • Automatic, semiautomatic and manual adjustment by means of pushbuttons (possibility of absolute and/or incremental positioning)
  • Exclusion of fence under worktable
• Arm support for squaring frame with sliding on ball-bushing prismatic linear guides
• Eccentric clamp
• Squaring frame with "CompeX" device for angular cutting. This exclusive system allows the functioning even when the optional fence for complementary cuts is applied.
  • Mechanical self-adjustment of the stops position
  • Extensible roller for panel support (2400 mm)
  • Note:
  • * Piece positioned behind the fence: fence tilting max = 45°
  • * Piece positioned in front of the fence: fence tilting max = 35°
• Outfeed table extensions
• Main blade and scorer start/stop pushbuttons integrated in the sliding carriage

TOOLING INCLUDED

• Main blade (53.03.00)
• Expandable scoring blade (53.03.40)
• Trimming shoe, push stick and push handle
• Toolbox: Wrenches, allen wrenches, user manual, spare parts catalog

SAFETY/PROTECTIONS

• Emergency pushbuttons located on the front machine side
• Overload protection
• Overhead saw guard with incorporated dust extraction, 100 mm outlet diameter
• 24V auxiliary low voltage circuit
• Automatic brake on main motor
• Blade access door with safety microswitch
