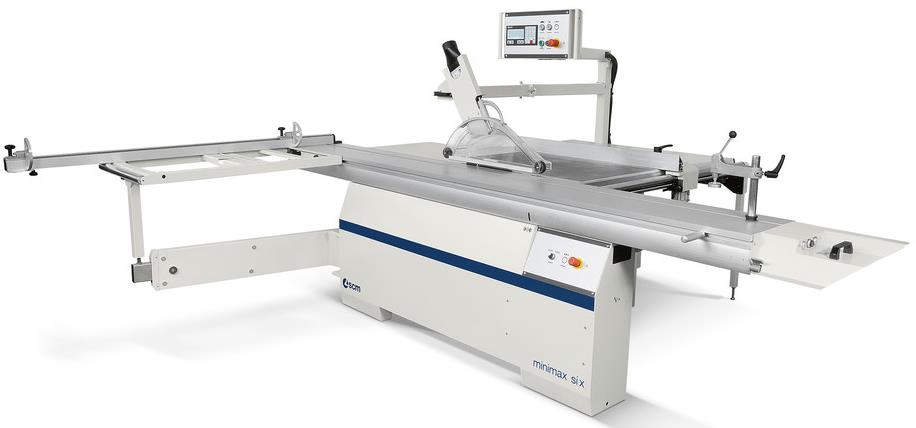

The SCM Minimax SI X with Ready 3UP Controller is a precision-engineered sliding table saw designed for efficiency, accuracy, and ease of operation in professional woodworking environments. Featuring the SCM Thundercut app, this machine allows seamless project management, cutting list optimization, and guided sequencing through an intuitive 3D interface. Its robust cast iron saw unit, independent scoring motor, and anodized aluminum alloy carriage ensure exceptional durability and precision. The advanced "READY 3UP" electronic control system offers three-axis automation, including blade lifting, tilting, and rip fence positioning, with memory capacity for up to 99 programs. With a high-rigidity rip fence, telescopic squaring frame, and optimized dust extraction, the Minimax SI X with Ready 3UP is built for superior performance and versatility in demanding woodworking applications.
**Freight Included**
STANDARD EQUIPMENT
- Optimizer/Sequencer App for Tablet: SCM Thundercut. Application to be downloaded from the App Store or Play Store on compatible tablets (mobile devices) equipped with iPadOS or Android operating systems. It can be activated using the QR code supplied with the machine. The App allows to:
- Manage your machine stock and the material and panel magazine
- Create and modify projects, import projects from the main furniture design software ("cpout" file format), import cutting lists
- Optimize cutting lists, choosing from one or more proposals of the optimization software integrated into the App
- Set the machine correctly for each cut to be made, thanks to the simple and intuitive graphics of the 3D sequencer that guides the operator at each step
- Print labels with bar code to identify the various parts, thanks to the Bluetooth connection with compatible label printers
- Cast iron saw unit, with lifting system by means of cylindrical bars and tilting on high rigidity sliding side trunnions, complete with scoring unit with independent motor and external setting up
- Anodized aluminum alloy carriage (dimensions 360 x 3200 mm) sliding on hardened steel guides, which are fixed on the carriage by means of mechanical bending system
- Squaring frame (dimensions 1200 x 650 mm) complete with:
- Telescopic fence with 2 crosscut flip-over stops and rule tilted towards the operator
- Eccentric clamp
- Swinging arm support
- Idle roller to facilitate the panel loading/unloading
- "READY 3UP" electronic control
- Overhead mobile panel to control 3 axes: blade unit lifting/tilting and rip fence position
- Additional functions:
- Tools data setting with automatic height adjustment with respect to the unit tilting
- Mode: manual, semiautomatic and automatic
- Memory capacity up to 99 programs
- Calculator and hour counter
- Rip fence details:
- Position readout on encoder
- Adjustment by means of recirculating ball screws
- Continuous adjustments by means of pushbuttons or automatic positioning
- Possibility of incremental positioning
- Possibility of fence exclusion
TOOLING INCLUDED
- Qty. 1 Main blade (350 mm)
- Qty. 1 scoring blade
- Trimming shoe, push stick and push handle
- Toolbox: Wrenches, allen wrenches, user manual, spare parts catalog
