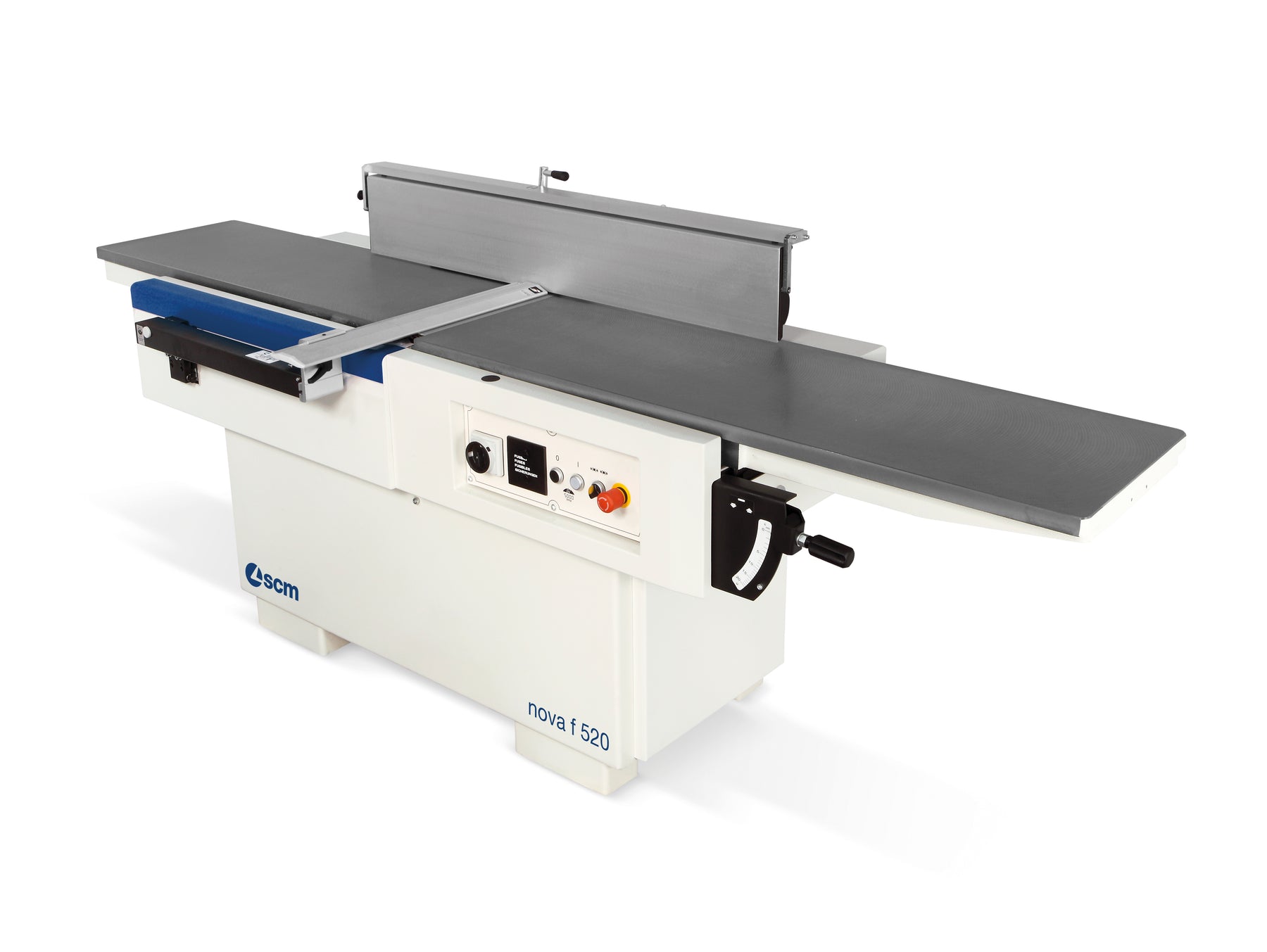

SCM Nova F 520 Tersa Jointer, INCLUDES FREIGHT

by SCM

The Nova F 520 is a heavy duty, long bed 20” jointer designed to meet the needs of the most demanding environments. It features cast iron tables, a tilting fence and a quick change Tersa cutterhead.

Extra Long Cast Iron Tables
All SCM Jointers use aged cast iron tables that are machine polished to the highest tolerances. These castings are ribbed to ensure maximum strength and to avoid problems with the tables warping or breaking during use. The longer tables ensure board straightness. You table is over 108 inches to make sure that the workpiece will be straight every time.

Parallelogram Table Movement
All SCM Jointers incorporate a parallelogram movement of the infeed and outfeed tables. This system has the table height adjustment through a system of four cams (one per corner of support) that pivot on a radius equal to the head radius. This radius pivot ensures that the table chip breaker remains in the correct position from the head. Some manufacturers use a wedge type movement which allows the table and chip breaker to move away from the head as it is adjusted for more removal. This will allow splintering and poor quality finish.

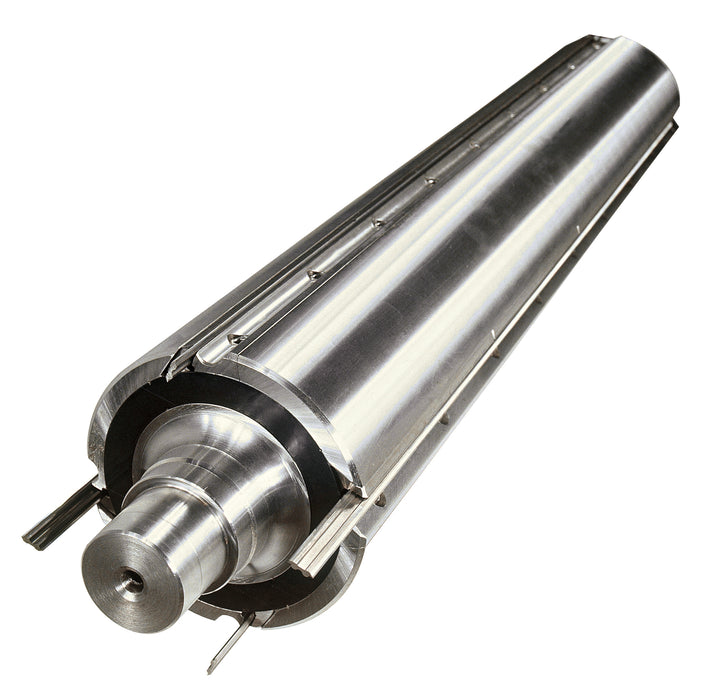

Tersa Cutterhead
SCM jointers include the quick change knife heads by "Tersa". This cutterhead eliminates the necessity of gauging the knives each time to ensure proper setting position. The Tersa knives automatically reference into position when the head is turned on. Removal of the knives is as simple as tapping down the wedge blocks and sliding out the knives. Since the knives are two- sided, they can be flipped over, reinserted, and used again.

American Cutterhead Guard
The standard guard offered on SCM Jointers is a spring-type guard which always covers the unused portion of the knife. Other European style guards require the guard to be manually moved into place when the fence is readjusted. When processing thick wood, this does not cover the blade as completely.

Note: The European guard and additional overturning fence attachment do not come standard on the Nova F 520. The Nova F 520 comes standard with an American guard and fence that meet OSHA requirements.

Precision that lasts a lifetime without noise with the system on connecting rods.

The system guarantees the maximum movement fluidity and avoids deformations of the work table. This guarantees maximum stability, reliability and ergonomics.

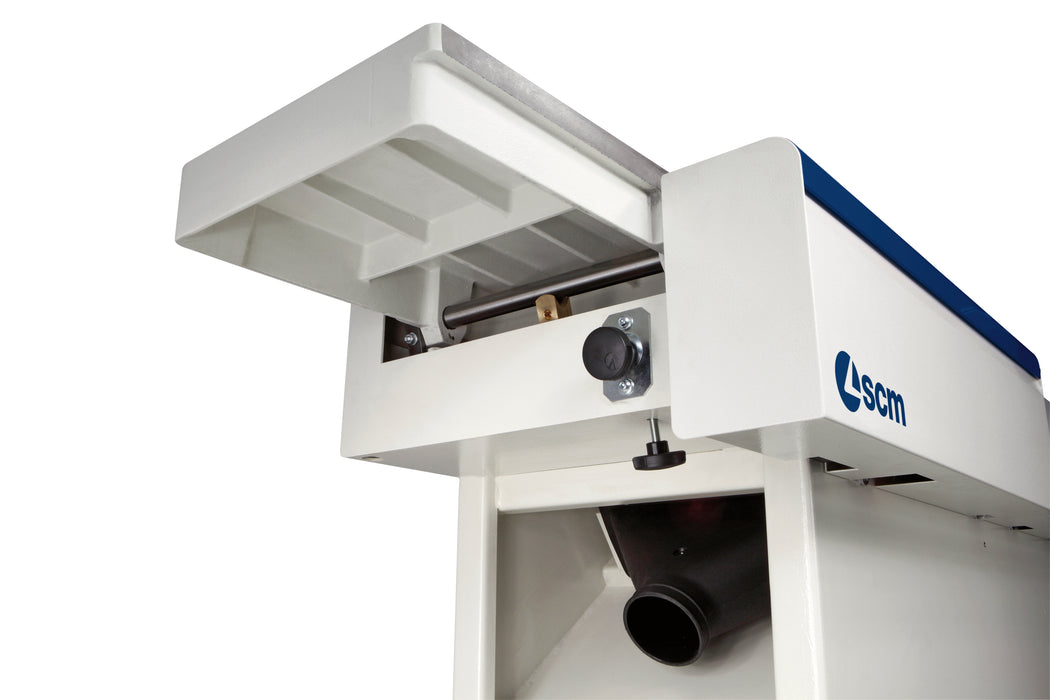

Total absence of vibration thanks to the large worktables made from ribbed cast-iron.

- "Tersa" 4 knife insert head with quick change knives
- Magnetic starter with overload protection

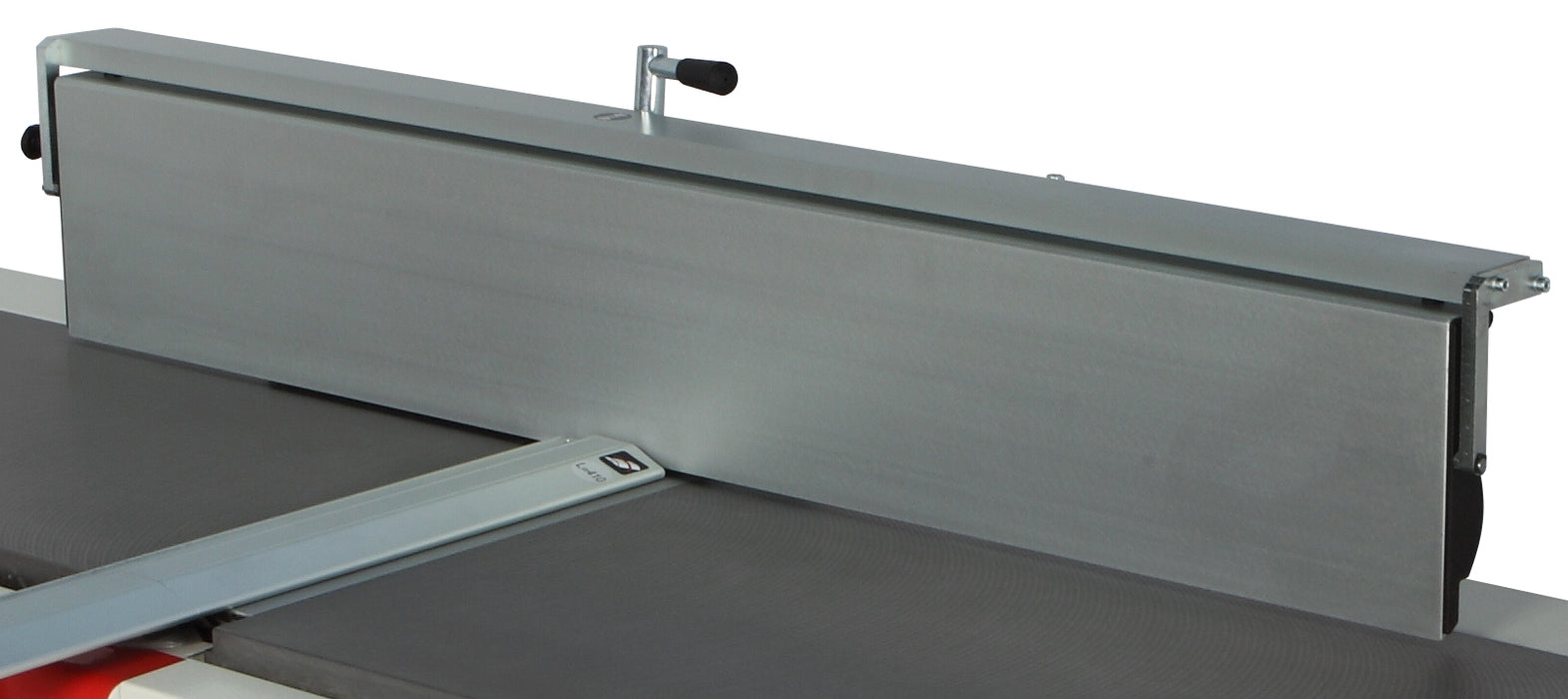

- Heavy anodized aluminum jointer fence
- Spring type “American” cutterhead guard
- 108 1/4 Inch long table length with ribbed cast tables
- Parallelogram movement of tables
- Tool set
- Dust hood

Motor Horsepower: 8 HP (3-Phase)
Total Table Length: 2750mm (108 1/4”)
Infeed Table Length: 1550mm (61”)
Outfeed Table Length: 1200m (47 1/4")
Table Width: 520mm (20 1/2”)
Working Height: 845mm
Working Capacity: 2750mm x 520mm (108 1/4” x 20 1/2”)
Max. Depth of Cut: 8mm (5/16”)
Cutter Head Diameter: 120mm (4 3/4")
RPM: 5000
No. of knives: 4
Knife Dimensions: 520mm x 35mm x 3mm
Fence Size: 1200mm x 190mm (47 1/4" x 7 1/2")
Fence Tilt (degrees): 0° – 45°
Dust Hood Diameter: 120mm
Noise Level (dB): 75 db
Overall Dimensions: 119" x 56"
Shipping Weight: 1020kg (2,250 lbs.)
Net Weight: 850 kg (1,875 lbs.)
Electrical Requirements: 230 volt
Dust Extraction: 980 cfm
