SCM Nova SI 4K 1PH / 3PH

SCM Nova SI 4K 1PH / 3PH

by WSI Machinery
Sold out
$0.00
SKU

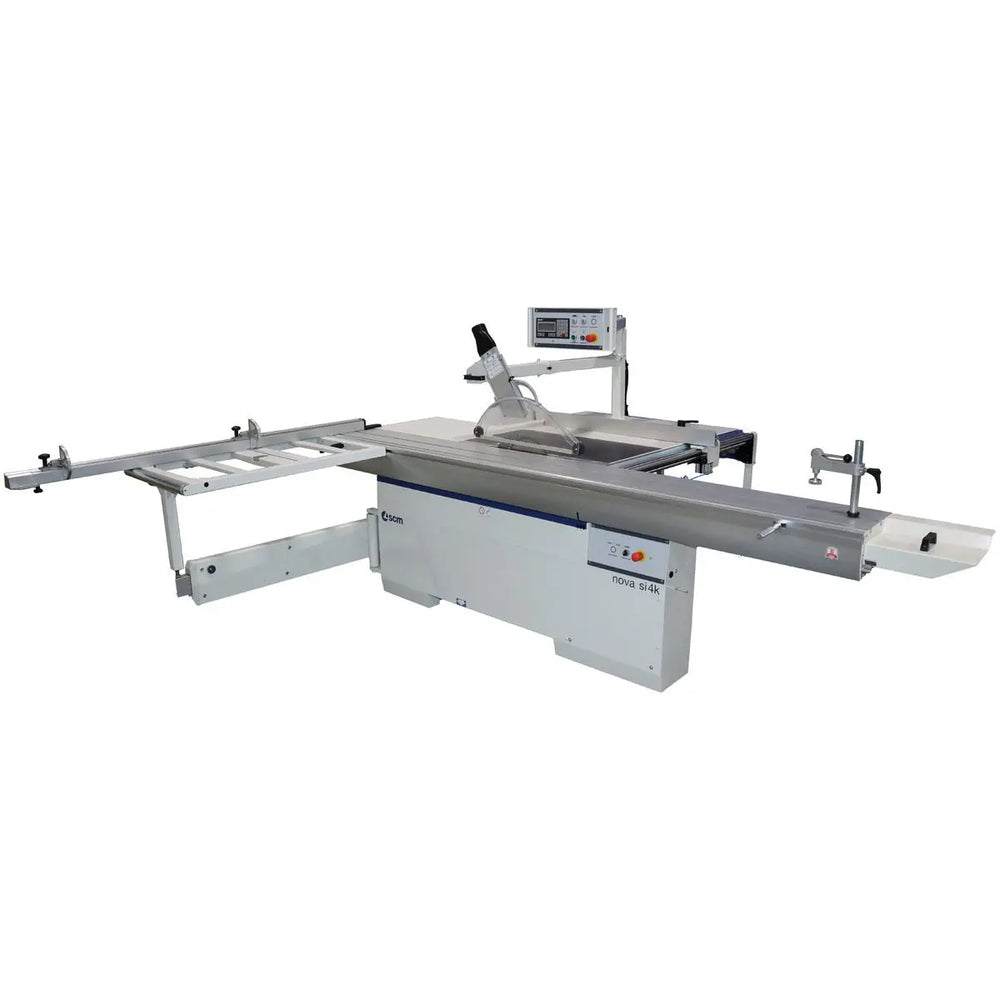

The SCM Nova SI 4K is a professional sliding table saw designed for cabinet makers, furniture manufacturers, joinery workshops, and woodworking professionals. It combines a robust saw unit, precision sliding carriage, and versatile cutting adjustments to deliver accurate and consistent results.

Available in single-phase (1PH) and three-phase (3PH) electrical configurations, the machine can be selected to suit different workshop power requirements. Its tilting blade supports straight and angled cutting, while the optional scoring unit helps produce clean edges on laminated and veneered panels.

The Nova SI 4K is designed for efficient panel sizing, precise rip cutting, and reliable day-to-day woodworking operations.

  • Single-Phase and Three-Phase Versions: Electrical options to suit different workshop installations.

  • Heavy-Duty Saw Unit: Designed for stable operation and accurate cuts.

  • Anodized Aluminium Sliding Carriage: Smooth movement with hardened steel guide rails.

  • Carriage Locking System: Allows the sliding carriage to be locked in different positions.

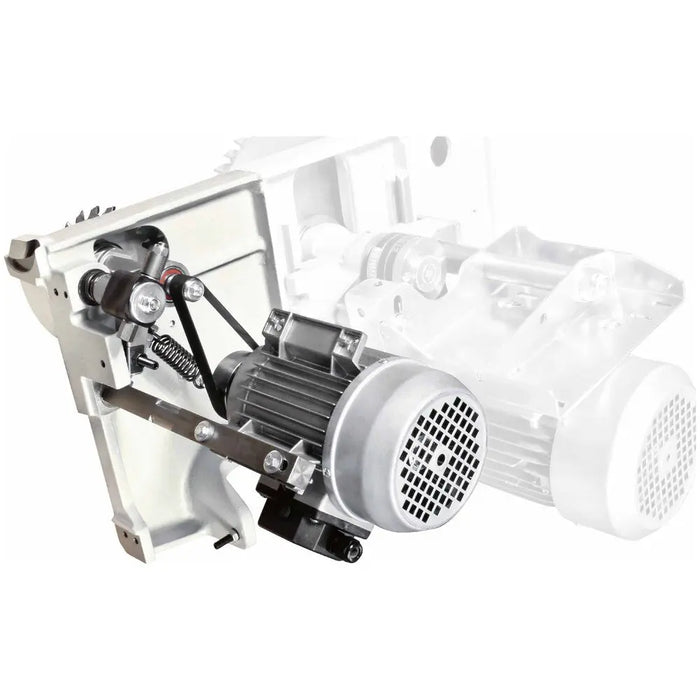

  • Powered Scoring Unit: Available to improve the finish on laminated and veneered materials.

  • Telescopic Squaring Fence: Supports precise panel measurement and positioning.

  • Micrometric Rip Fence: Enables accurate adjustments for longitudinal cuts.

  • Adjustable Blade Assembly: Supports blade height and tilt adjustments.

  • Integrated Safety Systems: Includes an emergency stop, overload protection, main-blade brake, and lockable power switch.

  • Dust Extraction Connections: Supports dust collection at the machine base and overhead guard.

  • SCM Thundercut App: Provides cutting-list management, optimization, and guided cutting support on compatible devices.

  • Optional Accessories: Additional squaring-frame equipment and clamping accessories may be available depending on the configuration.

  • Flexible Power Options: Available in single-phase and three-phase configurations, depending on the selected model and market.

  • Precise Cutting Performance: A rigid saw unit supports accurate and consistent cutting.

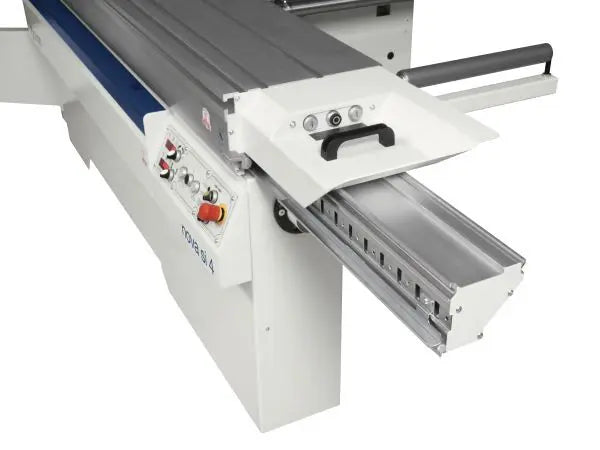

  • Reliable Sliding Carriage: Anodized aluminium carriage with hardened steel guides for smooth movement and secure positioning.

  • 10-Year Carriage Warranty: SCM specifies a 10-year warranty for the carriage sliding system.

  • Clean Panel Finishing: The optional powered scoring unit helps reduce chipping on laminated and veneered boards.

  • Adjustable Blade Tilt: Supports straight and angled cuts from 90° to 46°.

  • Convenient Panel Handling: The squaring frame and telescopic supports assist with positioning and handling panels.

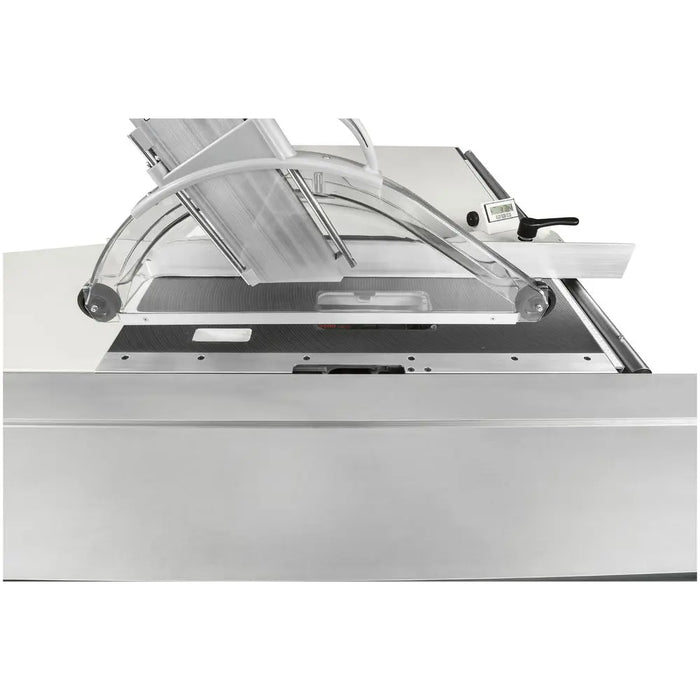

  • Integrated Dust Extraction: The overhead saw guard incorporates a dust extraction connection.

  • Operator Safety: Features include an emergency stop, overload protection, an automatic main-blade brake, and a lockable main power switch.

  • Digital Cutting Assistance: The SCM Thundercut app supports cutting-list optimization and guided cutting sequences on compatible devices.

Technical Specification Details
Brand SCM
Model Nova SI 4K
Machine Type Sliding Table Panel Saw
Electrical Configuration Single Phase (1PH) / Three Phase (3PH)
Main Motor Power — 1PH 4 kW (5.5 HP)
Main Motor Power — 3PH 5 kW at 50 Hz / 6 kW at 60 Hz
Scoring Motor Power 0.75 kW (where equipped)
Main Blade Speed 4000 rpm
Scoring Blade Speed 9200 rpm (where equipped)
Maximum Main Blade Diameter Up to 400 mm with compatible blade kit
Scoring Blade Diameter 120 mm (where equipped)
Blade Tilting Range 90° to 46°
Maximum Cutting Height at 90° 100 mm with 315 mm blade; up to 136 mm with compatible 400 mm blade
Maximum Cutting Height at 46° 71 mm with 315 mm blade; up to 97 mm with compatible 400 mm blade
Squaring Capacity 2250–3800 mm, depending on configuration
Cutting Width on Rip Fence 900–1270 mm
Worktable Material Cast Iron
Sliding Carriage Material Anodized Aluminium Alloy
Carriage Guide System Hardened Steel Guides
Rip Fence Manual or Powered, depending on configuration
Scoring Unit Optional
Dust Extraction Outlet — Base 120 mm
Dust Extraction Outlet — Overhead Guard 80 mm
Digital Cutting Support SCM Thundercut App
Manufacturer SCM Group, Italy
